Description

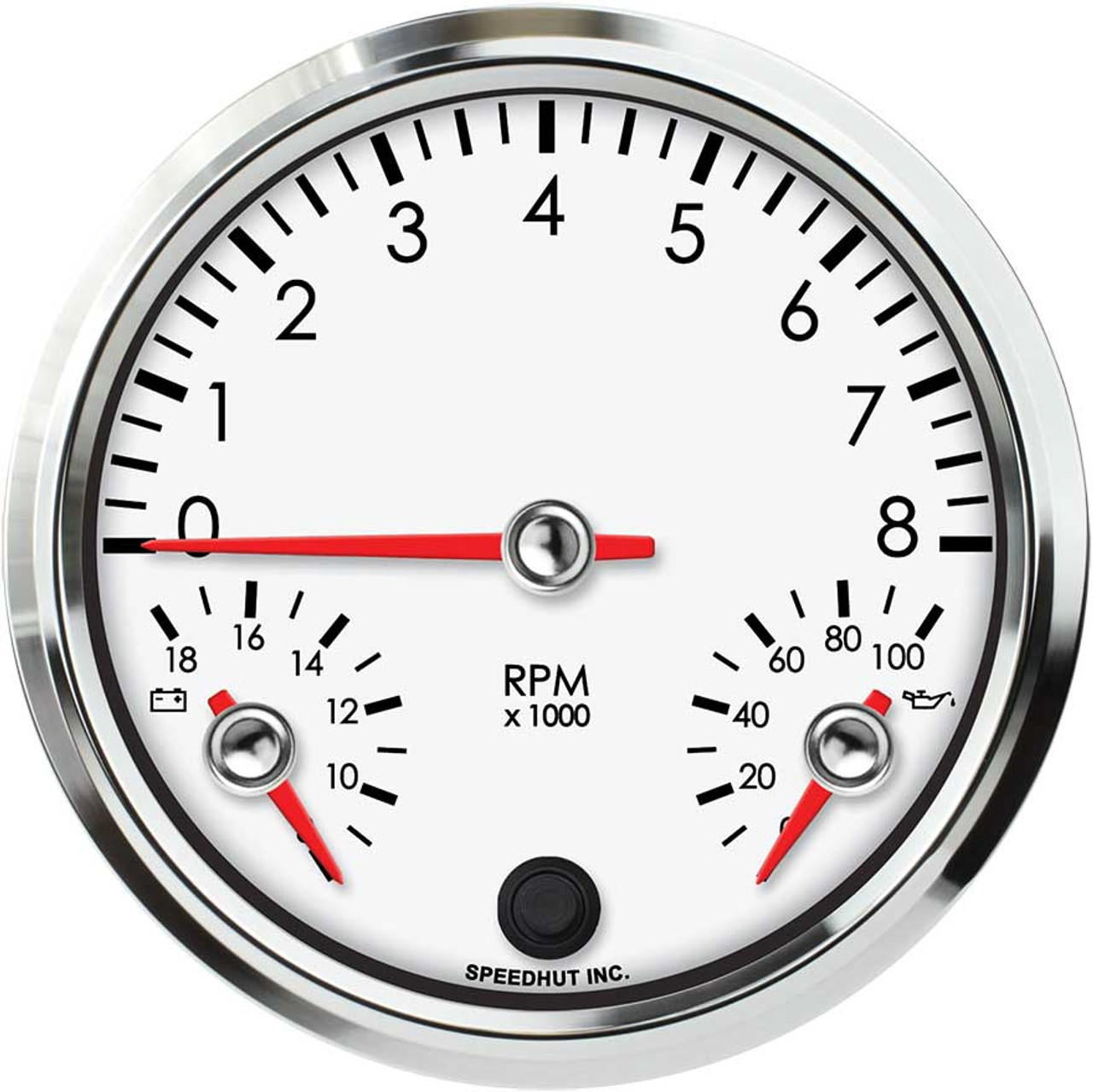

The Speedhut 4.5" 8K Triple Gauge Tachometer/Volt/Oil PSI (L45-TG002-LEG) is a comprehensive engine monitoring solution, integrating a tachometer, voltmeter, and oil pressure gauge into a single, precise instrument. This 4.5-inch gauge provides instant access to critical engine metrics, allowing you to maintain a thorough understanding of your vehicle’s operational status. Its user-focused design ensures that essential information is readily available at a glance, empowering you with complete command over your vehicle’s performance characteristics. The tachometer component is engineered to function with a wide range of engine pulse signals, from 1/2 to 6 pulses per revolution, guaranteeing accurate pointer movement even under demanding driving conditions. Calibrated for compatibility with virtually any engine and tach signal exceeding one volt, its robust construction and straightforward installation process make it an indispensable tool for achieving and sustaining optimal engine efficiency and responsiveness. Equip your vehicle with this essential instrument to enhance your driving experience and gain superior control over your engine’s vital parameters.

KEY FEATURES AND BENEFITS:

• All-in-One Monitoring: Combines three essential gauges (tachometer, voltmeter, oil pressure) into a single unit, saving space and simplifying monitoring.
• Real-Time Data: Provides immediate and continuous readings of critical engine parameters, ensuring you are always aware of your engine’s health.
• User-Friendly Design: Offers clear and easily readable displays, allowing for quick and effortless interpretation of engine data.
• Precise Tachometer: The tachometer operates accurately with various engine pulse signals (1/2 to 6 pulses per revolution), ensuring reliable RPM readings.
• Broad Compatibility: Calibrated to work with most engines and tach signals above one volt, offering versatile application.
• Robust Construction: Built to withstand demanding conditions, ensuring long-term reliability.
• Simple Installation: Designed for an easy and straightforward setup process.
• Enhanced Control: Provides the necessary information to optimize engine performance and responsiveness.

SPECIFICATIONS:

• Gauge Type: Triple Tachometer
• Combo Options: Tachometer with Voltage and Oil Pressure
• Tachometer Range: 0-8,000 RPM
• Voltmeter Range: 8-18 volts
• Oil Pressure Range: 0-100 PSI
• Size: 4.5 inches (4 1/2 inch)
• Hole Size: 4.230 inches (108mm)
• Units: Standard
• Lighting: LED
• Included:
• Pressure Sensor – 100 psi
• 3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks
• Pressure Gauge Wiring Harness (3-Wire Cable) – 3 ft
• 8 ft Tachometer Harness – for LED Lit Gauges (1 Wire 2 Pin Connector)

HOW TO USE:

1. Mount the Gauge: Securely install the 4.5" Classic Triple Gauge into a 4.230-inch (108mm) diameter opening in your vehicle’s dashboard or instrument panel.
2. Connect the Power and Lighting Harness: Attach the provided 3 ft Power & Lighting Harness to the designated terminals on the back of the gauge and connect it to a suitable power source and lighting circuit in your vehicle.
3. Connect the Tachometer Harness: Connect the 8 ft Tachometer Harness to the tachometer signal output from your engine’s control unit or ignition system, ensuring the connection matches the pulse signal of your engine (1/2 to 6 pulses per revolution).
4. Connect the Pressure Sensor Harness: Install the included 100 PSI Pressure Sensor to your engine’s oil pressure port. Connect the 3 ft Pressure Gauge Wiring Harness (3-Wire Cable) between the pressure sensor and the corresponding terminals on the back of the gauge.
5. Connect the Additional Wiring Harness (if applicable): The included 8 ft Wiring Harness (1 Wire 3 Pin Connector) is specifically for AFWB and EL Lit Gauges and may not be required for this LED-lit model. Refer to the specific wiring diagram provided with your gauge if needed.
6. Verify Connections: Double-check all wiring connections to ensure they are secure and correctly matched according to the gauge’s wiring diagram.
7. Test the Gauge: Start your vehicle and observe the gauge readings to confirm that the tachometer, voltmeter, and oil pressure readings are displaying correctly.

BENEFITS OF USING THE SPEEDHUT 4.5" 8K TRIPLE GAUGE TACHOMETER/VOLT/OIL PSI (L45-TG002-LEG):

• Using the Speedhut 4.5" Classic Triple Gauge provides a consolidated and clear view of essential engine data.
• This allows drivers to proactively monitor their engine’s RPM, electrical system voltage, and oil pressure, which are critical indicators of overall engine health and performance.
• By having these three vital readings in one location, drivers can quickly identify potential issues, optimize engine performance, and ensure the longevity of their vehicle.
• The gauge’s accuracy and wide compatibility make it a reliable tool for any vehicle, offering peace of mind and enhanced control over the driving experience.

FEATURES:

• Integrated Three-in-One Design: Consolidates tachometer, voltmeter, and oil pressure readings.
• Bright LED Illumination: Provides clear visibility of the readings, even in varying lighting conditions.
• Wide Tachometer Compatibility: Functions with engines producing 1/2 to 6 pulses per revolution.
• Direct Voltage Monitoring: Displays the vehicle’s electrical system voltage.
• Dedicated Oil Pressure Display: Shows the engine’s oil pressure in PSI.
• Standard Unit Measurement: Readings are displayed in standard units (RPM, volts, PSI).
• Streamlined Installation: Designed for relatively easy mounting and wiring.
