Description

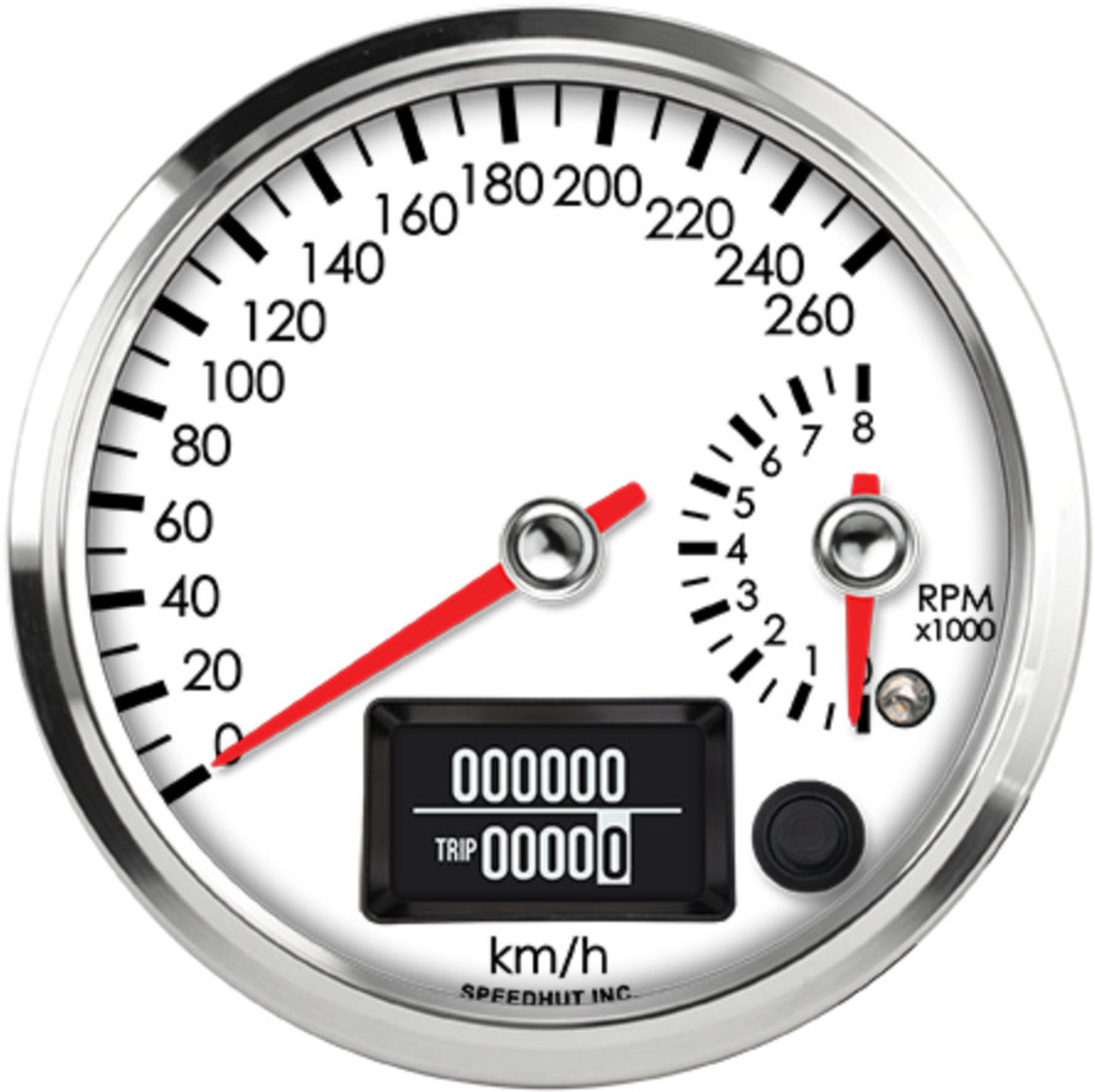

Experience advanced precision and adaptability with the Speedhut 4" 260km/h GPS Speedometer / 8K Tachometer Gauge (R4-DS8-LEG). This powerful gauge uses GPS technology to provide immediate, accurate speed readings, eliminating the complexities of traditional speed sensors. Installation is straightforward, requiring only a 12V power connection and the included waterproof GPS antenna, which can be conveniently placed anywhere in your vehicle. Forget the difficulties of inputting tire sizes or gear ratios – no calibration is needed for the speedometer, ensuring a simple setup. Operating globally with complimentary GPS technology and without any subscription fees, this system solely receives data. Paired with the tachometer, this dynamic combination delivers a complete solution for optimizing your driving experience. Calibrated for compatibility with any engine and tach signal exceeding one volt, this high-tech tachometer guarantees pointer accuracy even in demanding racing conditions, operating efficiently from 1/2 pulse to 6 pulses per revolution. Whether you’re monitoring speed in kilometers per hour or assessing engine RPMs, this dual gauge serves as the ultimate instrument for navigating with complete assurance.

KEY FEATURES AND BENEFITS:

• Provides real-time and accurate speed readings: via GPS technology, removing the need for conventional speed sensors.
• Offers simplified installation: with a requirement of only 12V power and the included GPS antenna.
• Eliminates the need for speedometer calibration: such as inputting tire sizes or gear ratios.
• Functions worldwide: using free GPS technology without any subscription costs.
• Features a tachometer calibrated: to work with any engine and tach signal over one volt (1/2 to 6 pulses per revolution).
• Ensures pinpoint accuracy: in readings through an internal microprocessor.
• Guarantees precise pointer movement: in all racing conditions, thanks to a high-torque stepper motor.
• Facilitates easy mounting: with its slim case and user-friendly spin-lock ring.
• Adds durability and visual appeal: with a solid billet aluminum bezel.
• Offers resilience: against various environmental conditions due to its weather-resistant design.
• Provides long-term assurance: with a Lifetime Warranty.
• Reflects superior quality: and craftsmanship as it is proudly made in America.

SPECIFICATIONS:

• Gauge Type: Dual GPS Speedometer / Tachometer
• Speedometer Range: 0 – 260 km/h (Metric)
• Tachometer Range: 0 – 8,000 RPM
• Size: 4 inch (4")
• Hole Size: 3.95 inches (100mm)
• Included:
• GPS Antenna with 9.8 ft cable and male SMA connector
• 3 ft Power & Lighting Harness
• 8 ft Tachometer Harness (1 Wire 2 Pin Connector)

HOW TO USE:

1. Mount the Gauge: Secure the 4-inch dual gauge in a 3.95-inch (100mm) diameter hole in your vehicle’s dashboard using the spin-lock ring.
2. Connect the Power: Connect the 3 ft Power & Lighting Harness to a 12V power source and ground in your vehicle. This harness also powers the gauge’s illumination.
3. Install the GPS Antenna: Mount the waterproof GPS antenna in a location with a clear view of the sky. Route the 9.8 ft cable to the back of the gauge and connect the male SMA connector.
4. Connect the Tachometer: Connect the 8 ft Tachometer Harness to a suitable tachometer signal wire from your engine’s ignition system or ECU. Ensure the signal voltage is over one volt and falls within the 1/2 to 6 pulses per revolution range.
5. Start Your Vehicle: Once all connections are secure, start your vehicle. The GPS speedometer will automatically acquire a satellite signal and begin displaying your speed. The tachometer will display the engine’s RPM.
6. Observe Readings: Monitor the speedometer for accurate speed in kilometers per hour and the tachometer for engine speed in revolutions per minute. No further calibration is typically required for the speedometer.

BENEFITS OF USING THE SPEEDHUT 4" 260KM/H GPS SPEEDOMETER / 8K TACHOMETER GAUGE (R4-DS8-LEG):

• Experience highly accurate speed readings without the need for mechanical connections or calibration, thanks to GPS technology.
• Enjoy a straightforward installation process, saving time and effort.
• Benefit from worldwide speedometer operation without any subscription fees.
• Gain precise engine RPM information compatible with a wide range of engines.
• Have confidence in the gauge’s accuracy and reliability, even in demanding driving conditions.
• Enhance your vehicle’s interior with a durable and aesthetically pleasing gauge featuring a billet aluminum bezel.
• Receive a product backed by a Lifetime Warranty, ensuring long-term dependability.

FEATURES:

• Leverages satellite-based positioning for immediate and precise velocity indication.
• Offers a hassle-free setup for speed measurement, independent of vehicle-specific sensors.
• Provides unrestricted global operation for speedometer functionality.
• Adapts to various engine configurations with broad compatibility for RPM signals.
• Internally processes data to deliver exceptionally accurate and stable readings.
• Utilizes a high-torque mechanism for swift and precise needle movement.
• Features a low-profile enclosure and a secure mounting mechanism for ease of integration.
• Incorporates a robust metal surround for increased longevity and a premium look.
• Engineered to resist the elements, ensuring consistent performance in diverse conditions.
• Carries a commitment to quality with a comprehensive lifetime guarantee.
• Reflects superior American manufacturing standards.
