Description

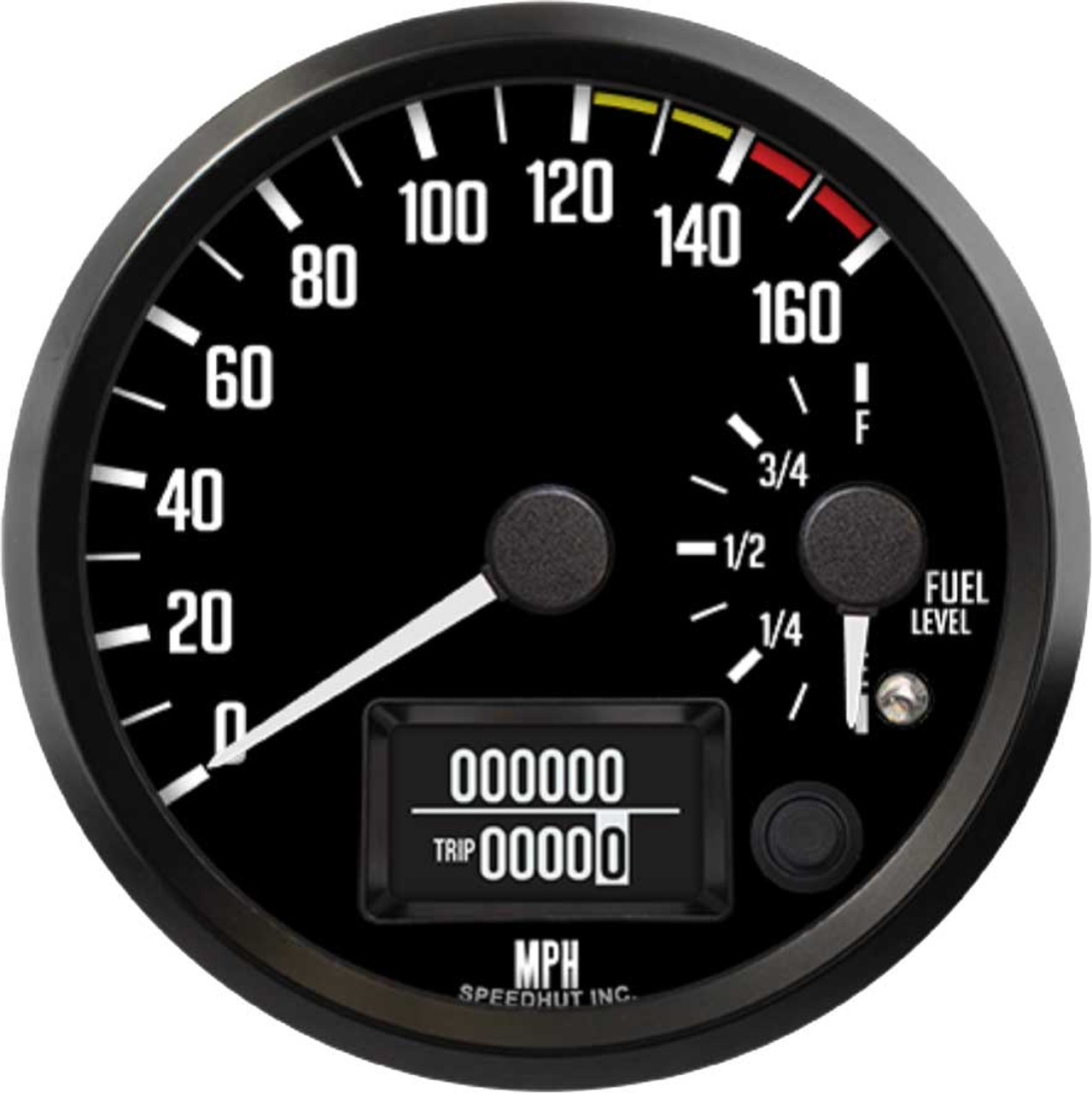

The Speedhut 4" 160mph Dual Gauge GPS Speedometer/Fuel Level (R4-DS3-DATZ) offers a modern and efficient solution for monitoring two critical vehicle functions in a single, compact unit. This gauge combines the accuracy of GPS-based speed measurement with reliable fuel level indication, providing drivers with essential information at a glance. Designed for ease of installation and dependable performance, this dual gauge is a valuable addition to any vehicle.

KEY FEATURES AND BENEFITS:

• Dual Functionality: Integrates a GPS speedometer capable of reading up to 160 MPH and a standard Empty-Full (E-F) fuel level gauge, saving dashboard space and streamlining instrumentation.
• Precise GPS Speedometer: Utilizes GPS technology to deliver accurate, real-time speed readings without the need for mechanical sensors or manual calibration for tire size or gear ratios.
• Effortless Installation: Requires only a 12V power connection and the included waterproof GPS antenna, which can be mounted conveniently anywhere in the vehicle.
• Global Operation: Operates worldwide using free GPS technology, requiring no subscriptions or ongoing fees. The system solely receives data, ensuring privacy.
• Accurate Readings: Features an internal microprocessor that ensures precise and dependable readings for both speed and fuel level.
• Reliable Pointer Movement: Equipped with a high torque stepper motor that guarantees accurate and stable pointer movement, even under demanding driving conditions.

SPECIFICATIONS:

• Gauge Type: Dual GPS Speedometer / Fuel Level
• Speedometer Range: 0 – 160 MPH
• Fuel Level Range: E – F
• Size: 4 inches (100mm)
• Mounting Hole Size: 3.95 inches (100mm)
• Units: Standard (MPH)
• Included:
• Wiring Harness (2-Wire Cable)
• 3 ft Power & Lighting Harness
• GPS Antenna with 9.8 ft cable and male SMA connector

HOW TO USE:

1. Mount the Gauge: Locate a suitable 3.95" (100mm) diameter hole in your dashboard or instrument panel. Insert the gauge and secure it using the spin-lock ring from the back.
2. Connect Power and Ground: Connect the 2-wire power harness to a 12V power source and a suitable ground in your vehicle.
3. Connect Lighting (Optional): If desired, connect the 3 ft power & lighting harness to your vehicle’s lighting circuit to illuminate the gauge when your lights are on.
4. Mount the GPS Antenna: Choose a location for the GPS antenna that has a clear view of the sky. Ensure the mounting surface is clean and secure.
5. Connect the GPS Antenna: Connect the GPS antenna cable (with the male SMA connector) to the corresponding connector on the back of the speedometer gauge.
6. Connect Fuel Level Sender: Connect the appropriate wire from your vehicle’s fuel level sender to the designated input wire on the gauge’s wiring harness. Refer to your vehicle’s wiring diagram for the fuel sender wire.
7. Verify Functionality: Once all connections are made, turn on your vehicle’s ignition. The speedometer should begin to register your speed once a GPS signal is acquired, and the fuel level gauge should indicate the current fuel level.

BENEFITS OF USING THE SPEEDHUT 4" 160MPH DUAL GAUGE GPS SPEEDOMETER/FUEL LEVEL (R4-DS3-DATZ):

• Enhanced Accuracy: Experience precise speed readings thanks to advanced GPS technology, eliminating inaccuracies associated with traditional mechanical speedometers.
• Simplified Installation: Avoid the complexities of installing speed sensors or calibrating for different tire sizes and gear ratios. The GPS setup is straightforward.
• Space Efficiency: Combine two essential gauges into one compact 4-inch unit, freeing up valuable dashboard space.
• Reliable Performance: Count on accurate readings from the internal microprocessor and stable pointer movement provided by the high-torque stepper motor.
• Long-Term Dependability: Benefit from the weather-resistant design and the peace of mind offered by a Lifetime Warranty.
• Quality Assurance: Enjoy the craftsmanship and high standards of a product proudly made in America.

FEATURES:

• Simple Mounting: The slim case design and convenient spin-lock ring facilitate easy and secure mounting in a 3.95" (100mm) diameter hole.
• Enhanced Aesthetics and Durability: Features a solid billet aluminum bezel that adds to the gauge’s visual appeal and provides increased durability.
• Weather Resistance: Designed to withstand various environmental conditions, ensuring long-lasting performance.
• Peace of Mind: Backed by a Lifetime Warranty, reflecting the product’s quality and dependability.
• Quality Craftsmanship: Proudly made in America, ensuring high standards of manufacturing and material quality.
