Description

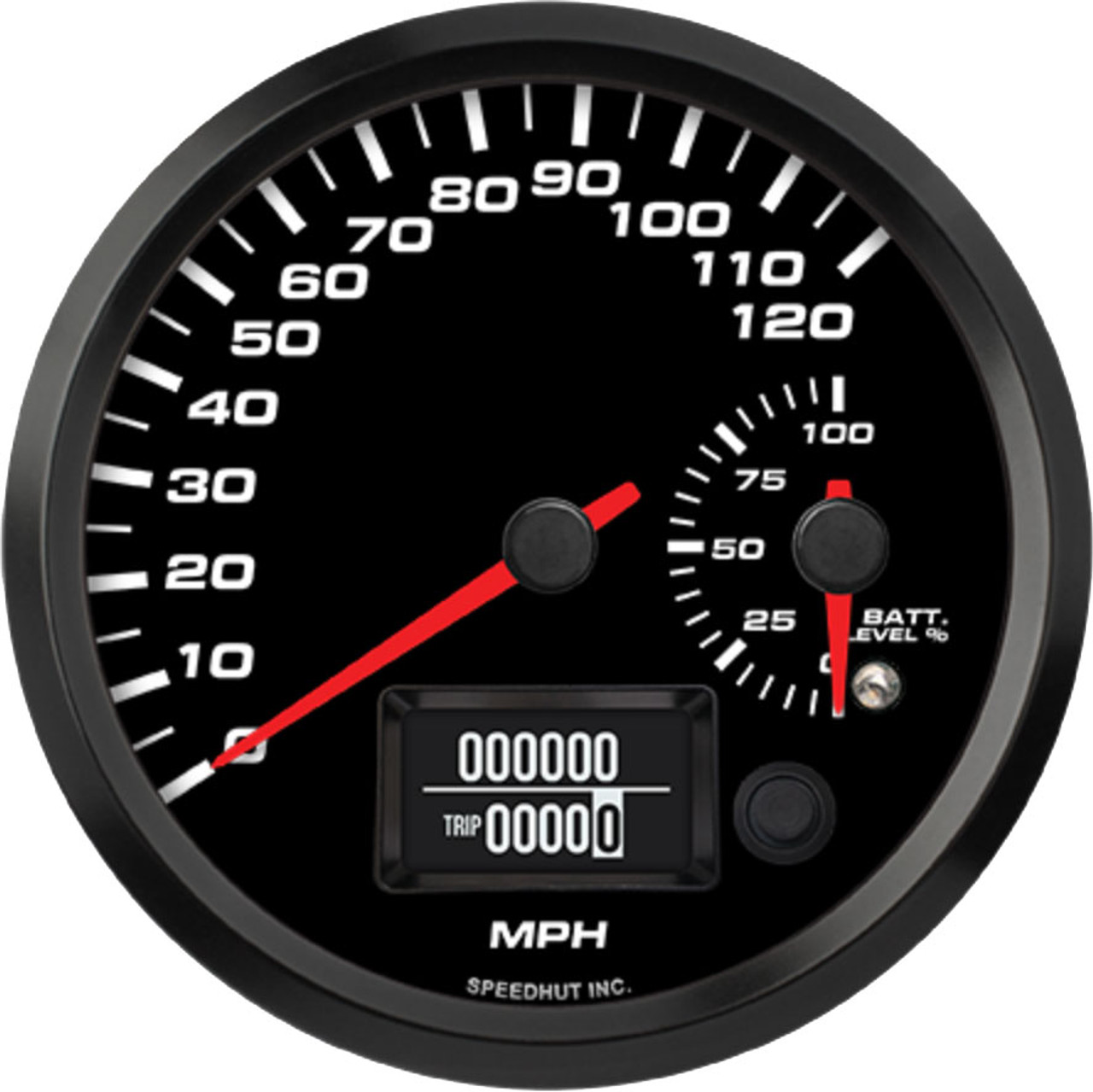

The Speedhut 4-1/2" EV Orion 120mph Speedom/BattLevel Gauge (FOR45-DS1-EV) integrates essential monitoring for your electric vehicle into a single, clear display. This gauge provides accurate speed readings up to 120 mph and precise battery level or State of Charge (SOC) indication from 0 to 100%. Designed for seamless integration with EVs utilizing a CAN-Bus system operating at a 500K baud rate and specifically compatible with Orion, Zero EV, and Thunderstruck control units, this dual gauge offers a reliable and convenient way to stay informed about your EV’s performance and energy status. For added safety, it includes a built-in warning light that activates when your battery level falls below 15%.

KEY FEATURES AND BENEFITS:

• Dual Functionality: Combines a speedometer (0-120 mph) and battery level/SOC gauge (0-100%) in one unit.
• CAN-Bus Integration: Utilizes CAN-Bus technology (500K baud rate) for direct and accurate data from compatible EV systems.
• System Compatibility: Specifically designed for integration with Orion, Zero EV, and Thunderstruck control units.
• Low Battery Warning: Features a built-in warning light that illuminates when the battery level drops below 15%.
• Optional Indicators: Offers optional 12 Volt activated turn signal and high beam indicators for comprehensive vehicle information.
• Real-Time Feedback: Provides real-time and precise readings, enhancing driver awareness and confidence.
• Custom Appearance: Customizable appearance options allow you to match the gauge to your vehicle’s interior style.
• Warranty Coverage: Backed by a strong warranty, ensuring long-term reliability.

SPECIFICATIONS:

• Gauge Type: Speedometer / Battery Level (SOC)
• Signal Type: CAN-Bus (500K baud rate)
• Speedometer Range: 0-120 MPH
• Battery Level Range: 0-100%
• Size: 4 1/2 inch
• Hole Size: 4.230 inches (108mm)
• Standard or Metric: Standard (MPH)
• Optional Indicators: 12 Volt Activated Turn Signals, High Beam
• Included: EV CAN Harness, 3 ft Power & Lighting Harness, EV CAN Jumper Harness

HOW TO USE:

1. Connect the EV CAN Harness: Plug the provided EV CAN harness into the designated CAN-Bus port on your electric vehicle’s control system (compatible with Orion, Zero EV, or Thunderstruck).
2. Connect the Gauge: Connect the other end of the EV CAN harness to the corresponding port on the back of the Speedhut Dual Gauge.
3. Connect the Power and Lighting Harness: Attach the 3 ft Power & Lighting Harness to the power and ground connections in your vehicle’s electrical system, as well as to the lighting circuit if desired for illumination. Connect the other end to the appropriate connector on the gauge.
4. Connect the EV CAN Jumper Harness: Use the EV CAN Jumper Harness as needed in specific configurations or for diagnostics within the CAN-Bus network.
5. Mount the Gauge: Insert the 4-1/2" gauge into a 4.230" (108mm) diameter hole in your dashboard and secure it using the spin-lock ring.
6. Verify Functionality: Power on your electric vehicle and ensure the gauge displays accurate speed and battery level readings. The low battery warning light should activate if battery level is below 15%.

BENEFITS OF USING THE SPEEDHUT 4-1/2" EV ORION 120MPH SPEEDOM/BATTLEVEL GAUGE (FOR45-DS1-EV):

• Enhanced Awareness: Provides clear and immediate feedback on your vehicle’s speed and remaining battery charge, allowing for more informed driving decisions.
• Simplified Monitoring: Combines two crucial data points into a single, easy-to-read display, reducing dashboard clutter and improving focus.
• Increased Safety: The integrated low battery warning light alerts you proactively, helping to prevent unexpected power loss.
• Seamless Integration: Designed specifically to work with compatible EV systems, ensuring accurate and reliable data without the need for additional sensors for speed.
• Personalized Style: Offers a wide range of customization options to match your vehicle’s interior and personal preferences.

FEATURES:

• Integrated Speedometer: Capable of reading up to 120 miles per hour.
• Battery SOC Display: Displays battery level or State of Charge from 0 to 100 percent.
• Turn Signal Integration: Option to connect to 12V turn signal indicators for visual confirmation of signaling.
• High Beam Indicator: Option to connect to a 12V high beam indicator to show when high beams are active.
• Large Diameter: Designed with a 4 1/2 inch diameter for easy dashboard integration.
• Secure Mounting: Utilizes a spin-lock mounting system for secure installation.
• Customizable Design: Offers a variety of aesthetic customizations for the dial face, colors, and bezel.
