Description

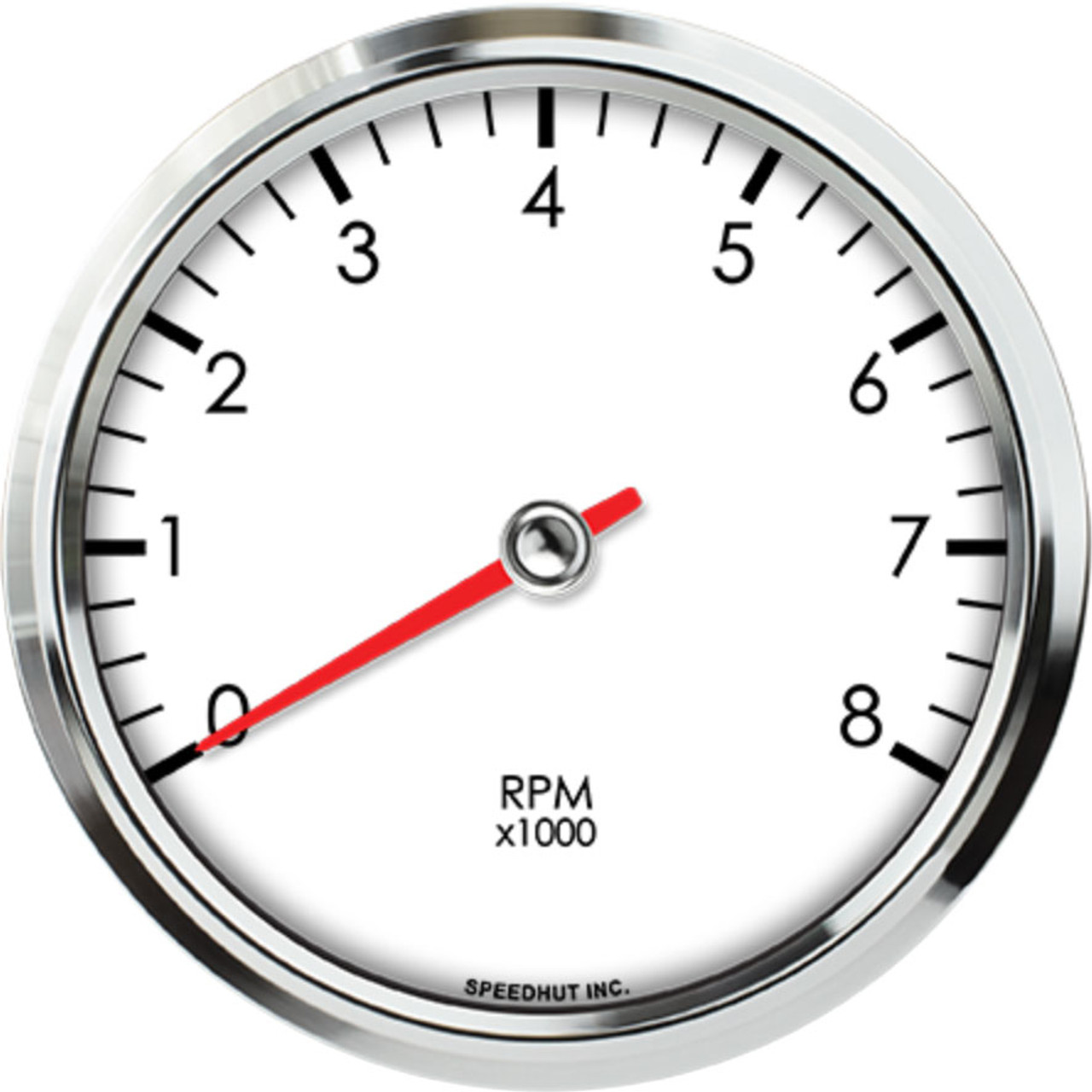

The Speedhut 4-1/2" 8K RPM Dash Mount Tachometer (L45-TC3-LEG) provides precise and reliable engine speed measurement for a wide range of vehicles. Designed for seamless integration into your dashboard, this gauge offers clear and accurate readings up to 8,000 RPM. Its compatibility with standard spark plug ignition systems and engines with 1 to 12 cylinders makes it a versatile choice for various applications. The included mounting hardware and wiring harnesses ensure a straightforward installation process.

KEY FEATURES AND BENEFITS:

• Accurate RPM Measurement: Precisely monitors engine revolutions per minute up to 8,000 RPM, providing crucial data for optimal engine performance and preventing over-revving.
• Wide Engine Compatibility: Works effectively with engines having 1 to 12 cylinders, offering broad applicability across different vehicle types.
• Standard Ignition System Support: Specifically designed for vehicles utilizing standard spark plug ignition systems, ensuring reliable signal acquisition.
• Convenient Dash Mounting: The 4-1/2 inch gauge is designed for easy installation into a standard dashboard opening.
• Included Mounting Hardware: Comes with a gauge mounting ring, simplifying the installation process and ensuring a secure fit.
• Included Wiring Harnesses: Ships with an 8 ft tachometer harness (1 wire, 2 pin connector) and a 3 ft power & lighting harness, providing the necessary connections for operation.

SPECIFICATIONS:

• Gauge Type: Tachometer
• Tachometer Signal Type: Standard spark plug ignition systems
• Compatibility: 1-12 cylinder engines
• Range: 0-8,000 RPM
• Size: 4 1/2 inch (114mm)
• Hole Size: 4.250 inches (108mm)
• Internal Shift Light: No
• Mount Style: Dash Mount
• Ships With:
• 8 ft Tachometer Harness (1 Wire 2 Pin Connector)
• 3 ft Power & Lighting Harness
• Gauge Mounting Ring

HOW TO USE:

1. Preparation: Disconnect the vehicle’s negative battery terminal for safety.
2. Mounting: Locate a suitable 4.250" (108mm) diameter opening on your dashboard. Insert the tachometer into the opening from the front. Secure it from the back using the provided gauge mounting ring.
3. Wiring – Power and Lighting: Connect the 3 ft power & lighting harness. Typically, this involves connecting a wire to a 12V accessory power source (switched with the ignition), a wire to ground, and a wire to your vehicle’s lighting circuit (for illumination when headlights are on). Refer to the specific wiring diagram included with the product.
4. Wiring – Tachometer Signal: Connect the 8 ft tachometer harness (single wire) to the tachometer signal source in your vehicle. This connection point depends on your ignition system type (e.g., negative coil terminal on older systems, a specific trigger wire on coil packs or coil-on-plug systems, or the designated tach output from the ECU). Consult your vehicle’s service manual for the correct tachometer signal wire location.
5. Final Steps: Once all wiring is complete and secure, carefully reconnect the vehicle’s negative battery terminal. Start your engine to verify the tachometer is functioning correctly and displaying the engine’s RPM. Calibration for the correct pulses per revolution (PPR) might be necessary based on your engine type; refer to the Speedhut instructions for this process.

BENEFITS OF USING THE SPEEDHUT 4-1/2" 8K RPM DASH MOUNT TACHOMETER (L45-TC3-LEG):

• Enhanced Engine Awareness: Provides a clear and immediate visual indication of your engine’s RPM, allowing you to monitor performance and avoid potentially damaging over-revving.
• Improved Driving Experience: Offers valuable feedback for smoother gear changes and optimized engine operation, contributing to a more controlled and efficient driving experience.
• Easy Integration: The dash mount design and included hardware simplify the installation process, allowing for straightforward integration into your vehicle’s instrument panel.
• Broad Compatibility: Designed to work with a wide range of engines and standard ignition systems, making it a versatile choice for various automotive applications.
• Complete Installation Package: The inclusion of necessary wiring harnesses and the mounting ring ensures you have the essential components for a successful setup.

FEATURES:

• Displays engine speed up to 8,000 revolutions per minute.
• Designed to fit a standard 4.5-inch dashboard opening.
• Specifically engineered for use with traditional spark plug ignition systems.
• Compatible with engines having anywhere from one to twelve cylinders.
• Mounts securely to the dashboard using the provided ring.
• Includes an 8-foot harness for the tachometer signal connection.
• Comes with a 3-foot harness for power and illumination wiring.
