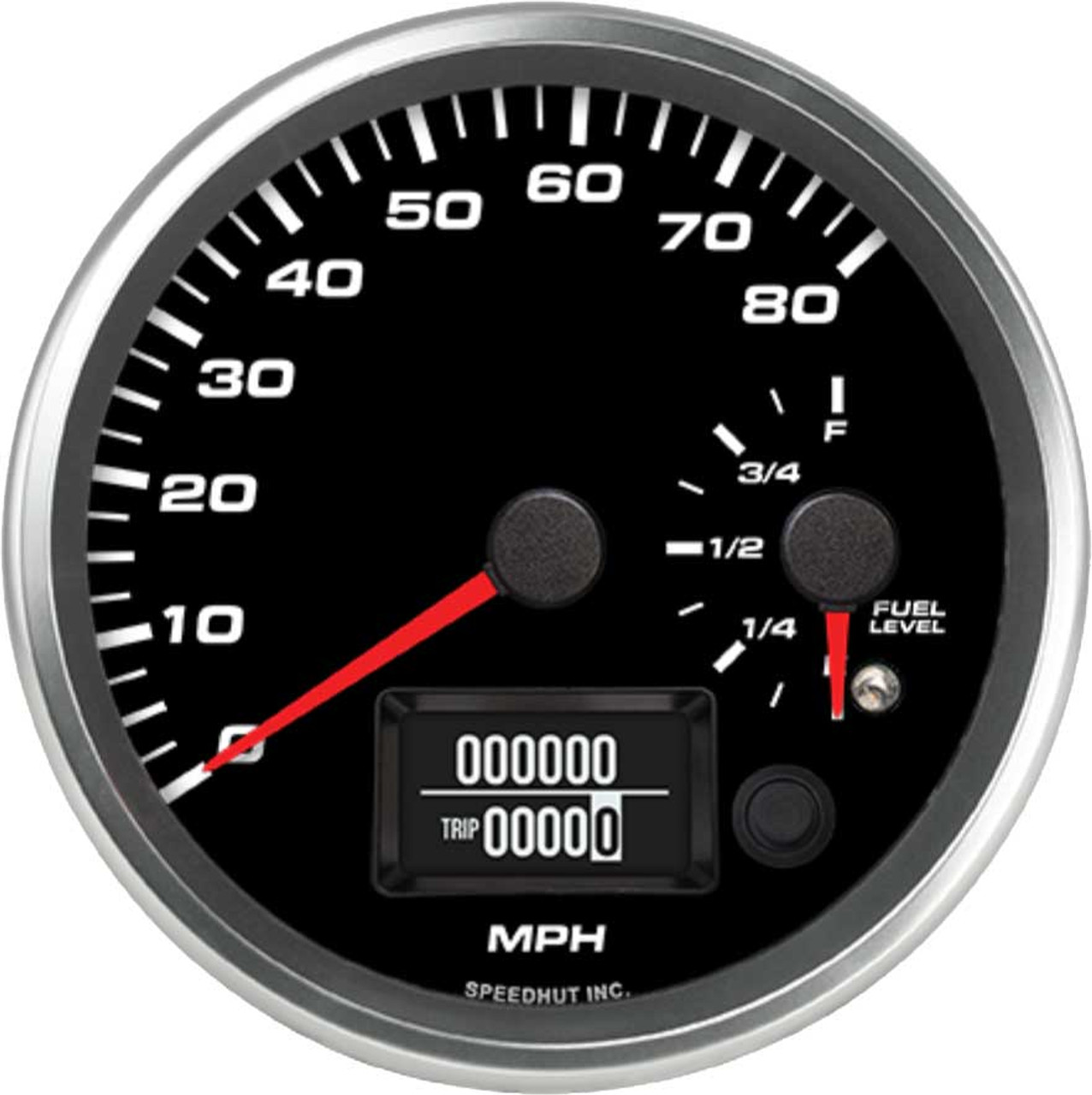

Experience enhanced driving awareness with the Speedhut 4-1/2" 80 MPH GPS Speedometer/Fuel Level Gauge (R45-DS10-REV). This integrated dual gauge provides precise speed readings using advanced GPS technology, eliminating the need for conventional speed sensors. Alongside this, it offers a reliable fuel level display, ensuring you have all the essential information in one clear and easy-to-read unit. Designed for straightforward installation and dependable performance, this gauge is a valuable addition to any vehicle.

KEY FEATURES AND BENEFITS:

• Accurate GPS Speedometer: Delivers real-time speed readings from 0 to 80 mph using GPS, ensuring accuracy without the complexities of traditional sensor setups or calibration for tire sizes and gear ratios.
• Simple Installation: Requires only a 12V power connection and the included waterproof GPS antenna, which can be mounted conveniently.
• Worldwide Operation: Functions globally with free GPS technology, requiring no subscriptions or ongoing fees. It solely receives data for speed and location.
• Programmable Fuel Level Gauge: Compatible with most fuel level sensors (0-300 ohms) and offers built-in presets and manual calibration for diverse applications.
• Odometer and Trip Functions: Provides essential mileage tracking with both a standard odometer and a resettable trip meter.
• Performance Metrics: Displays valuable performance data such as 0-60 mph time and distance, as well as 1/4 mile time and speed.

SPECIFICATIONS:

• Gauge Type: Dual GPS Speedometer and Fuel Level Gauge
• Speedometer Range: 0-80 MPH (Standard Units)
• Fuel Level Range: Empty (E) to Full (F)
• Gauge Size: 4-1/2 inch
• Mounting Hole Size: 4.20 inch (107mm)
• Power Requirement: 12V DC
• Included:
  • GPS Antenna with 9.8 ft long cable and male SMA connector
  • 3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks
  • Wiring Harness (2-Wire Cable)

HOW TO USE:

1. Mount the Gauge: Locate a suitable flat surface on your dashboard or instrument panel and drill a 4.20-inch (107mm) diameter hole. Insert the gauge into the hole and secure it using the spin-lock ring from the back.
2. Connect Power and Ground: Connect the red wire from the 3 ft Power & Lighting Harness to a 12V positive power source that is switched with the ignition. Connect the black wire to a reliable ground.
3. Install the GPS Antenna: Mount the waterproof GPS antenna in a location with a clear view of the sky. Route the antenna cable to the back of the gauge and connect the male SMA connector to the corresponding port on the gauge.
4. Connect Fuel Level Sensor: Connect the two wires from your fuel level sensor to the appropriate wires on the 2-Wire Cable harness. Consult the wiring diagram provided with the gauge for correct connections based on your specific fuel sender.
5. Initial Power Up: Once all connections are made, turn on your vehicle’s ignition. The gauge should power up, and the speedometer will begin acquiring a GPS signal. The fuel level gauge will display the current fuel level based on your sender.
6. GPS Acquisition: Allow a short period for the GPS to acquire satellite signals. Once locked, the speedometer will display your current speed.
7. Fuel Level Calibration (if needed): If the fuel level reading is not accurate, you may need to calibrate the gauge. Refer to the Speedhut manual for instructions on selecting preset ranges or performing manual calibration for your specific fuel level sensor.

BENEFITS OF USING THE SPEEDHUT 4-1/2" 80 MPH GPS SPEEDOMETER/FUEL LEVEL GAUGE (R45-DS10-REV):

• Provides precise and dependable readings for speed and fuel levels.
• Eliminates the complexities and inaccuracies of mechanical or sensor-driven speedometers with GPS-based speed measurement.
• Integrated fuel level gauge reduces the need for multiple gauges, simplifying your dashboard layout.
• Easy installation process that saves time and effort.
• Robust construction ensures long-lasting performance and reliability.
• Tracks performance data, such as acceleration and quarter-mile times, for enhanced vehicle monitoring.
• Displays directional information to help with navigation and awareness on the road.
• Features a GPS-synchronized clock for accurate timekeeping.
• Increases driving confidence by providing essential vehicle data at a glance.

FEATURES:

• Direction and Altitude: Shows the current direction heading and elevation, adding useful information for navigation and awareness.
• Accurate GPS Clock: Features a precise time display synchronized via GPS.
• Durable Construction: Boasts a solid billet aluminum bezel and a weather-resistant design, ensuring longevity and reliable performance in various conditions.
• Easy Mounting: The slim case and spin-lock ring facilitate a simple and secure installation into a 4.20-inch (107mm) hole.
• Peace of Mind: Comes with a Lifetime Warranty on the gauge electronics and a 5-year warranty on hardware (for purchases since Jan 1, 2006), reflecting its quality and dependability.
• American Made: Proudly manufactured in the USA, guaranteeing high standards of craftsmanship.
