Description

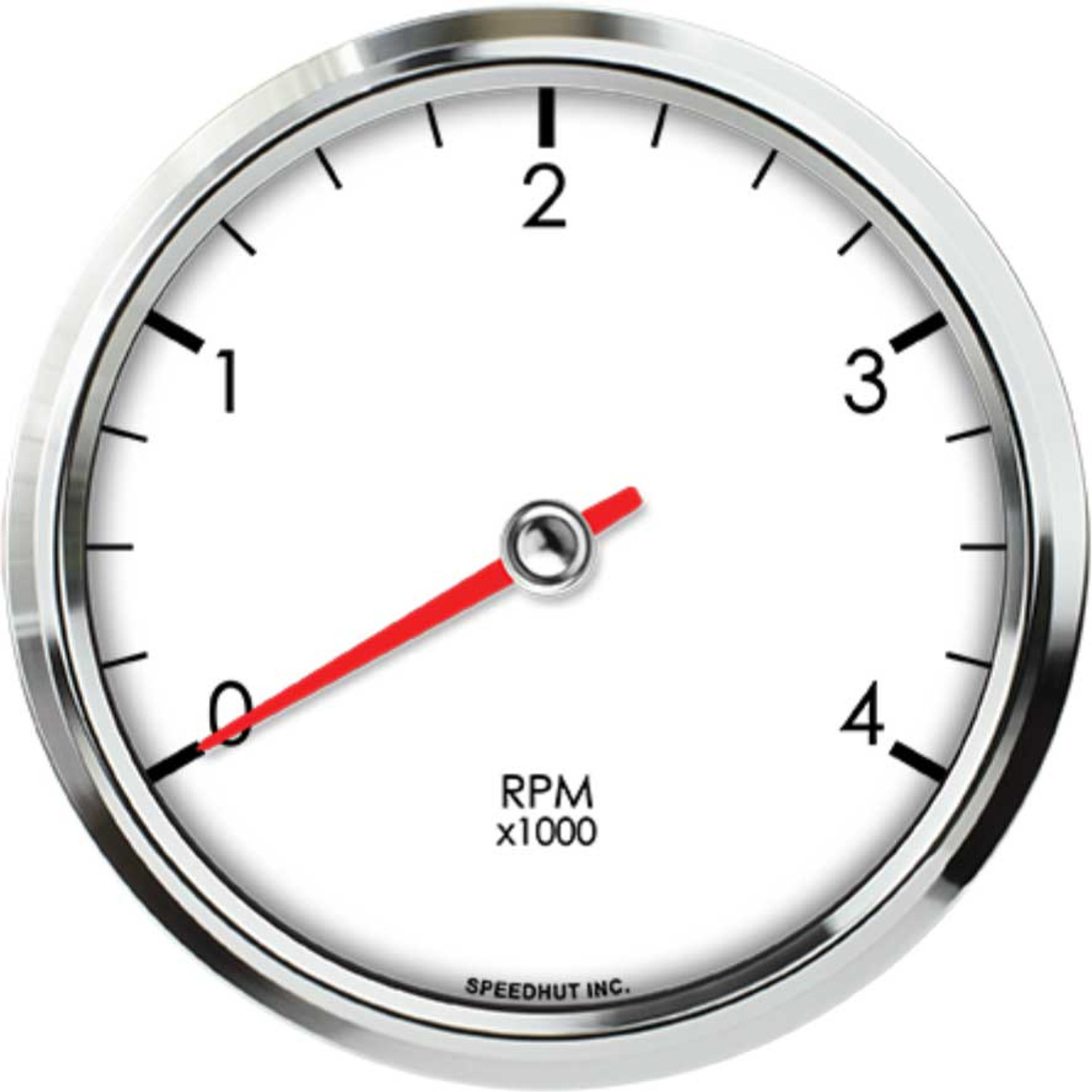

The Speedhut 4-1/2" 4K RPM Dash Mount Tachometer (L45-TC1-LEG) is an excellent choice for monitoring the engine speed of your vehicle. Designed with a classic aesthetic, this gauge seamlessly integrates into your dashboard while providing precise and dependable readings. Its compatibility with a wide range of engines and straightforward installation make it a valuable addition for any automotive enthusiast needing accurate RPM information.

KEY FEATURES AND BENEFITS:

• This 4 1/2 inch (114mm) tachometer displays engine speeds from 0 to 4,000 RPM. It is specifically engineered for vehicles utilizing standard spark plug ignition systems and is compatible with engines having between 1 and 12 cylinders.
• The gauge is designed for dash mounting and includes all necessary hardware for a secure installation.
• The included power and tachometer harnesses simplify the wiring process.

SPECIFICATIONS:

• Standard or Metric: Standard
• Gauge Type: Tachometer
• Tachometer Signal Type: Standard spark plug ignitions systems
• Compatibility: 1-12 cylinder engines
• Range: 4,000 RPM
• Size: 4 1/2 inch
• Hole Size: 4.250 inches (108mm)
• Internal Shift Light: No
• Mount Style: Dash Mount
• Gauge Mounting Ring: Included
• Ships With:
• 3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks
• 8 ft Tachometer Harness – for LED Lit Gauges (1 Wire 2 Pin Connector)

HOW TO USE:

• Prepare the Mounting Location: Identify a suitable flat surface on your dashboard where the 4.250-inch (108mm) diameter hole can be drilled. Ensure there is adequate clearance behind the dashboard for the gauge and wiring.
• Drill the Mounting Hole: Carefully drill the required 4.250-inch (108mm) diameter hole in the prepared location.
• Connect the Power Harness: Connect the 3 ft Power & Lighting Harness to a suitable power source in your vehicle. Typically, this involves connecting to a 12V power supply, ground, and the vehicle’s lighting circuit if you desire the gauge to illuminate with your headlights.
• Connect the Tachometer Harness: Locate the tachometer signal wire from your vehicle’s ignition system (usually connected to the negative side of the ignition coil or an equivalent tachometer output). Connect this wire to the appropriate wire on the 8 ft Tachometer Harness (1 Wire 2 Pin Connector).
• Mount the Gauge: Insert the tachometer into the drilled hole from the front of the dashboard. Secure it using the included gauge mounting ring from the back of the dashboard, tightening it until the gauge is firmly in place.
• Connect the Harnesses to the Gauge: Plug the power and lighting harness and the tachometer harness into the corresponding connectors on the back of the Speedhut tachometer.
• Test the Gauge: Start your vehicle and observe the tachometer to ensure it is receiving a signal and displaying the engine RPM correctly. Also, check that the illumination function works when the vehicle’s lights are turned on.

BENEFITS OF USING THE SPEEDHUT 4-1/2" 4K RPM DASH MOUNT TACHOMETER (L45-TC1-LEG):

• Having a clear and accurate display of your engine’s revolutions per minute offers several advantages. It allows you to monitor engine performance in real-time, ensuring you stay within the optimal operating range.
• This can contribute to better fuel efficiency and help prevent potential engine damage from over-revving.
• The straightforward installation process, thanks to the included harnesses and mounting ring, makes it accessible for both DIY enthusiasts and professional installers.
• The gauge’s compatibility with a wide range of cylinder configurations (1-12) and standard ignition systems makes it a versatile choice for many vehicles.

FEATURES:

• Provides precise readings of engine speed up to 4,000 RPM.
• Designed for direct mounting into your vehicle’s dashboard.
• Specifically compatible with standard spark plug ignition systems.
• Suitable for engines with 1, 2, 3, 4, 5, 6, 8, 10, or 12 cylinders.
• Large 4 1/2 inch display for easy readability.
• Requires a 4.250-inch (108mm) diameter opening for installation.
• Comes with a spin-lock ring to securely fasten the gauge to the dashboard.
• Includes a dedicated 3-foot power and lighting wire harness.
• Supplied with an 8-foot tachometer signal input wire harness.
