Description

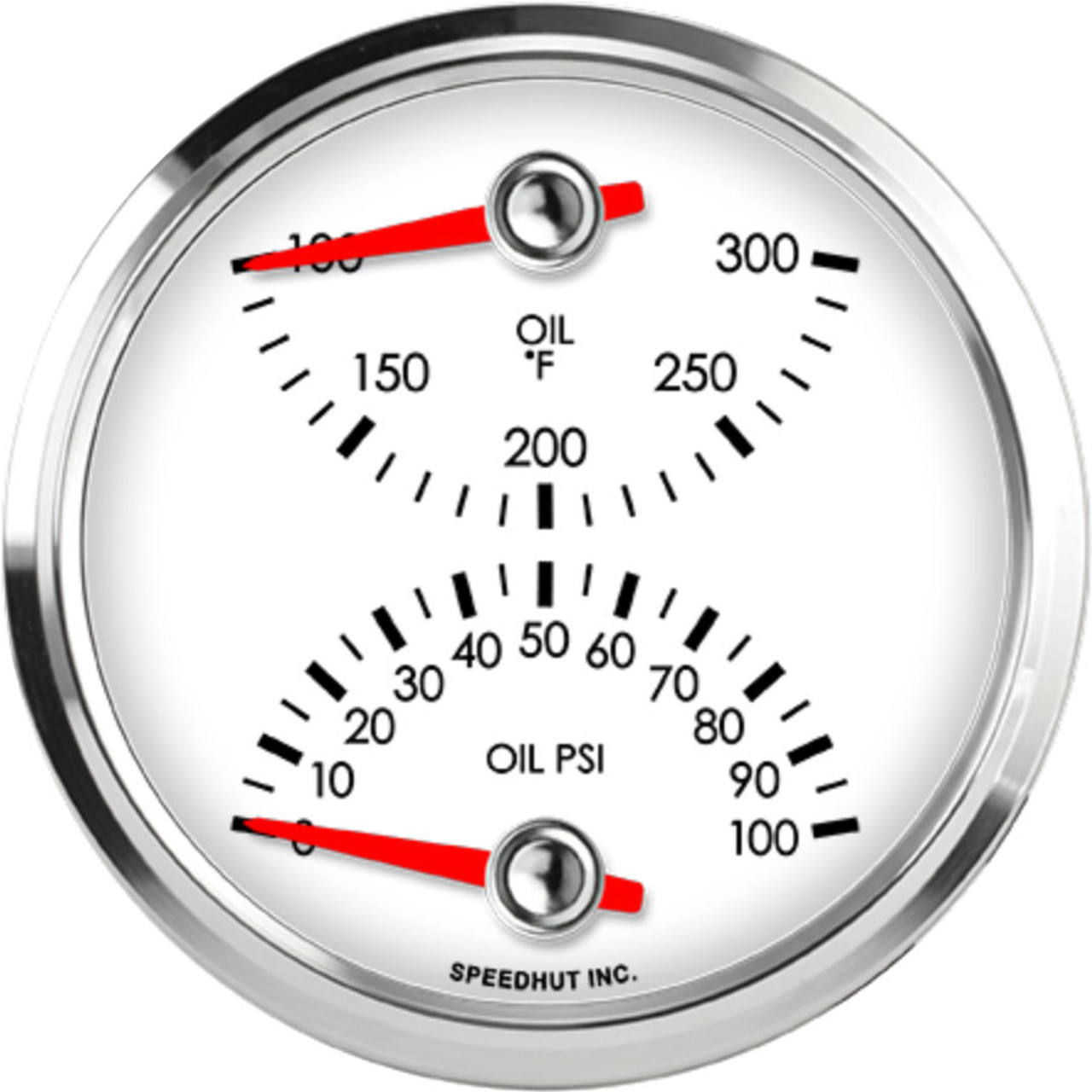

The Speedhut 3-3/8" Oil Temp / Oil Pressure Gauge (top/bot) (L3-DG6-LEG) offers a convenient and reliable way to monitor two critical aspects of your engine’s performance in a single, space-saving unit. This gauge displays both oil temperature and oil pressure readings, allowing you to stay informed about your engine’s lubrication and thermal health. Designed for ease of installation and accurate readings, this gauge is a valuable addition to any vehicle where engine monitoring is essential.

KEY FEATURES AND BENEFITS:

• Dual Functionality: Measures and displays both oil temperature (100-300°F) and oil pressure (0-100 psi) simultaneously, providing comprehensive engine monitoring.
• Clear and Easy-to-Read Display: The 3-3/8" size ensures good visibility of both temperature and pressure readings.
• Standard Units: Displays readings in commonly understood units (Fahrenheit for temperature and PSI for pressure).
• Complete Installation Kit: Ships with all necessary sensors (oil temperature and pressure), wiring harnesses, and a mounting ring, simplifying the installation process.
• LED Illumination: Features an LED-lit display for enhanced visibility in various lighting conditions, powered by the included 3 ft power and lighting harness.
• Direct Fit: The 3.375" (86mm) mounting hole size allows for straightforward installation in compatible dashboards or gauge pods.

SPECIFICATIONS:

• Gauge Type: Dual Gauge (Oil Temperature / Oil Pressure)
• Temperature Range: 100-300 °F
• Pressure Range: 0-100 psi
• Units: Standard (Fahrenheit / PSI)
• Size: 3 3/8 inch
• Mounting Hole Size: 3.375" (86mm)
• Warning Light: No
• Mounting Ring: Included
• Included:
  • 3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks
  • Pressure Gauge Wiring Harness (3-Wire Cable)
  • Pressure Sensor – 100 psi
  • Speedhut Temperature Sensor
  • Temperature Gauge Wiring Harness (2-Wire Cable)

HOW TO USE:

1. Mount the Gauge: Locate a suitable 3.375" (86mm) diameter hole in your dashboard or gauge pod. Insert the gauge and secure it using the included mounting ring.
2. Install the Pressure Sensor: Identify an appropriate port on your engine’s oil system for the pressure sensor. Thread the included pressure sensor into this port.
3. Install the Temperature Sensor: Locate a suitable port on your engine’s oil system (typically the oil pan or filter housing) for the temperature sensor. Thread the included temperature sensor into this port.
4. Connect the Wiring Harnesses:
   • Connect the 3-wire cable of the Pressure Gauge Wiring Harness to the pressure sensor and the corresponding terminals on the back of the gauge.
   • Connect the 2-wire cable of the Temperature Gauge Wiring Harness to the temperature sensor and the corresponding terminals on the back of the gauge.
   • Connect the 3 ft Power & Lighting Harness to a suitable 12V power source (ignition switched is recommended) and ground, and then to the power and illumination terminals on the back of the gauge.
5. Secure Wiring: Ensure all wiring is routed safely and securely, away from moving parts and heat sources.
6. Test the Gauge: Start your vehicle and observe the gauge readings to ensure proper installation and functionality. The gauge should display the current oil temperature and pressure.

BENEFITS OF USING THE SPEEDHUT 3-3/8" OIL TEMP / OIL PRESSURE GAUGE (TOP/BOT) (L3-DG6-LEG):

• Using this dual gauge allows you to proactively monitor two critical aspects of your engine’s health: oil temperature and pressure.
• Helps identify overheating issues early, preventing potential engine damage.
• Monitors oil pressure to detect lubrication issues and avoid costly engine failure.
• Saves space on your dashboard by combining two gauges into one.
• Provides vital information at a glance for improved vehicle safety and performance.

FEATURES:

• Integrated Dual Display: Presents both oil temperature and oil pressure readings in one compact unit for efficient monitoring.
• Wide Measurement Ranges: Accurately measures oil temperature from 100 to 300 degrees Fahrenheit and oil pressure from 0 to 100 PSI.
• Single Mounting Solution: Requires only one 3.375" (86mm) hole for installation, simplifying the setup process.
• Comprehensive Wiring Included: Comes with specific wiring harnesses for both the pressure and temperature sensors, as well as power and illumination.
• Dedicated Sensors Provided: Includes both the necessary pressure and temperature sensors, ensuring compatibility with the gauge.
• Illuminated Display: Features LED backlighting for clear visibility during both day and night driving conditions.
