Description

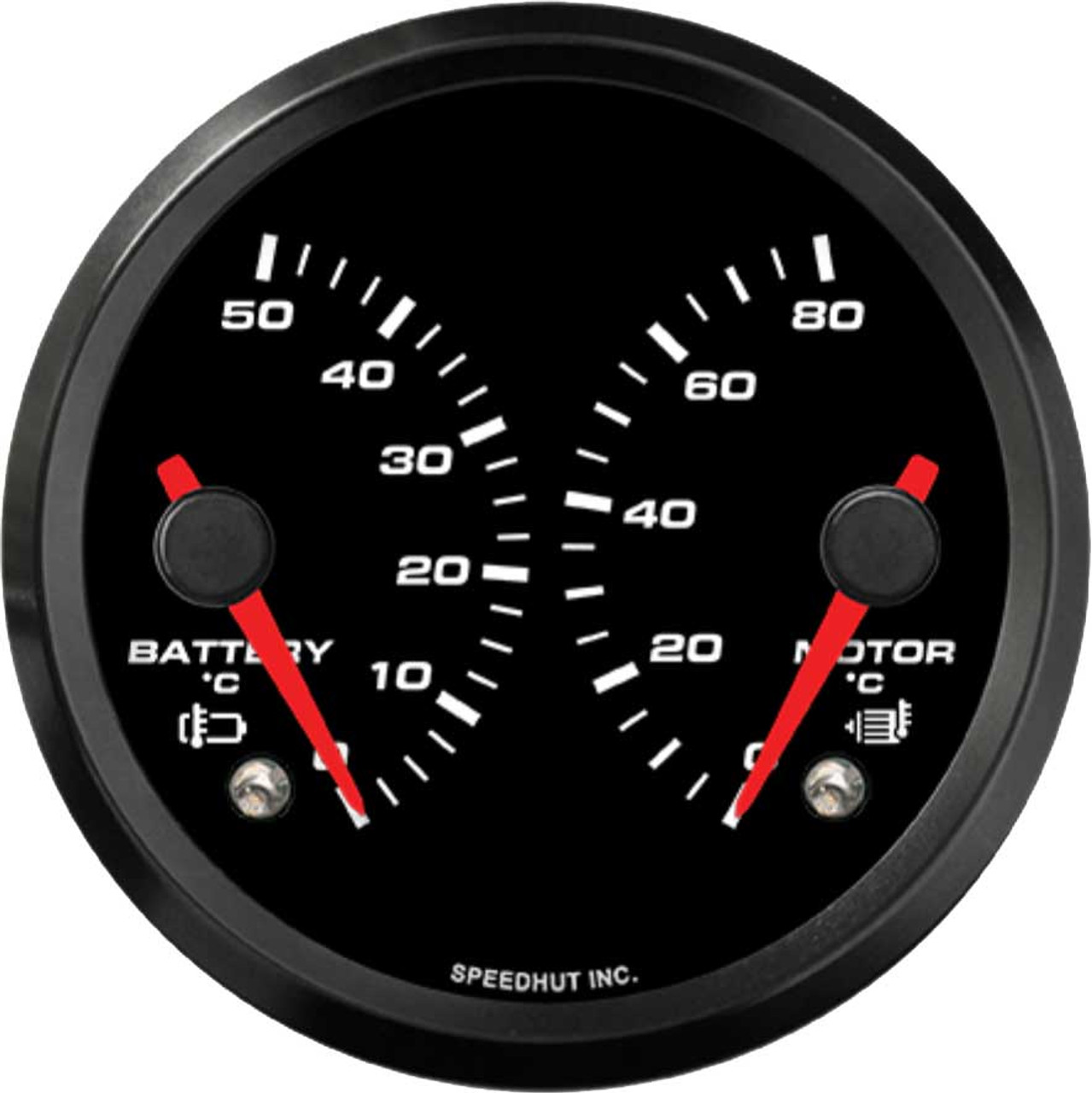

The Speedhut 3-3/8" EV 0-50C Bat Temp/0-80C Motor Temp Gauge (FAE3-DG1-EV) is a compact and precise instrument designed specifically for electric vehicles. This single unit effectively combines two essential readings, displaying both your EV’s battery temperature (0-50°C) and motor temperature (0-80°C) in real-time. Operating seamlessly through your vehicle’s CAN-Bus system at a 500K baud rate, this gauge provides vital information for assessing and optimizing the performance of your electric powertrain. Its integrated warning lights for high battery (above 40°C) and motor (above 70°C) temperatures offer an immediate visual alert, allowing you to take proactive measures to ensure the longevity and efficiency of your EV’s critical components. Installation is straightforward, integrating directly into your existing CAN-Bus network. Maximize your dashboard space without compromising essential data with this indispensable tool for any electric vehicle owner.

KEY FEATURES AND BENEFITS:

• Dual Temperature Monitoring: Simultaneously displays battery temperature (0-50°C) and motor temperature (0-80°C) in a single 3-3/8" gauge.
• CAN-Bus Integration: Connects directly to your EV’s CAN-Bus system (500K baud rate) for accurate and reliable data without the need for additional sensors.
• Integrated Warning System: Features built-in warning lights that illuminate when the battery temperature exceeds 40°C and the motor temperature exceeds 70°C, providing timely alerts for potential overheating.
• Space-Saving Design: The 3-3/8" form factor maximizes your dashboard real estate by combining two crucial readings into one compact unit.
• Easy Installation: Designed for simple and direct integration into your EV’s existing CAN-Bus network.
• Performance Assessment: Provides real-time data necessary for effectively assessing and optimizing the overall performance of your electric vehicle’s powertrain.

SPECIFICATIONS:

• Gauge Type: Dual
• Signal Type: CAN-Bus (500K baud rate)
• Temperature Ranges: Battery: 0-50°C, Motor: 0-80°C
• Size: 3-3/8 inch (85mm)
• Hole Size: 3.33 inches (85mm)
• Units: Metric (°C)
• Warning Light Thresholds: Battery: Above 40°C, Motor: Above 70°C
• Included: 3 ft Power & Lighting Harness, EV CAN Jumper Harness, EV CAN Harness

HOW TO USE:

1. Connect the Power and Lighting Harness: Plug the provided 3 ft Power & Lighting Harness into the designated port on the Speedhut gauge. Connect the other end to a suitable power and lighting source in your vehicle, following the wiring diagram provided.
2. Connect the EV CAN Jumper Harness: Attach one end of the EV CAN Jumper Harness to the designated CAN-Bus port on the Speedhut gauge.
3. Connect the EV CAN Harness: Connect one end of the EV CAN Harness to the other end of the EV CAN Jumper Harness.
4. Integrate into the Vehicle’s CAN-Bus: Connect the open end of the EV CAN Harness to your electric vehicle’s CAN-Bus network. Ensure proper termination and connection according to your vehicle’s specific wiring instructions.
5. Mount the Gauge: Securely mount the 3-3/8" gauge into a 3.33" (85mm) diameter hole in your dashboard using the appropriate mounting hardware (if provided or purchased separately).
6. Verify Functionality: Once all connections are made, power on your vehicle. The gauge should illuminate and display the real-time battery and motor temperatures. Observe the warning lights to ensure they activate when the respective temperature thresholds are exceeded.

BENEFITS OF USING THE SPEEDHUT 3-3/8" EV 0-50C BAT TEMP/0-80C MOTOR TEMP GAUGE (FAE3-DG1-EV):

• Provides instant and accurate readings of your EV’s critical thermal data, allowing for proactive monitoring.
• Helps you understand the operating temperatures of your battery and motor, contributing to informed driving habits and potential performance optimization.
• The integrated warning lights offer an early alert system, potentially preventing damage from overheating and extending the lifespan of your EV’s key components.
• The dual functionality in a single gauge saves valuable dashboard space and provides a clean, integrated look.
• Easy integration with your EV’s existing CAN-Bus system simplifies the installation process.

FEATURES:

• Simultaneous display of two distinct temperature readings.
• Direct data acquisition via the vehicle’s communication network.
• Visual indicators for elevated operating temperatures.
• Compact 85mm (3-3/8") form factor.
• Designed for seamless integration into electric vehicle systems.
• Utilizes a high-speed communication protocol for real-time updates.
• Comes with necessary wiring harnesses for connection.
