Description

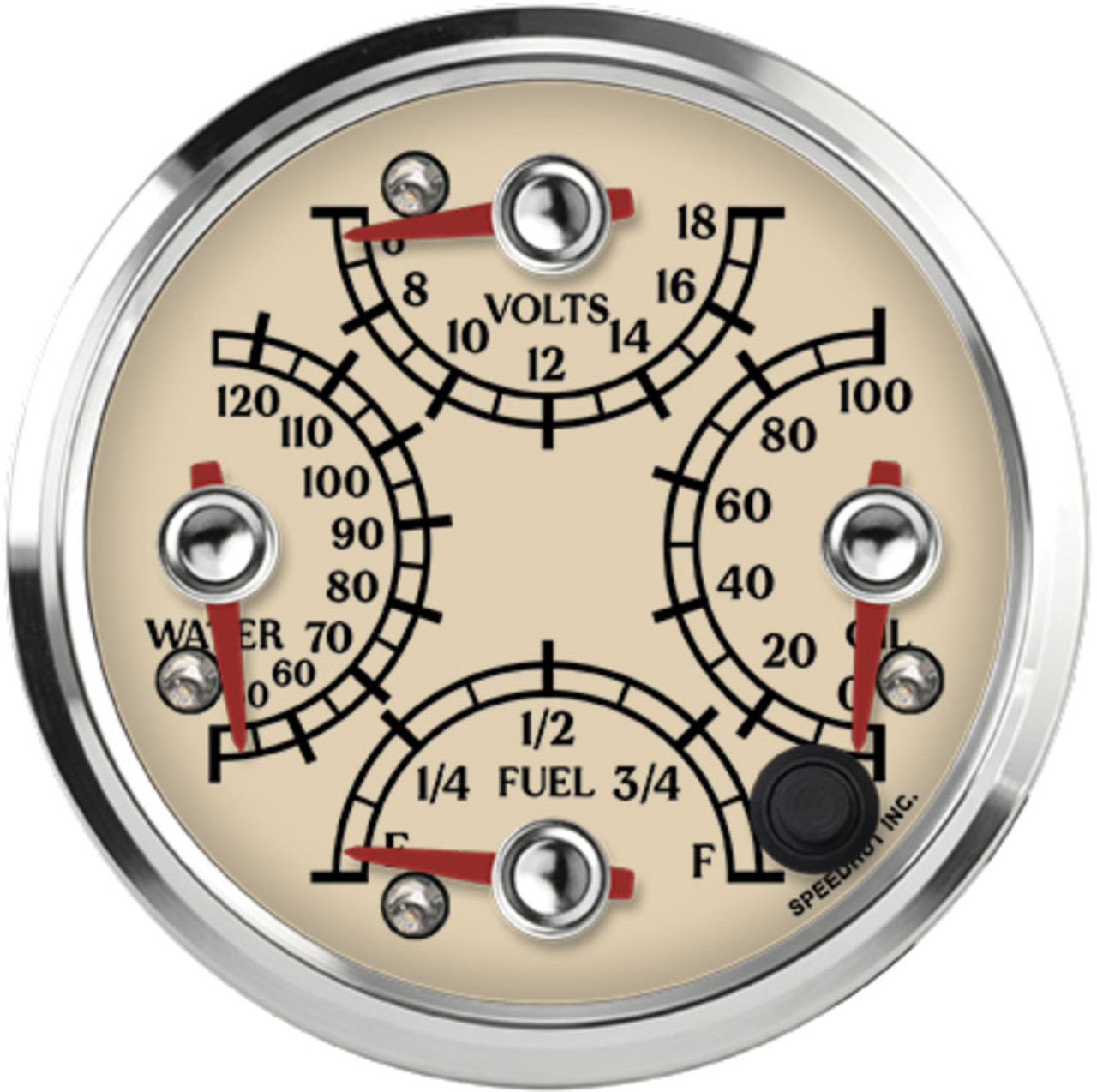

Speedhut 3-3/8" Ant. Met Wat Temp/Volt/Oil PSI/Fuel Level (R3-QG1-ATQ) offers a streamlined solution for monitoring your vehicle’s most critical operating parameters. This single, classically styled gauge provides at-a-glance readings for water temperature (in Celsius), electrical system voltage, engine oil pressure (in PSI), and fuel level. Designed for accuracy and ease of installation, this quad gauge helps you stay informed about your vehicle’s health without cluttering your dashboard with multiple individual units.

KEY FEATURES AND BENEFITS:

• This quad gauge integrates four essential monitoring functions into a single, compact 3 3/8 inch unit, saving valuable dashboard space and offering a cohesive look.
• The antique design provides a timeless aesthetic that complements a variety of vehicle interiors.
• By displaying real-time data for water temperature, voltage, oil pressure, and fuel level, you can proactively identify potential issues, ensuring optimal vehicle performance and preventing costly breakdowns.
• The inclusion of a temperature sensor and a pressure sensor simplifies the installation process for these vital readings.
• The gauge also features a warning light, providing an immediate visual alert if any monitored parameter falls outside of a safe operating range.

SPECIFICATIONS:

• Gauge Type: Quad Gauge
• Size: 3 3/8 inch (85mm)
• Hole Size: 3.28 inch (83mm)
• Voltage Range: 6-18 volts
• Water Temperature Range: 50-125 °C
• Fuel Level Range: Empty (E) to Full (F) (compatible with fuel level senders outputting 300 ohms or less – sender not included)
• Oil Pressure Range: 0-100 psi
• Standard or Metric: Metric (Water Temperature)
• Warning Light: Yes
• Included:
• Speedhut Temperature Sensor
• Wiring Harness (2-Wire Cable)
• Temperature Gauge Wiring Harness (2-Wire Cable)
• 3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks
• Pressure Sensor – 100 psi
• Pressure Gauge Wiring Harness (3-Wire Cable)

HOW TO USE:

• Mount the Gauge: Secure the 3 3/8 inch gauge in a suitable 3.28 inch (83mm) opening in your dashboard using the provided spin-lock ring.
• Connect Power and Lighting: Utilize the 3 ft Power & Lighting Harness to connect the gauge to a suitable power source and lighting circuit in your vehicle.
• Install Temperature Sensor: Mount the included Speedhut Temperature Sensor in the appropriate location on your engine to monitor water temperature. Connect the sensor to the gauge using the provided Temperature Gauge Wiring Harness (2-Wire Cable).
• Install Pressure Sensor: Install the included 100 psi Pressure Sensor in the designated port on your engine to measure oil pressure. Connect the sensor to the gauge using the Pressure Gauge Wiring Harness (3-Wire Cable).
• Connect Fuel Level Sender: Connect the wiring from your existing fuel level sender (or a new sender compatible with 300 ohms or less) to the appropriate terminals on the gauge using the Wiring Harness (2-Wire Cable). Note: The fuel level sender itself is not included. Calibration of the fuel level gauge may be required to match your specific sender unit.
• Verify Connections: Double-check all wiring connections to ensure they are secure and correct.
• Test Operation: Start your vehicle and observe the gauge readings to confirm proper functionality of all four displays.

BENEFITS OF USING THE SPEEDHUT 3-3/8" ANT. MET WAT TEMP/VOLT/OIL PSI/FUEL LEVEL (R3-QG1-ATQ):

• This gauge provides a centralized monitoring system for four critical vehicle functions, reducing dashboard clutter and simplifying the process of keeping track of your engine’s health and fuel level.
• The antique styling adds a touch of classic elegance to your vehicle’s interior.
• Real-time monitoring of water temperature helps prevent overheating, while voltage monitoring can alert you to potential charging system issues.
• Tracking oil pressure ensures proper engine lubrication, and knowing your precise fuel level prevents unexpected run-outs.
• The included temperature and pressure sensors streamline the installation for these key readings.
• The integrated warning light offers an immediate visual indication of potential problems, allowing for prompt action.

FEATURES:

• Combines four vital measurements in one compact unit: Celsius water temperature, voltage, PSI oil pressure, and fuel level.
• Timeless antique design enhances the vehicle’s dashboard aesthetic.
• Compact 3 3/8 inch (85mm) diameter saves space on your dashboard.
• Equipped with an integrated warning light for quick alerts to any irregularities.
• Designed specifically to measure water temperature in Celsius.
• Monitors electrical system voltage ranging from 6 to 18 volts.
• Provides precise oil pressure readings from 0 up to 100 PSI.
• Compatible with most standard fuel level sensors outputting 300 ohms or less.
• Includes a dedicated temperature sensor for accurate water temperature monitoring.
• Features a pressure sensor capable of measuring oil pressure up to 100 PSI.
• Comes with wiring harnesses for easy installation of power, lighting, temperature, and pressure sensors.
