Description

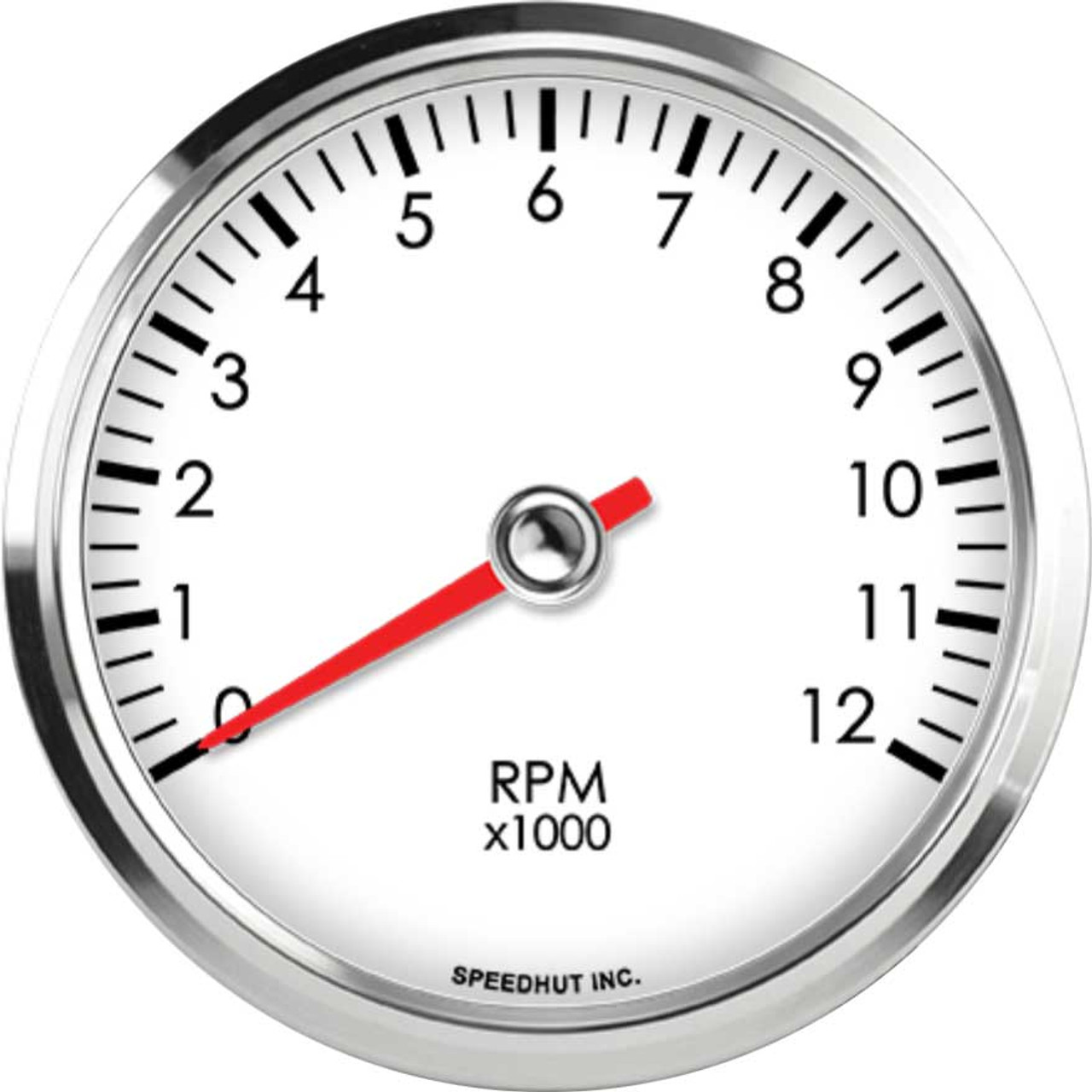

The Speedhut 3-3/8" 12K RPM Tachometer (L3-TC5-LEG) is an instrument designed to provide accurate and real-time readings of your engine’s revolutions per minute (RPM). This analog gauge has a measurement range from 0 to 12,000 RPM, allowing you to closely monitor your engine’s performance across its entire operating spectrum. Its 3 3/8 inch (85mm) diameter makes it a suitable size for integration into a variety of dashboards, requiring a 3.3 inch (84mm) mounting hole. Engineered for compatibility with standard spark plug ignition systems, this tachometer can be used with engines having between 1 and 12 cylinders without the need for additional adapters.

KEY FEATURES AND BENEFITS:

• Precise RPM monitoring: Provides immediate feedback on engine revolutions for performance and safety.
• Broad compatibility: Works with 1 to 12-cylinder engines using standard spark plug ignition systems.
• Easy installation: Includes gauge mounting ring for secure dashboard placement.
• Complete wiring harnesses: Comes with 8 ft tachometer harness and 3 ft power & lighting harness for simplified connections.
• LED illumination: Offers excellent visibility even in low-light environments.

SPECIFICATIONS:

• Gauge Type: Tachometer
• Units: RPM (Revolutions Per Minute)
• Signal Type: Standard spark plug ignition systems
• Compatibility: 1-cylinder, 2-cylinder, 3-cylinder, 4-cylinder, 5-cylinder, 6-cylinder, 8-cylinder, 10-cylinder, 12-cylinder engines
• Range: 0 – 12,000 RPM
• Size: 3 3/8 inch (85mm) diameter
• Hole Size: 3.3 inches (84mm)
• Internal Shift Light: No
• Gauge Mounting Ring: Included
• Included in Shipment:
• 8 ft Tachometer Harness – for LED Lit Gauges (1 Wire 2 Pin Connector)
• 3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks

HOW TO USE:

1. Mount the Gauge: Locate a suitable 3.3-inch (84mm) diameter opening in your vehicle’s dashboard. Insert the Speedhut tachometer into this opening and secure it using the included gauge mounting ring from the back of the dashboard.
2. Connect the Power and Lighting Harness: Identify the 3 ft Power & Lighting Harness. Connect the appropriate wires from this harness to a 12V power source (typically an ignition-switched source), ground, and your vehicle’s dash lighting circuit (if you desire the gauge to illuminate with your other instruments).
3. Connect the Tachometer Signal Harness: Locate the 8 ft Tachometer Harness. Connect one end of this harness to the designated terminals on the back of the Speedhut tachometer (using the 1 Wire 2 Pin Connector).
4. Connect the Signal Wire: Connect the single wire from the other end of the tachometer harness to the tachometer signal output of your vehicle’s ignition system. This is typically found at the negative (-) terminal of the ignition coil for standard spark plug ignition systems. Consult your vehicle’s wiring diagram for the precise location.
5. Verify Connections: Double-check all wiring connections to ensure they are secure and correct according to your vehicle’s electrical system and the gauge’s wiring diagram (which should be provided with the product).
6. Test the Gauge: Start your vehicle’s engine. The tachometer needle should now indicate the engine’s RPM. Verify that the gauge responds appropriately to changes in engine speed.

BENEFITS OF USING THE SPEEDHUT 3-3/8" 12K RPM TACHOMETER (L3-TC5-LEG):

• Accurate RPM monitoring: Prevents engine over-revving and assists in fine-tuning performance.
• Wide engine compatibility: Supports standard spark plug ignition systems for 1-12 cylinder engines.
• Installation convenience: Includes mounting hardware and pre-configured wiring harnesses.
• Enhanced visibility: LED illumination ensures easy reading in all lighting conditions.
• Performance diagnostics: Aids in identifying engine issues and optimizing operation.

FEATURES:

• Provides real-time engine speed indication up to 12,000 RPM.
• Designed to interface directly with standard spark plug ignition systems.
• Suitable for a wide range of engine configurations from single-cylinder to twelve-cylinder.
• Features a 3 3/8 inch (85mm) diameter for easy dashboard integration.
• Requires a 3.3 inch (84mm) cutout for mounting.
• Does not include an internal shift light, allowing for a clean and focused display.
• Comes with a dedicated 8 ft wiring harness for the tachometer signal.
• Includes a separate 3 ft power and lighting harness for straightforward electrical connections.
• Utilizes LED technology for bright and clear illumination of the gauge face.
• Mounts securely to the dashboard using the supplied mounting ring.
