Description

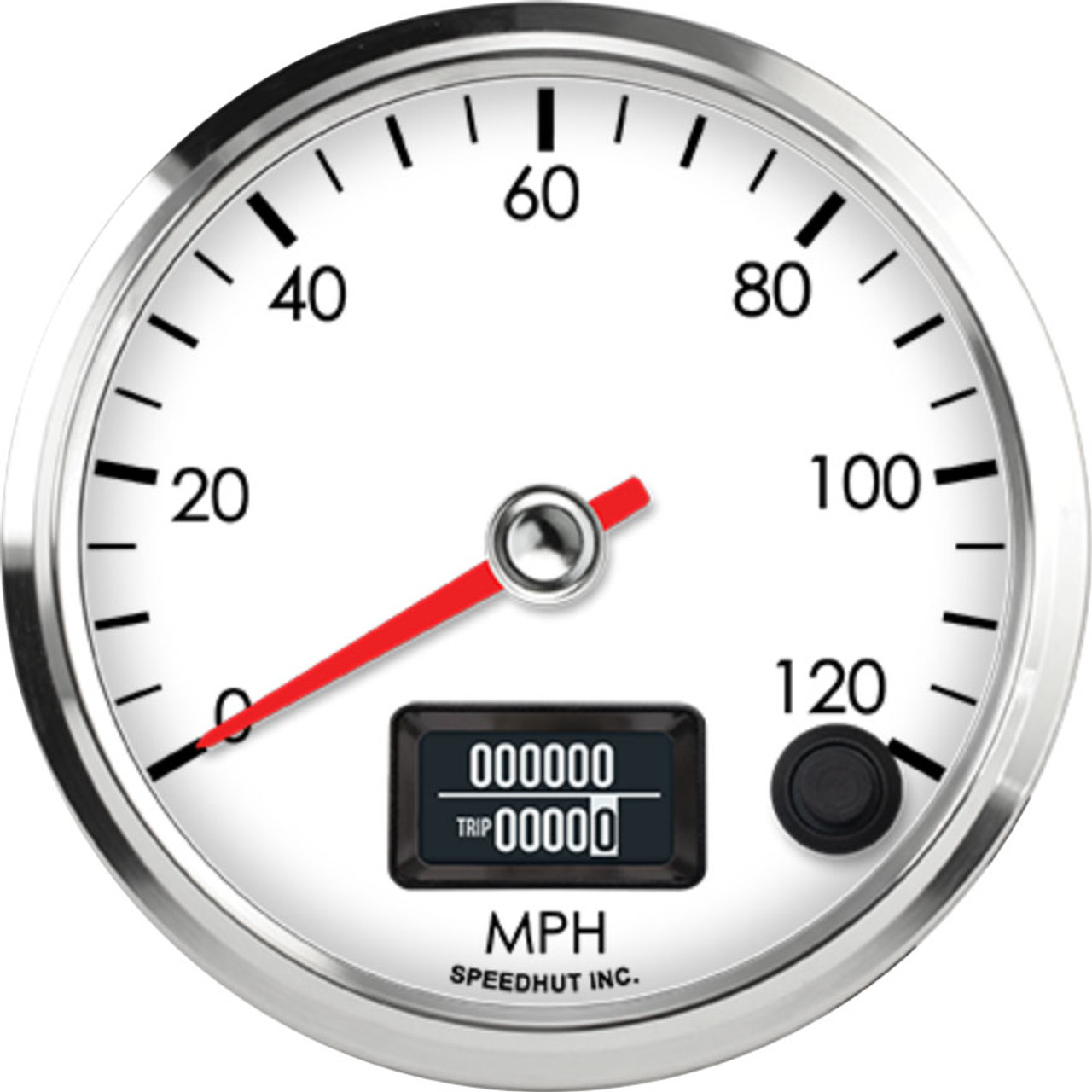

The Speedhut 3-3/8" 120mph Programmable Speedometer (R3-S10-LEG) is a precision instrument engineered to deliver accurate speed readings tailored to your specific vehicle. Its programmable nature ensures compatibility with any vehicle speed sensor (VSS), offering unparalleled flexibility for custom setups. Designed for ease of use and durability, this gauge is an ideal solution for anyone needing reliable and adaptable speed measurement.

KEY FEATURES AND BENEFITS:

• Programmable Design: Effortlessly calibrate the speedometer to match your vehicle’s unique gear ratios and tire sizes, guaranteeing precise speed assessments.
• Accurate Readings: An internal microprocessor ensures pinpoint accuracy in speed readings, providing confidence in the displayed information.
• Precise Pointer Movement: The high-torque stepper motor delivers accurate and stable pointer movement, even under demanding driving conditions.
• Simple Installation: The slim case and convenient spin-lock ring facilitate an easy and secure mounting process.
• Robust Construction: A solid billet aluminum bezel adds to the gauge’s durability and provides an appealing aesthetic.
• Weather Resistance: The gauge’s design is resistant to various weather conditions, ensuring long-lasting performance.
• Peace of Mind: Backed by a lifetime warranty on the electronic circuit board, offering assurance of its dependability.
• Quality Craftsmanship: Proudly made in America, reflecting a commitment to high standards of manufacturing.

SPECIFICATIONS:

• Gauge Type: Speedometer
• Speedometer Signal Type: Electric Programmable
• Range: 0 – 120 MPH
• Size: 3 3/8 inch (85mm)
• Hole Size: 3.3 inches (84mm)
• Standard or Metric: Standard
• Ships With:
• 3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks
• 8 ft Programmable Speedometer Wire Harness (LED lit)

HOW TO USE:

• Mount the Speedometer: Insert the 3-3/8" gauge into a 3.3" (84mm) diameter opening in your vehicle’s dashboard and secure it using the spin-lock ring.
• Connect the Power and Lighting Harness: Attach the 3 ft Power & Lighting Harness to the designated terminals on the back of the speedometer to provide power and illumination for the LED lights.
• Connect the Speedometer Signal Harness: Connect the 8 ft Programmable Speedometer Wire Harness to the appropriate terminals on the back of the speedometer.
• Connect to the Vehicle Speed Sensor (VSS): Route the other end of the 8 ft Programmable Speedometer Wire Harness to your vehicle’s speed sensor output wire. Consult your vehicle’s wiring diagram for the correct connection point.
• Calibrate the Speedometer: Once wired, follow the specific calibration instructions provided by Speedhut to program the speedometer to match your vehicle’s gear ratio and tire size. This typically involves a setup procedure using buttons or connections on the gauge. Refer to the Speedhut manual for detailed calibration steps.

BENEFITS OF USING THE SPEEDHUT 3-3/8" 120MPH PROGRAMMABLE SPEEDOMETER (R3-S10-LEG):

• Experience accurate and reliable speed readings precisely tailored to your vehicle’s specifications.
• The programmable nature of this speedometer eliminates inaccuracies caused by aftermarket modifications such as changes in tire size or gear ratios.
• Its straightforward installation process, coupled with its robust and weather-resistant design, ensures long-lasting performance and a seamless integration into your dashboard.
• The included wiring harnesses simplify the setup, and the lifetime warranty on the electronics provides added confidence in your investment.

FEATURES:

• Universal VSS Compatibility: Designed to function with any electric vehicle speed sensor output.
• User-Configurable Calibration: Allows for easy adjustment to accommodate different drivetrain configurations.
• Internal Microprocessor Precision: Ensures highly accurate and stable speed measurements.
• High-Torque Stepper Motor Response: Provides smooth and precise needle movement across the speed range.
• Slim and Compact Case: Facilitates installation in various dashboard setups without requiring excessive depth.
• Secure Spin-Lock Mounting: Offers a simple and effective method for securing the gauge in the dash.
• Durable Billet Aluminum Bezel: Enhances the gauge’s structural integrity and aesthetic appeal.
• Integrated LED Illumination: Provides clear visibility of the speedometer readings during nighttime driving.
• Included Wiring Harnesses: Comes with dedicated harnesses for power, lighting, and the speed signal connection.
• Long-Term Reliability: Backed by a lifetime warranty on the electronic components.
• American-Made Quality: Represents superior craftsmanship and attention to detail in manufacturing.
