Description

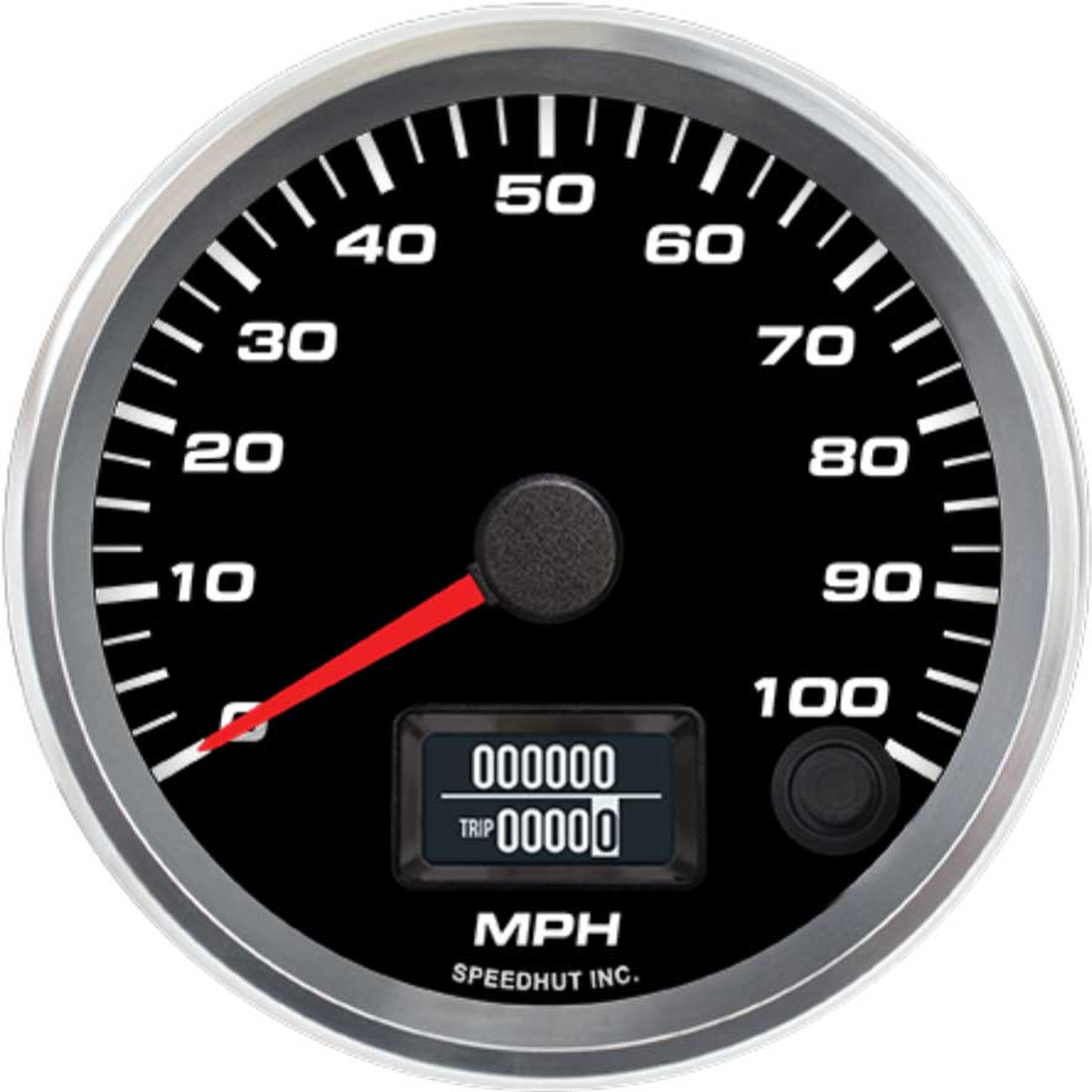

Experience precise and hassle-free speed monitoring with the Speedhut 3-3/8" 100 mph GPS Speedometer (R3-S19-REV). This gauge utilizes advanced GPS technology to deliver accurate speed readings without the complexities of traditional speed sensors or the need for manual calibration. Designed for ease of use and reliability, it’s the perfect choice for anyone seeking accurate speed information for their vehicle.

KEY FEATURES AND BENEFITS:

• Accurate Speed Measurement: An internal microprocessor ensures pinpoint accuracy in displaying your vehicle’s speed.
• Simple Installation: Requires only a 12V power connection and the included waterproof GPS antenna, which can be mounted conveniently anywhere in your vehicle.
• No Calibration Needed: Forget the tedious process of entering tire sizes or gear ratios; the GPS technology automatically calibrates for accurate readings.
• Worldwide Operation: Operates globally without any subscription fees, leveraging free GPS satellite technology.
• Reliable Performance: A high torque stepper motor guarantees precise pointer movement, providing clear speed indication in any driving condition.
• Easy Mounting: Features a slim case design and a convenient spin-lock ring, making installation straightforward in a 3.3" (84mm) mounting hole.
• Enhanced Durability: Constructed with a solid billet aluminum bezel for added strength and a refined appearance. The weather-resistant design ensures longevity in various environmental conditions.
• Peace of Mind: Backed by a Lifetime Warranty, offering assurance in the product’s dependability.
• Quality Craftsmanship: Proudly made in America, reflecting high standards of manufacturing.

SPECIFICATIONS:

• Gauge Type: Speedometer
• Speedometer Signal Type: GPS
• Range: 0 – 100 MPH
• Size: 3 3/8 inch (85mm)
• Hole Size: 3.3 inches (84mm)
• Standard or Metric: Standard (MPH)
• Gauge Mounting Ring: Included (Spin-lock ring)
• Included:
  • 3 ft Power & Lighting Harness (for LED Lit Gauges and Clocks)
  • GPS Antenna with 9.8 ft long cable and male SMA connector

HOW TO USE:

1. Mount the Gauge: Locate a suitable 3.3" (84mm) diameter hole in your dashboard or instrument panel. Insert the Speedhut GPS Speedometer into the hole and secure it using the included spin-lock mounting ring from the back.
2. Connect Power: Connect the red wire from the provided 3 ft Power & Lighting Harness to a 12V positive power source in your vehicle. Connect the black wire to a suitable ground point on the vehicle’s chassis. If your gauge has backlighting features, the additional wires in this harness will be for those functions (refer to the full Speedhut wiring diagram if provided).
3. Install the GPS Antenna: Choose a location for the GPS antenna where it has a clear, unobstructed view of the sky. This is crucial for receiving a strong GPS signal. Common mounting locations include the roof, dashboard, or rear deck. Ensure the mounting surface is clean and secure the antenna.
4. Connect the Antenna: Connect the male SMA connector of the GPS antenna cable to the corresponding female SMA connector on the back of the Speedhut GPS Speedometer.
5. Initial Operation: Once the power is connected and the antenna is properly installed, turn on your vehicle’s ignition. The speedometer will acquire a GPS signal, which may take a short period initially. Once a signal is established, the gauge will begin displaying your vehicle’s speed accurately as you drive. No further calibration is required.

BENEFITS OF USING THE SPEEDHUT 3-3/8" 100 MPH GPS SPEEDOMETER (R3-S19-REV):

• Enjoy highly accurate speed readings that are not affected by changes in tire size, gear ratios, or other mechanical modifications.
• Save time and effort with a simple installation process that eliminates the need to locate and connect traditional speed sensors.
• Benefit from automatic GPS-based calibration for consistently accurate speed readings.
• Operate seamlessly in various global locations without any subscription fees or regional limitations.
• Enhance your vehicle’s interior with a clean, professional, and durable design that withstands harsh conditions.
• Gain confidence from a Lifetime Warranty that underscores the instrument’s reliability and American-made quality.

FEATURES:

• Utilizes satellite-based positioning for real-time velocity data.
• Incorporates an intelligent processor for immediate and correct speed interpretation.
• Employs a robust motor to drive the pointer smoothly and accurately.
• Features a low-profile enclosure for seamless integration into your dashboard.
• Boasts a machined aluminum ring for a premium look and added strength.
• Engineered to resist the elements, ensuring consistent performance.
• Guaranteed against defects in materials and workmanship for the life of the product.
• Manufactured with pride in the United States.
