Description

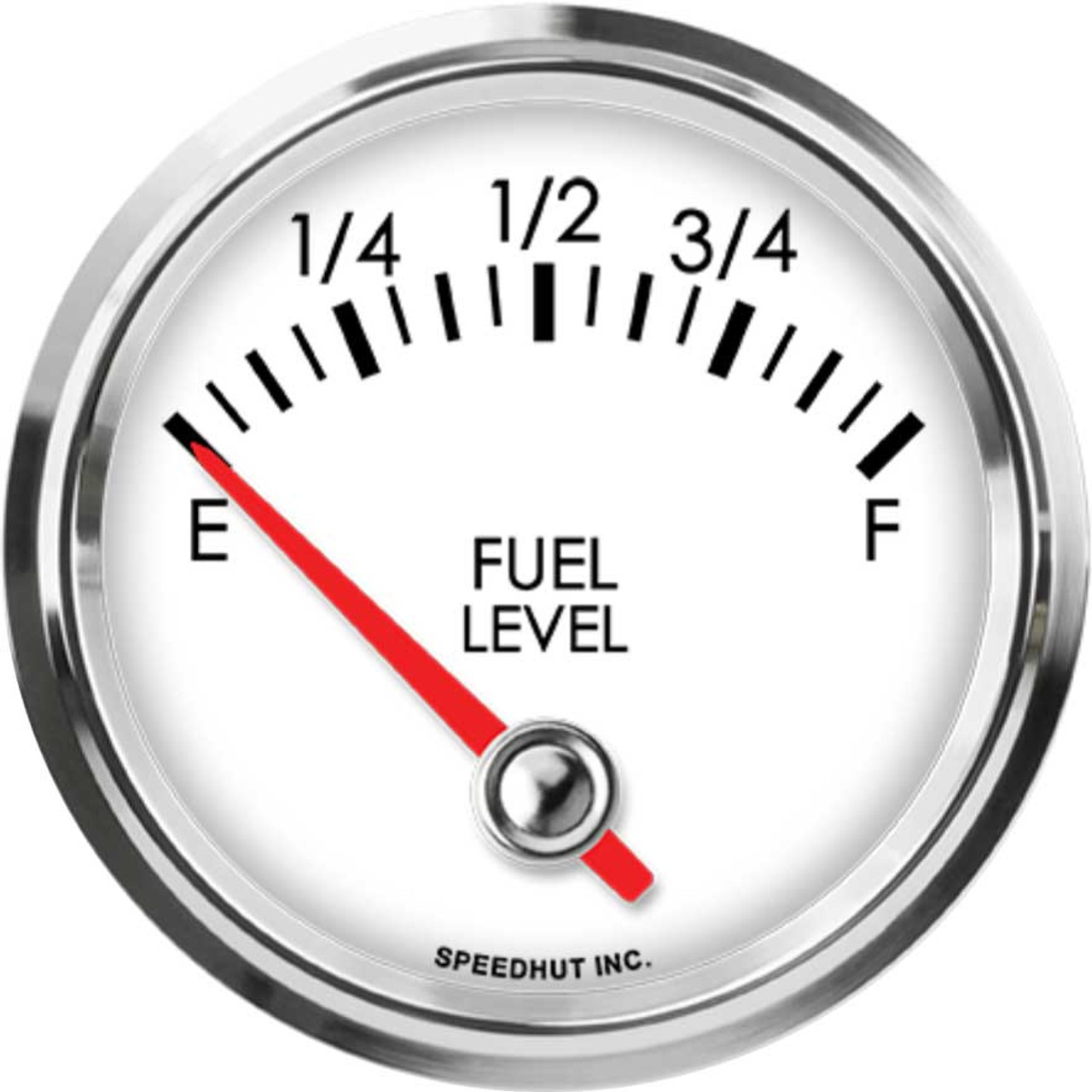

The Speedhut 2-5/8" Programmable Fuel Level Gauge 90° Sweep (L25-FL2-LEG) is a programmable instrument designed to provide accurate and reliable monitoring of your vehicle’s fuel level. Featuring a traditional aesthetic with a 90-degree sweep, this gauge seamlessly integrates into a variety of dashboards. Its programmable nature allows for compatibility with a wide range of fuel level sending units, ensuring precise readings for your specific setup.

KEY FEATURES AND BENEFITS:

• Accurate Fuel Monitoring: Provides a clear and precise indication of the fuel level in your vehicle.
• Universal Compatibility: Programmable to work with most fuel level sensors that operate at 300 ohms or less.
• Classic Design: The 2 5/8" size and 90-degree sweep offer a traditional look.
• Easy Installation: Comes with a wiring harness for straightforward connection to your vehicle’s electrical system and fuel level sender.
• LED Illumination Ready: Includes a power and lighting harness for easy integration of LED illumination for enhanced visibility.
• Simple Programming: A programming button is included for setting up the gauge.

SPECIFICATIONS:

• Gauge Type: Fuel Level Gauge
• Size: 2 5/8 inch
• Sweep: 90 Degree
• Fuel Level Signal Compatibility: 300 ohms or less
• Mounting Hole Size: 2.64 inches (67mm)
• Included:
  • Wiring Harness (2-Wire Cable)
  • 3 ft Power & Lighting Harness
  • Gauge Programming Button

HOW TO USE:

• Mount the Gauge: Secure the 2 5/8" Fuel Level Gauge into a 2.64-inch (67mm) diameter opening in your dashboard using appropriate mounting hardware (not explicitly stated if included, refer to product packaging).
• Connect to the Fuel Level Sender: Use the provided Wiring Harness (2-Wire Cable) to connect the gauge to your vehicle’s fuel level sending unit. Ensure correct polarity and secure connections.
• Connect Power and Lighting: Utilize the 3 ft Power & Lighting Harness to connect the gauge to a suitable power source and vehicle lighting system for illumination (if desired).
• Program the Gauge (if necessary): Use the included Gauge Programming Button to calibrate the gauge to your specific fuel level sender unit if the default settings do not provide accurate readings. Refer to the manufacturer’s instructions for the programming procedure.

BENEFITS OF USING THE SPEEDHUT 2-5/8" PROGRAMMABLE FUEL LEVEL GAUGE 90° SWEEP (L25-FL2-LEG):

• Reliable Fuel Information: Eliminates guesswork and provides an accurate visual representation of your fuel level, helping you avoid running out of fuel unexpectedly.
• Broad Compatibility: The programmable design ensures it can function with a wide range of existing fuel level sensors, making it a versatile replacement or upgrade.
• Ease of Installation: The included wiring harness simplifies the connection process.
• Enhanced Night Visibility: The provision for LED lighting ensures clear readability of the gauge in low-light conditions.
• Traditional Style: The classic design complements a variety of vehicle interiors.

FEATURES:

• Short Pointer Movement: 90-degree sweep for quick and easy fuel level interpretation.
• Standard Size: Designed for standard 2 5/8 inch (67mm) mounting openings.
• Sensor Compatibility: Operates with fuel level sensors outputting a resistance of 300 ohms or less.
• Dedicated Sensor Harness: Dedicated two-wire harness for the fuel sender signal.
• Power & Lighting Harness: Separate power and lighting harness for straightforward electrical connections.
• Programmable Functionality: Programming capability allows customization for specific sender resistance ranges.
• Clear Readout: Clear "E" (Empty) to "F" (Full) indication for immediate understanding.
• Durable Design: Compact and robust construction for lasting performance.
