Description

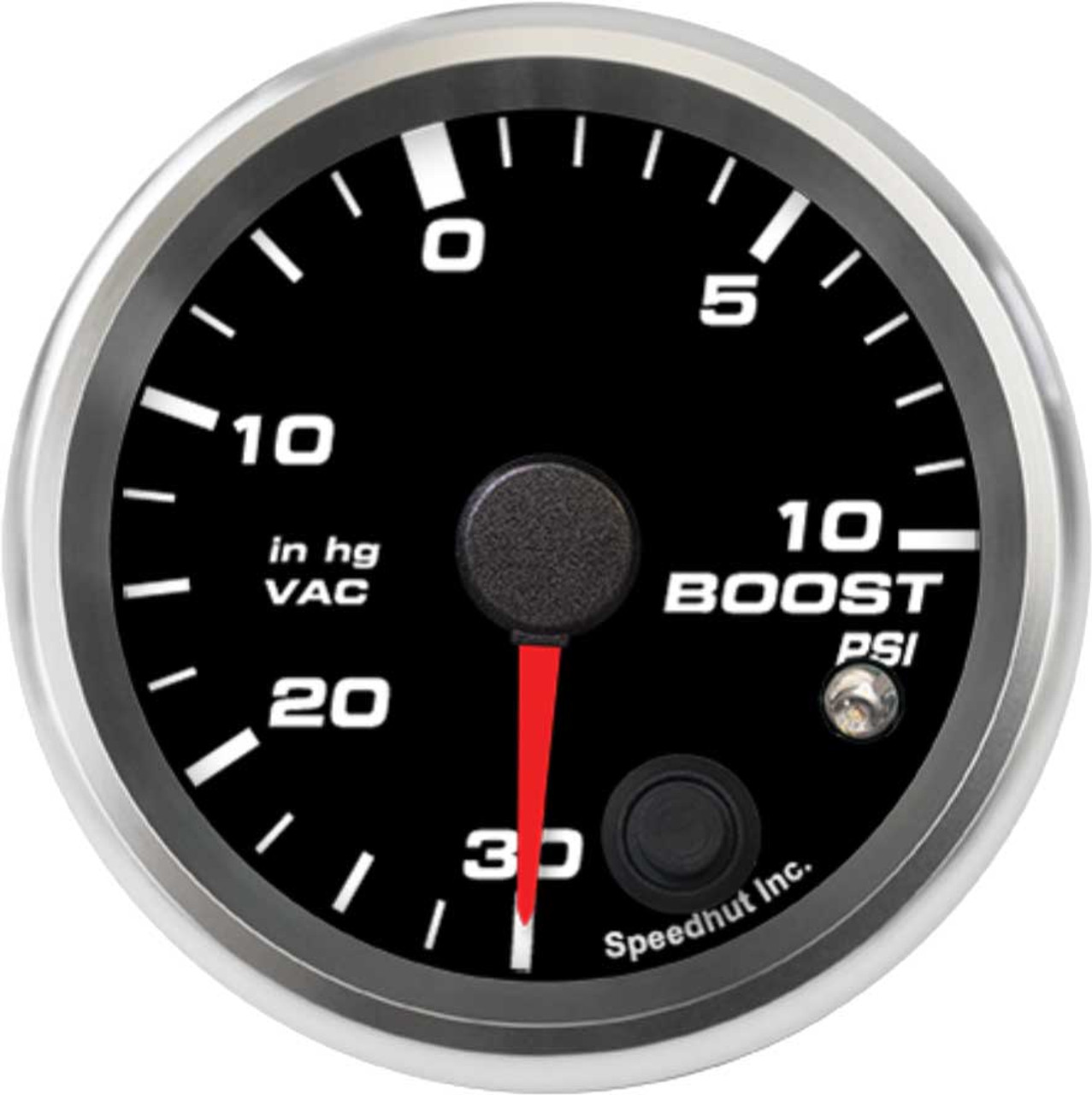

The Speedhut 2-5/8" 30inhg-0-10PSI Boost/Vac Gauge w/Warning (R25-BV1-REV) is an essential instrument for monitoring the performance of turbocharged or supercharged engines. This gauge provides accurate real-time readings of both vacuum and boost pressure, allowing drivers to stay informed about their engine’s operating conditions. Equipped with a user-settable warning light, it offers an added layer of protection by alerting you to potentially damaging pressure levels.

KEY FEATURES AND BENEFITS:

• Clearly displays: Boost pressure from 0 to 10 PSI and vacuum levels up to 30 inHg.
• Utilizes: A high-performance 3-wire military-grade transducer for precise and reliable measurements.
• Integrated warning light: Can be configured to illuminate when user-defined pressure thresholds are reached.
• 2 5/8 inch diameter: Designed for easy integration into most gauge pods.
• Complete installation kit: Includes all necessary hardware for a straightforward setup process.

SPECIFICATIONS:

• Gauge Type: Boost/Vacuum Gauge
• Pressure Sender Type: 3-Wire Military Grade Transducer (Performance)
• Range: 30 inHg to 10 PSI
• Size: 2 5/8 inch (66.7 mm)
• Hole Size: 2.67 inches (68 mm)
• Standard or Metric: Standard
• Warning Light: Yes
• Ships With:
  • Boost/Vac Hose Kit
  • Pressure Sensor – 30 PSI
  • Pressure Gauge Wiring Harness (3-Wire Cable)
  • 3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks

HOW TO USE:

1. Mount the Gauge: Secure the 2 5/8" gauge in your desired location using the spin-lock ring. Ensure the 2.67" (68mm) mounting hole is appropriately sized.
2. Connect the Pressure Sensor: Install the included 30 PSI pressure sensor to a suitable vacuum/boost source on your engine using the provided Boost/Vac Hose Kit.
3. Wire the Sensor: Connect the 3-wire cable from the pressure sensor to the corresponding terminals on the back of the gauge.
4. Connect Power and Lighting: Use the 3 ft Power & Lighting Harness to provide power to the gauge and the warning light. Ensure proper grounding and connection to a suitable power source.
5. Set the Warning Light (Optional): Follow the gauge’s instructions to set the desired pressure threshold at which the warning light will activate.
6. Monitor Readings: Once installed and powered, the gauge will display real-time boost and vacuum readings as your engine operates. Observe the gauge to ensure optimal performance and to identify any pressure anomalies.

BENEFITS OF USING THE SPEEDHUT 2-5/8" 30INHG-0-10PSI BOOST/VAC GAUGE W/WARNING (R25-BV1-REV):

• Accurate feedback: Provides real-time boost and vacuum data, crucial for performance monitoring.
• Engine protection: The integrated warning light helps prevent damage from overboost or low pressure conditions.
• Reliable measurements: Uses a high-quality transducer for consistent and accurate readings.
• Simplified installation: Comes with all necessary hardware for quick and easy setup.

FEATURES:

• Clear analog display for easy readability of pressure values.
• Utilizes a robust 3-wire connection for the pressure sensor, enhancing signal integrity.
• Equipped with a user-configurable warning system to indicate out-of-range pressure.
• Designed in a standard 2 5/8" size for compatibility with common gauge mounting solutions.
• Comes with a complete set of necessary installation components, including hose and wiring.
