Description

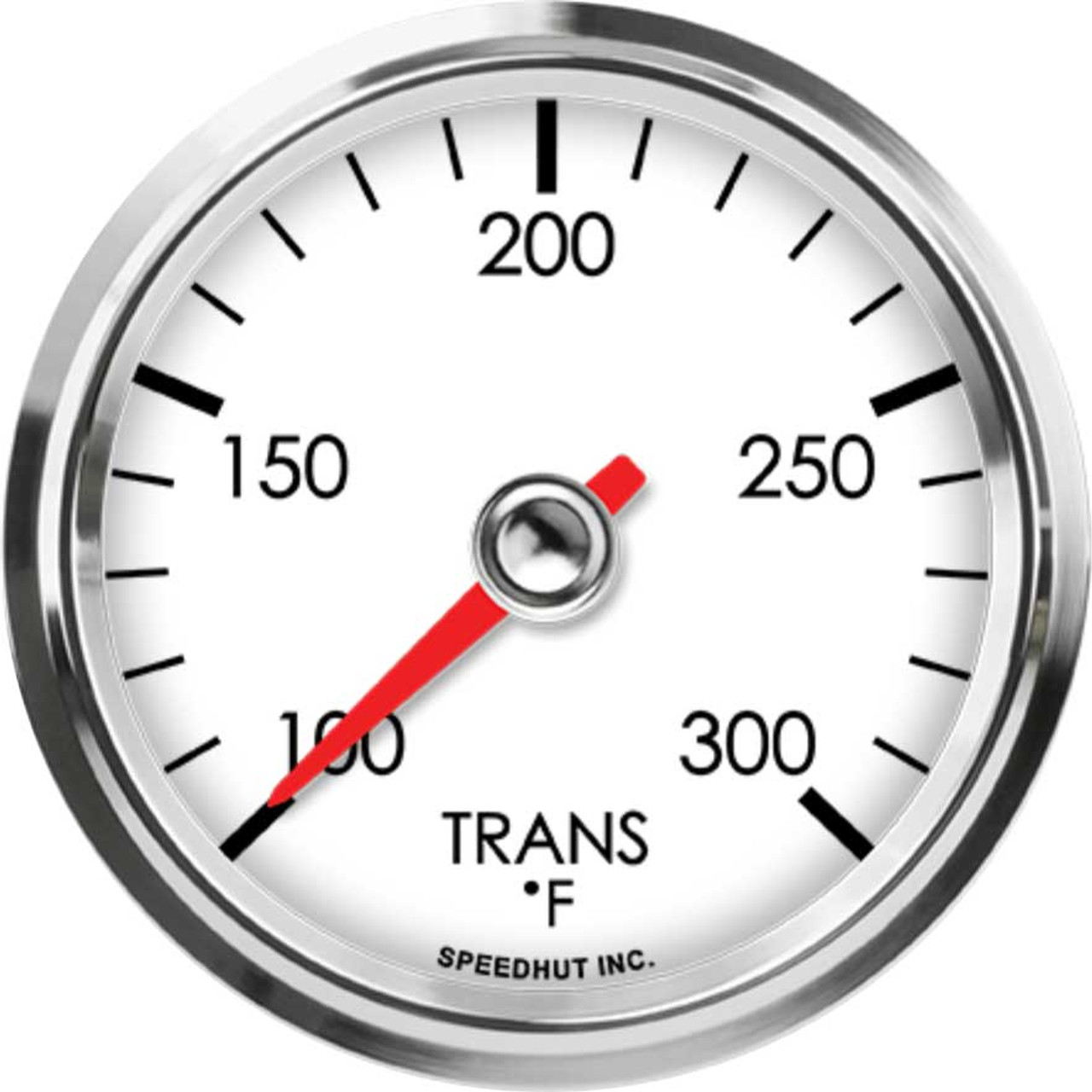

The Speedhut 2-5/8" 100-300F Trans Temp Gauge (L25-TT1-LEG) provides accurate monitoring of your vehicle’s transmission fluid temperature, helping you ensure optimal performance and prevent potential damage. This gauge features LED illumination for clear visibility and comes complete with all necessary components for installation.

KEY FEATURES AND BENEFITS:

• Accurate Monitoring: Precisely displays transmission temperature within a range of 100 to 300 degrees Fahrenheit.
• Performance Sender Included: Comes with a high-quality 2-wire temperature sender designed for accurate readings.
• Complete Wiring Included: Ships with a 3 ft power and lighting harness for LED illumination and a dedicated 2-wire temperature gauge wiring harness for the sensor.
• Clear Visibility: Features LED backlighting for easy reading of the temperature display.
• Standard Measurement: Displays temperature in the standard Fahrenheit scale.
• Convenient Size: The 2 5/8 inch size fits standard gauge openings.

SPECIFICATIONS:

• Gauge Type: Temperature Gauge
• Gauge Subtype: Transmission Temperature Gauge
• Temperature Range: 100-300 degrees Fahrenheit
• Temp Sender Type: 2-Wire Temp Sender (Performance)
• Size: 2 5/8 inch
• Hole Size: 2.67 inches (68mm)
• Standard or Metric: Standard
• Warning Light: No
• Ships With:
  • 3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks
  • Speedhut Temperature Sensor (2-Wire Performance)
  • Temperature Gauge Wiring Harness (2-Wire Cable)

HOW TO USE:

• Mount the Gauge: Locate a suitable 2.67-inch (68mm) diameter opening in your vehicle’s dashboard or instrument panel. Secure the Speedhut Trans Temp Gauge in this opening.
• Install the Temperature Sender: Identify a suitable location on your transmission to install the provided 2-wire temperature sender. Ensure the sender is properly threaded and making good contact with the transmission fluid.
• Connect the Wiring Harnesses:
  • Connect one end of the 2-wire temperature gauge wiring harness to the terminals on the temperature sender. Connect the other end to the corresponding terminals on the back of the Speedhut Trans Temp Gauge.
  • Connect the 3 ft power and lighting harness to the power and ground terminals on the back of the gauge, as well as to a suitable 12V power source and ground in your vehicle. This harness also powers the LED illumination.
• Verify Connections: Double-check all wiring connections to ensure they are secure and correct.
• Test the Gauge: Start your vehicle and allow the transmission to warm up. Observe the gauge to ensure it is displaying the transmission fluid temperature accurately.

BENEFITS OF USING THE SPEEDHUT 2-5/8" 100-300F TRANS TEMP GAUGE (L25-TT1-LEG):

• Proactive Maintenance: Allows you to closely monitor your transmission’s temperature, enabling you to identify potential overheating issues before they lead to costly repairs.
• Improved Transmission Longevity: By ensuring your transmission operates within its optimal temperature range, you can contribute to its long-term health and lifespan.
• Enhanced Performance: Maintaining proper transmission fluid temperature helps ensure smooth and efficient gear changes, contributing to overall vehicle performance.
• Increased Awareness: Provides you with real-time information about a critical component of your vehicle, giving you greater peace of mind.
• Easy Installation: Comes with all necessary wiring and a sender, simplifying the installation process.
• Clear and Readable: The LED-illuminated display ensures easy temperature readings in various lighting conditions.

FEATURES:

• Displays real-time transmission fluid temperature.
• Utilizes a performance-oriented 2-wire temperature sensing unit.
• Includes a dedicated wiring cable for the temperature sensor signal.
• Features an integrated LED lighting system for enhanced visibility.
• Designed to fit a standard 2 5/8 inch gauge mounting hole.
• Operates on the standard Fahrenheit temperature scale.
