Description

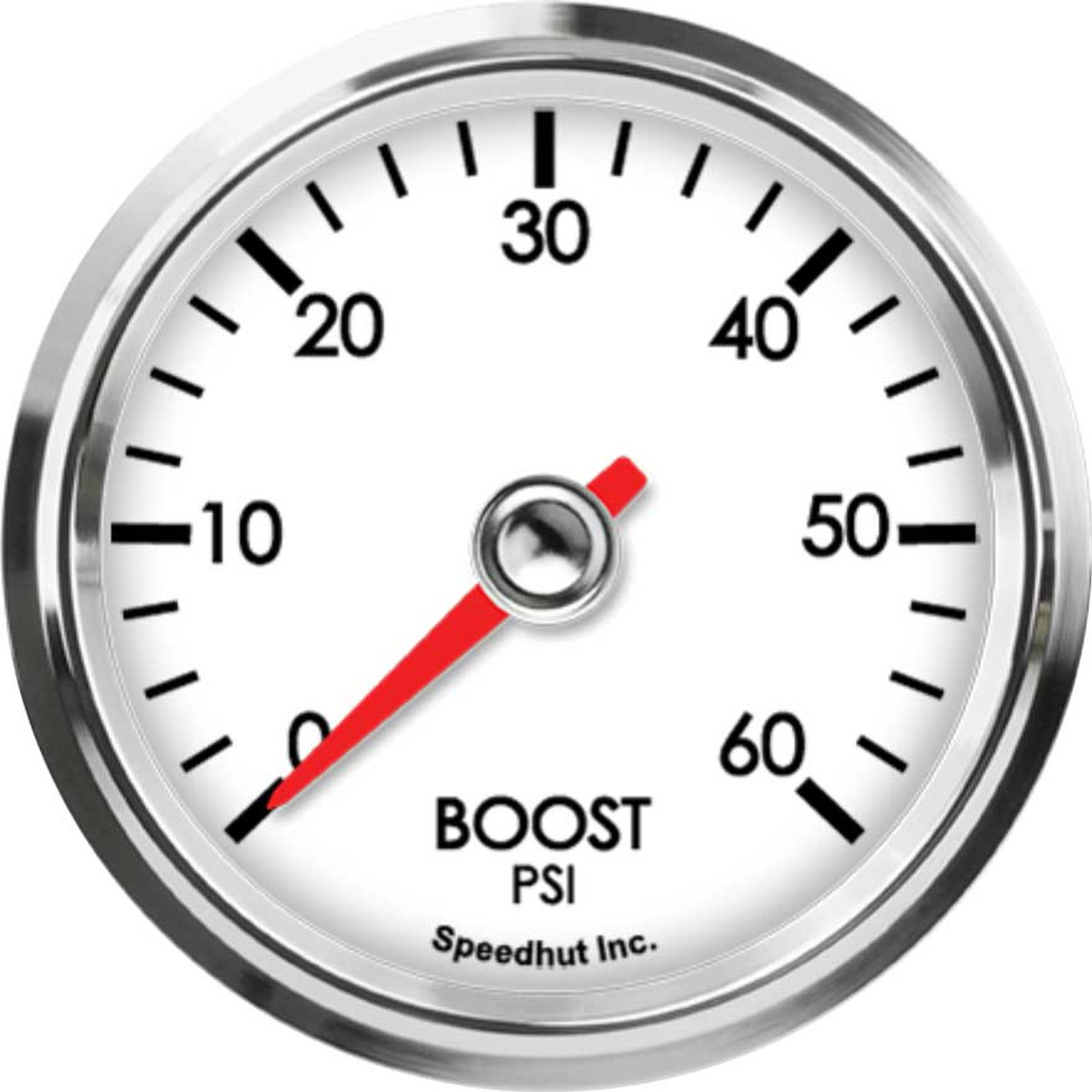

The Speedhut 2-5/8" 0-60 PSI Boost Gauge (L25-B6-LEG) is a reliable instrument designed to provide accurate readings of your vehicle’s manifold pressure. This analog gauge is essential for monitoring turbocharger or supercharger performance, as well as engine vacuum levels, allowing you to ensure optimal engine operation. Built with quality components, it offers a clear display and straightforward installation.

KEY FEATURES AND BENEFITS:

• This 2-5/8 inch (67mm) boost/vacuum gauge features a 0-60 PSI measurement range, providing a comprehensive view of pressure conditions.
• The inclusion of a 3-wire military-grade performance transducer ensures precise and dependable readings.
• Installation is simplified with the provided 3 ft power & lighting harness for LED illumination and a dedicated pressure gauge wiring harness.
• The gauge’s size, requiring a 2.68" (68mm) mounting hole, makes it compatible with many standard gauge pods.
• While it does not include a warning light, its clear display allows for easy visual monitoring.
• The shipped package includes both the necessary wiring and a robust 100 PSI pressure sensor, offering a complete solution for your boost monitoring needs.

SPECIFICATIONS:

• Gauge Type: Boost/Vacuum Gauge
• Pressure Sender Type: 3-Wire Military Grade Transducer (Performance)
• Range: 0-60 PSI
• Size: 2 5/8 inch
• Hole Size: 2.68" (68mm)
• Standard or Metric: Standard
• Warning Light: No
• Ships With:
  • 3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks
  • Pressure Gauge Wiring Harness (3-Wire Cable)
  • Pressure Sensor – 100 PSI

HOW TO USE:

• Mount the Gauge: Secure the 2-5/8" gauge in your desired location using the appropriate mounting hardware (not included). Ensure the 2.68" hole size is accommodated.
• Connect the Pressure Sensor: Install the included 100 PSI pressure sensor to a suitable vacuum/pressure source on your engine’s intake manifold or turbo/supercharger system.
• Wire the Pressure Sensor: Connect the 3-wire cable from the pressure sensor to the corresponding terminals on the back of the gauge.
• Connect Power and Lighting: Use the 3 ft power & lighting harness to connect the gauge to a suitable power source in your vehicle. This harness also powers the LED illumination.
• Verify Connections: Double-check all wiring connections to ensure they are secure and correct.
• Start Your Vehicle: Turn on your vehicle’s ignition to power the gauge.
• Monitor Readings: Observe the gauge to ensure it is displaying accurate boost and vacuum readings as your engine operates under different conditions.

BENEFITS OF USING THE SPEEDHUT 2-5/8" 0-60 PSI BOOST GAUGE (L25-B6-LEG):

• Gain crucial real-time feedback on your engine’s performance to detect potential issues early.
• Monitor boost pressure to ensure optimal operation of your turbocharger or supercharger, enhancing engine efficiency and longevity.
• Track vacuum levels to assess overall engine health.
• The high-quality pressure transducer ensures precise and reliable measurements.
• Simple installation process with included components, suitable for both DIY enthusiasts and professional installers.

FEATURES:

• Provides precise measurement of manifold pressure from 0 to 60 PSI.
• Utilizes a high-performance, military-grade 3-wire pressure transducer for accurate readings.
• Designed in a standard 2-5/8 inch (67mm) size for versatile mounting options.
• Requires a 2.68 inch (68mm) diameter hole for installation.
• Illuminated by LEDs via the included 3 ft power & lighting harness for excellent visibility.
• Comes with a dedicated pressure gauge wiring harness (3-wire cable) for easy sensor connection.
• Includes a robust 100 PSI pressure sensor, suitable for the gauge’s operating range.
• Offers a direct analog display for quick and easy interpretation of pressure levels.
• Engineered for reliable performance in automotive environments.
• Contributes to proactive engine monitoring and maintenance.
