Description

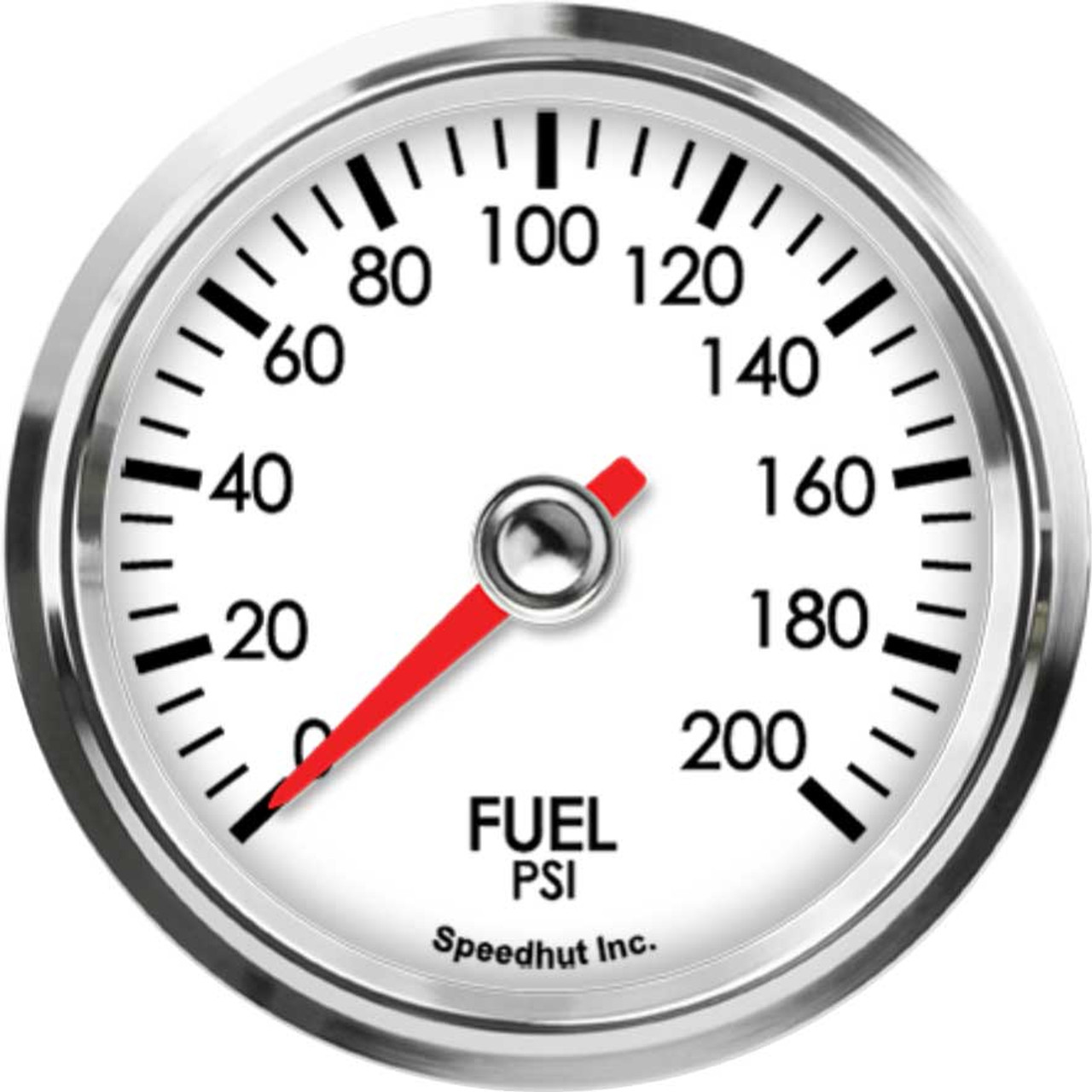

The Speedhut 2-5/8" 0-200 PSI Fuel Pressure Gauge (L25-FP5-LEG) is an essential instrument for monitoring your vehicle’s fuel system pressure with accuracy and reliability. Part of the esteemed Legacy Classic Street Rod series, this gauge combines classic aesthetics with modern precision, making it a valuable addition to any performance or custom vehicle.

KEY FEATURES AND BENEFITS:

• Accurate Readings: Provides precise fuel pressure measurements from 0 to 200 PSI, crucial for diagnosing and maintaining optimal engine performance.
• High-Quality Sensor: Utilizes a 3-wire military-grade transducer, known for its performance and reliability in demanding conditions.
• Easy Installation: Designed for straightforward installation with a 2-5/8 inch (66.7 mm) gauge size and a required 2.67-inch (68mm) hole size. The included spin-lock ring and wiring harnesses simplify the mounting process.
• Complete Package: Ships with all necessary components, including a power and lighting harness, a pressure sensor, and a dedicated pressure gauge wiring harness.
• Classic Style: Features a timeless design that complements classic and custom vehicle interiors.

SPECIFICATIONS:

• Gauge Type: Pressure Gauge
• Gauge Subtype: Fuel Pressure Gauge
• Range: 0-200 PSI
• Size: 2 5/8 inch (66.7 mm)
• Hole Size: 2.67 inches (68 mm)
• Pressure Sender Type: 3-Wire Military Grade Transducer (Performance)
• Warning Light: No
• Ships With:
• 3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks
• Pressure Sensor – 300psi
• Pressure Gauge Wiring Harness (3-Wire Cable)

HOW TO USE:

1. Mount the Gauge: Locate a suitable 2.67-inch (68mm) diameter opening in your dashboard or instrument panel. Insert the gauge and secure it using the spin-lock ring.
2. Install the Pressure Sensor: Identify a suitable port on your vehicle’s fuel system to install the included 300psi pressure sensor. Ensure proper sealing to prevent leaks.
3. Connect the Wiring Harnesses:
   • Connect the 3-wire cable from the pressure sensor to the corresponding terminals on the back of the fuel pressure gauge.
   • Connect the 3 ft power and lighting harness to the designated power and ground connections on the gauge, as well as to a suitable power source and lighting circuit in your vehicle.
4. Secure Connections: Ensure all wiring connections are secure and properly insulated.
5. Test the Gauge: With the vehicle running, observe the fuel pressure reading on the gauge to verify proper installation and functionality.

BENEFITS OF USING THE SPEEDHUT 2-5/8" 0-200 PSI FUEL PRESSURE GAUGE (L25-FP5-LEG):

• Diagnose Fuel System Problems: Quickly identify issues such as a failing fuel pump, clogged fuel filter, or faulty fuel pressure regulator by observing abnormal pressure readings.
• Ensure Proper Fuel Delivery: Verify that your engine is receiving the correct amount of fuel under various operating conditions, which is essential for efficient combustion and power output.
• Prevent Engine Damage: Inadequate or excessive fuel pressure can lead to engine damage over time. A fuel pressure gauge provides an early warning system for such problems.
• Performance Tuning: When modifying or tuning your engine for increased performance, accurate fuel pressure monitoring is vital to ensure safe and optimal operation.

FEATURES:

• Reliable 3-wire military-grade transducer delivers consistent and accurate pressure readings.
• Large 2-5/8 inch display provides a clear, easy-to-read view of fuel pressure.
• LED backlighting ensures visibility during both day and night driving conditions.
• Includes wiring harnesses for both sensor and lighting/power, making setup easier.
• Built with durable materials designed to endure harsh automotive environments.
