Description

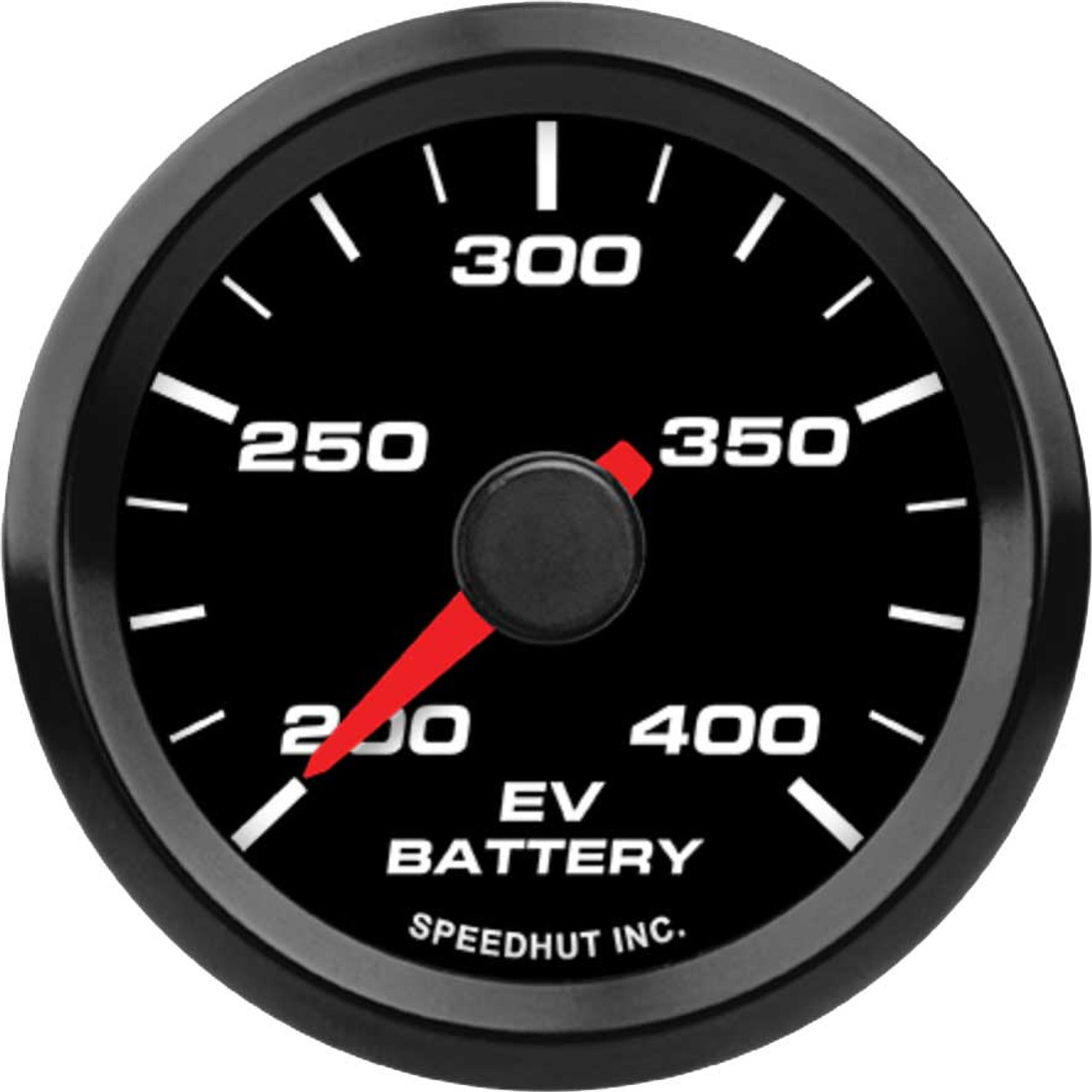

The Speedhut 2-1/16" EV Orion 200-400V Battery Gauge (FOR2-HV2-EV) is specifically engineered to provide crucial and immediate insights into the electrical health of your electric vehicle’s high-voltage battery system, designed for a 200-400 Volt range. This gauge allows you to closely monitor the battery’s voltage in real-time, which is essential for optimizing charging practices and ultimately extending the lifespan and overall performance of your EV battery. By seamlessly integrating with your vehicle’s Controller Area Network (CAN-Bus) system at a 500K baud rate, this gauge ensures the delivery of precise and timely voltage data. This accuracy empowers you to maintain the battery voltage within the recommended operating parameters, contributing to the consistent and reliable performance of your electric vehicle.

KEY FEATURES AND BENEFITS:

• Specifically designed for monitoring high-voltage electric vehicle battery systems.
• Operates within a 200-400 Volt range for comprehensive voltage coverage.
• Integrates with the CAN-Bus system (500K baud rate) for accurate data transmission.
• Helps extend battery life through real-time voltage monitoring.
• Includes all necessary harnesses for easy installation and reliable function.

SPECIFICATIONS:

• Gauge Type: EV High Voltage Battery Gauge
• Signal Type: CAN-Bus (500K baud rate)
• Range: 200-400 Volts
• Size: 2 1/16 inch (52mm)
• Hole Size: 2.10 inches (54mm)
• Compatibility: Orion EV systems
• Included: 3 ft Power & Lighting Harness, EV CAN Jumper Harness, EV CAN Harness

HOW TO USE:

1. Connect the Power Harness: Attach the provided 3 ft Power & Lighting Harness to the gauge, ensuring proper connections for power and illumination.
2. Connect the CAN Harness: Utilize the EV CAN Harness to establish the primary connection between the gauge and your vehicle’s CAN-Bus system.
3. Utilize the Jumper Harness (if needed): The EV CAN Jumper Harness can be used to facilitate the connection to the CAN-Bus, depending on your specific vehicle setup.
4. Mount the Gauge: Install the 2 1/16 inch gauge into a 2.10 inch (54mm) diameter opening in your desired location.
5. Observe Readings: Once powered and connected, the gauge will display the real-time voltage of your EV’s high-voltage battery system (within the 200-400V range).

BENEFITS OF USING THE SPEEDHUT 2-1/16" EV ORION 200-400V BATTERY GAUGE (FOR2-HV2-EV):

• Provides real-time voltage monitoring for your high-voltage EV battery system.
• Enables informed charging decisions to protect and extend battery life.
• Helps detect early signs of electrical issues within your EV.
• Improves overall vehicle reliability through proactive voltage tracking.
• Ensures consistent and efficient performance of your electric vehicle.

FEATURES:

• Specifically designed for high-voltage (200-400V) electric vehicle battery systems.
• Communicates seamlessly with the vehicle’s CAN-Bus network at a 500K baud rate for precise data transmission.
• Compact 2 1/16 inch size allows for versatile mounting options within the vehicle’s interior.
• Requires a 2.10 inch (54mm) mounting hole for straightforward installation.
• Directly compatible with EV systems utilizing Orion control units.
• Includes a dedicated 3 ft Power & Lighting Harness for easy electrical connection and gauge illumination.
• Comes with both an EV CAN Jumper Harness and a standard EV CAN Harness to accommodate various installation needs.
