Description

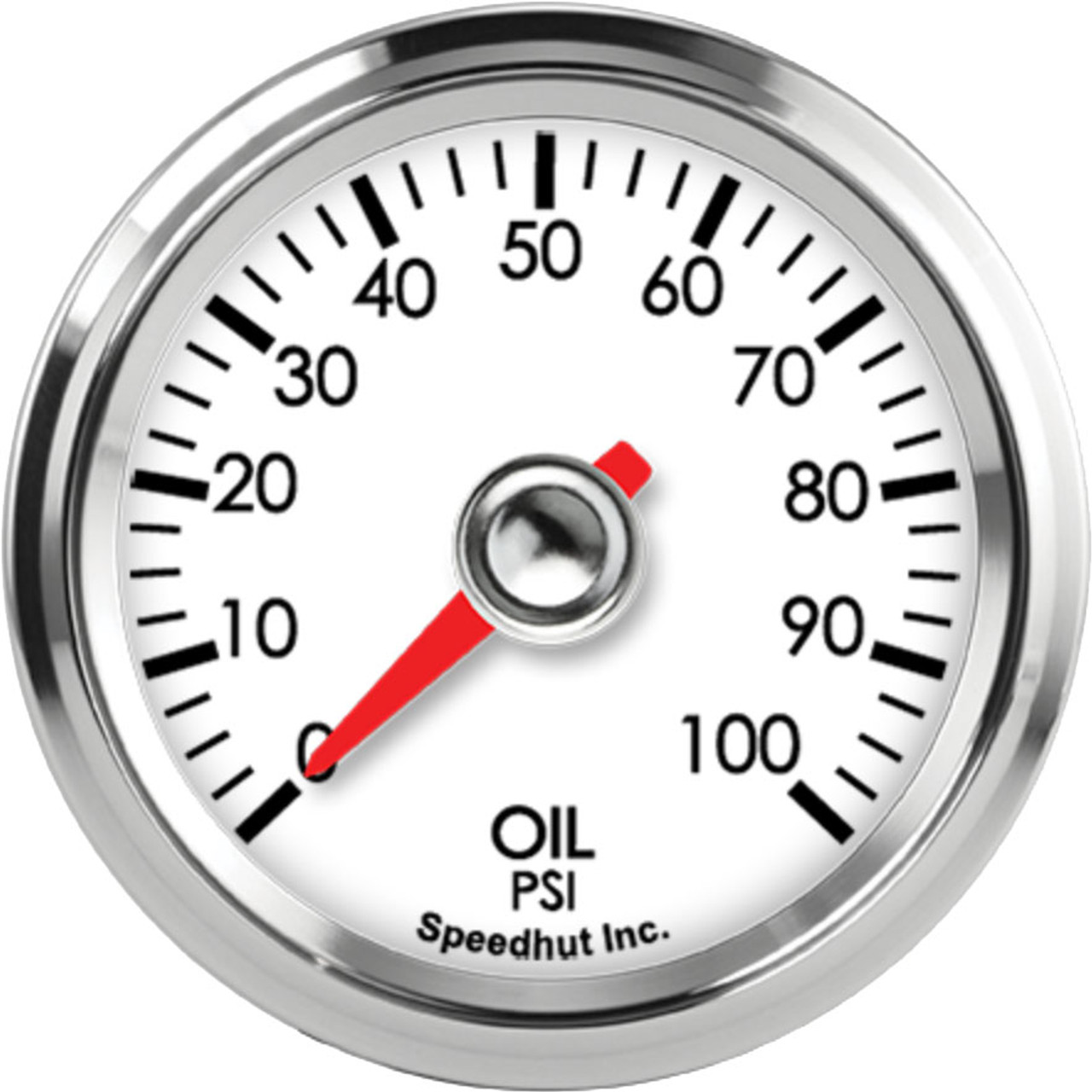

The Speedhut 2-1/16" 100 PSI Oil Pressure Gauge (L2-OP3-LEG) is a reliable instrument designed to provide accurate monitoring of your engine’s oil pressure. This analog gauge is essential for keeping track of your engine’s lubrication system, helping to ensure optimal performance and prevent potential damage. Built with quality components, it offers a clear and precise display of pressure readings.

KEY FEATURES AND BENEFITS:

• Accurate Monitoring: Provides precise readings of oil pressure from 0 to 100 PSI, allowing you to stay informed about your engine’s lubrication status.
• Reliable Sender: Utilizes a 3-Wire Military Grade Transducer (Performance) to ensure consistent and accurate pressure measurements.
• Standard Size: With a 2 1/16 inch (approximately 52mm) diameter, it fits common gauge mounting locations.
• Easy Installation: Designed for straightforward installation in a 2.05 inch (52mm) hole.
• Clear Display: Offers an easy-to-read analog display for quick and simple interpretation of oil pressure levels.
• Durable Construction: Built to withstand typical automotive environments.

SPECIFICATIONS:

• Gauge Type: Pressure Gauge
• Gauge Subtype: Oil Pressure Gauge
• Pressure Sender Type: 3-Wire Military Grade Transducer (Performance)
• Range: 0-100 psi
• Size: 2 1/16 inch
• Hole Size: 2.05 inch (52mm)
• Included: Pressure Gauge, 3-Wire Military Grade Transducer (Performance)

HOW TO USE:

1. Preparation: Ensure you have the necessary tools for installation, including a drill (if needed for the mounting hole), wiring tools, and appropriate connectors.
2. Mounting the Gauge: Locate a suitable position on your dashboard or instrument panel and create a 2.05 inch (52mm) diameter hole if one does not already exist. Secure the gauge in the hole using the provided mounting hardware.
3. Installing the Sender: Locate the appropriate port on your engine’s oil system for the pressure sender. Thread the 3-Wire Military Grade Transducer (Performance) into this port, ensuring a secure and leak-free connection.
4. Wiring the Gauge: Connect the wires from the gauge to the corresponding wires from the pressure sender and a suitable power source and ground in your vehicle’s electrical system. Refer to the wiring diagram provided with the gauge for correct connections. Typically, the 3-wire sender will have connections for signal, power, and ground. The gauge will also require power and ground.
5. Testing: Once all connections are made, start your vehicle and observe the gauge reading. Ensure the gauge responds appropriately to changes in engine oil pressure.

BENEFITS OF USING THE SPEEDHUT 2-1/16" 100 PSI OIL PRESSURE GAUGE (L2-OP3-LEG):

• Early Problem Detection: Allows you to identify drops or spikes in oil pressure, which can be early indicators of potential engine problems, helping you take preventative action.
• Engine Health Monitoring: Provides a continuous visual indication of your engine’s lubrication system health, giving you peace of mind.
• Performance Awareness: Helps you understand how your engine’s oil pressure behaves under different operating conditions.
• Preventative Maintenance: By monitoring oil pressure, you can adhere to recommended maintenance schedules and address issues before they lead to costly repairs.
• Enhanced Vehicle Information: Adds a crucial data point to your vehicle’s instrumentation, providing a more complete picture of its operational status.

FEATURES:

• Analog display provides a traditional and easily understandable visual representation of oil pressure.
• The 3-wire sender ensures a reliable signal transmission to the gauge for accurate readings.
• Compact 2 1/16 inch size allows for versatile mounting options in various vehicle interiors.
• Designed for standard automotive electrical systems, simplifying the wiring process.
• Clear 0-100 PSI range is suitable for a wide variety of vehicles and engine types.
• Robust construction ensures the gauge can withstand the demands of daily driving.
