Description

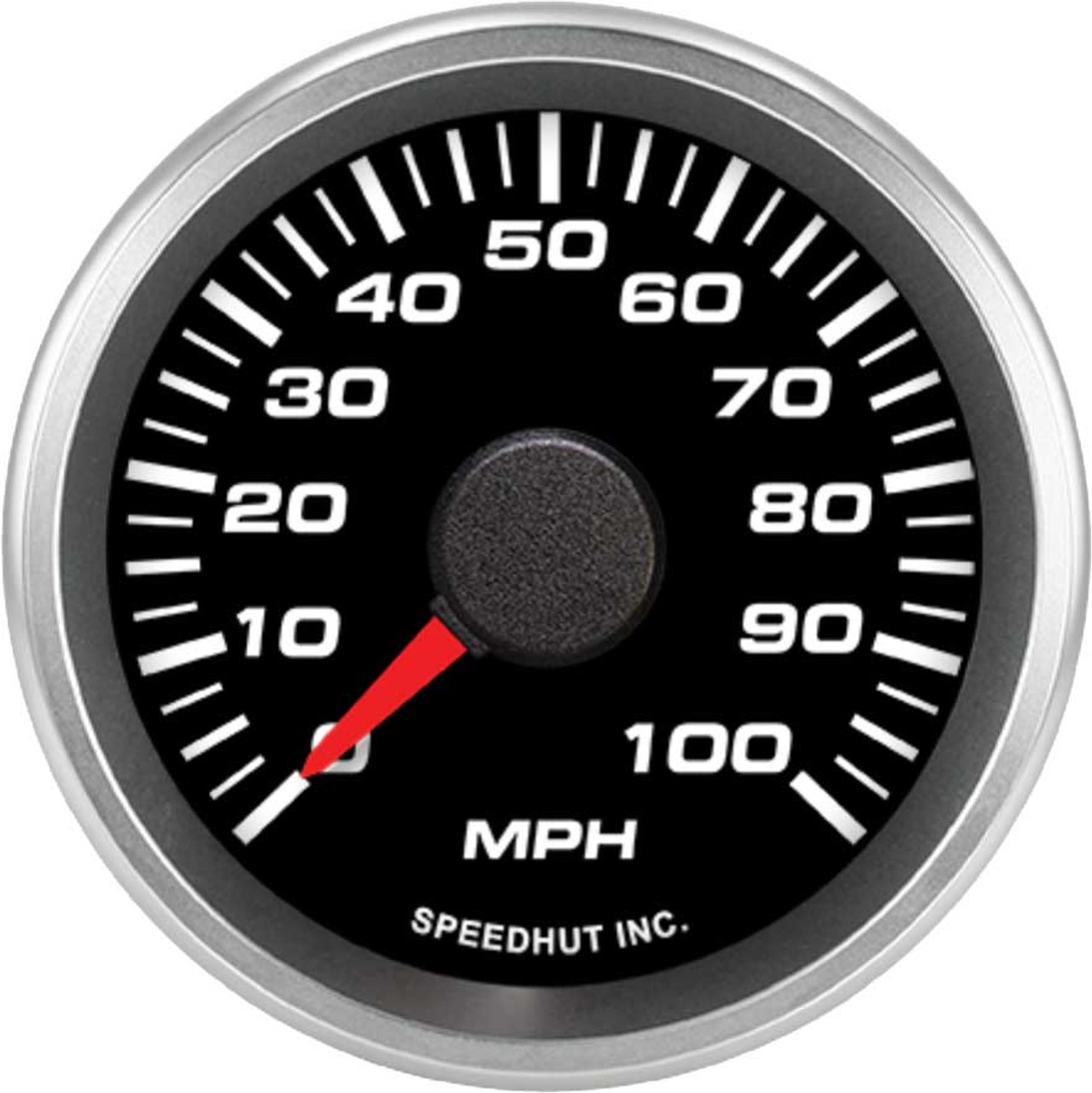

Speedhut 2-1/16" 100 mph GPS Speedometer (R2-S19-REV) offers a straightforward and highly accurate way to monitor your vehicle’s speed. Utilizing global positioning system technology, this gauge eliminates the need for traditional speed sensors and the often complicated calibration processes associated with them. Installation is simplified, requiring only a 12V power connection and the included waterproof GPS antenna. Operating worldwide without any subscription fees, this speedometer provides precise readings thanks to its internal microprocessor. The high torque stepper motor ensures smooth and accurate needle movement, even under demanding conditions. Its slim design and spin-lock mounting ring make installation easy, while the solid billet aluminum bezel adds a touch of robustness. The weather-resistant construction ensures reliable performance in various environments, and the lifetime warranty offers long-term peace of mind. Being made in America signifies quality craftsmanship.

KEY FEATURES AND BENEFITS:

• Provides highly accurate vehicle speed readings using GPS technology.
• Simplifies installation with a requirement for only 12V power and a GPS antenna.
• Eliminates the need for calibration, making setup quick and easy.
• Offers global operation thanks to free GPS technology without any subscription fees.
• Features an internal microprocessor for precise reading accuracy.
• Equipped with a high torque stepper motor ensuring accurate pointer movement in all driving conditions.
• Boasts a slim case and a spin-lock ring for easy and secure mounting.
• Includes a solid billet aluminum bezel, enhancing both appearance and robustness.
• Designed to be weather-resistant, ensuring longevity in various environmental conditions.
• Comes with a Lifetime Warranty, offering long-term peace of mind.
• Proudly manufactured in America, reflecting superior quality and craftsmanship.

SPECIFICATIONS:

• Gauge Type: Speedometer
• Speedometer Signal Type: GPS
• Range: 100 MPH
• Size: 2 1/16 inch
• Hole Size: 2.062 inches (52mm)
• Standard or Metric: Standard
• Gauge Mounting Ring: Included
• Included: 3 ft Power & Lighting Harness (for LED Lit Gauges and Clocks), GPS Antenna with 9.8 ft long cable and male SMA connector

HOW TO USE:

• Mount the Gauge: Insert the 2-1/16" speedometer into the designated 2.062" (52mm) hole. Secure it from the back using the included spin-lock mounting ring.
• Connect Power and Ground: Connect the red wire from the provided 3 ft Power & Lighting Harness to a 12V positive power source in your vehicle. Connect the black wire to a suitable ground.
• Install the GPS Antenna: Choose a location for the waterproof GPS antenna where it has a clear, unobstructed view of the sky. This could be on the dashboard, roof, or another suitable exterior or interior location.
• Connect the Antenna: Connect the male SMA connector on the 9.8 ft cable of the GPS antenna to the corresponding connector on the back of the speedometer gauge.
• Power On: Once all connections are secure, turn on your vehicle’s power. The speedometer should begin receiving GPS signals and display your speed. No calibration is necessary.

BENEFITS OF USING THE SPEEDHUT 2-1/16" 100 MPH GPS SPEEDOMETER (R2-S19-REV):

• Exceptional accuracy derived directly from GPS satellite data, eliminating potential inaccuracies from mechanical or electronic speed sensors.
• Significantly simpler installation compared to traditional speedometers, bypassing the need to locate and connect to transmission or wheel speed sensors.
• No required calibration, ensuring a hassle-free setup without needing to input tire sizes, gear ratios, or perform test drives for calibration.
• Universal compatibility, suitable for a wide range of vehicles, including those where traditional speed signal sources are unavailable or difficult to access.
• Relies on free, worldwide GPS technology, meaning no ongoing subscription costs.
• Robust construction and a lifetime warranty provide assurance of the product’s reliability and longevity.

FEATURES:

• Integrates an internal microprocessor to ensure highly precise speed readings.
• Utilizes a high torque stepper motor for smooth and accurate pointer movement during vehicle operation.
• Features a slim gauge case design for versatile mounting options.
• Includes a convenient spin-lock ring mechanism for easy and secure installation.
• Employs a solid billet aluminum bezel, enhancing both aesthetics and structural integrity.
• Designed to be weather-resistant, providing reliable performance in various environmental conditions.
• Backed by a lifetime warranty, demonstrating the manufacturer’s commitment to quality.
• Proudly manufactured in America, adhering to high standards of production.
