Description

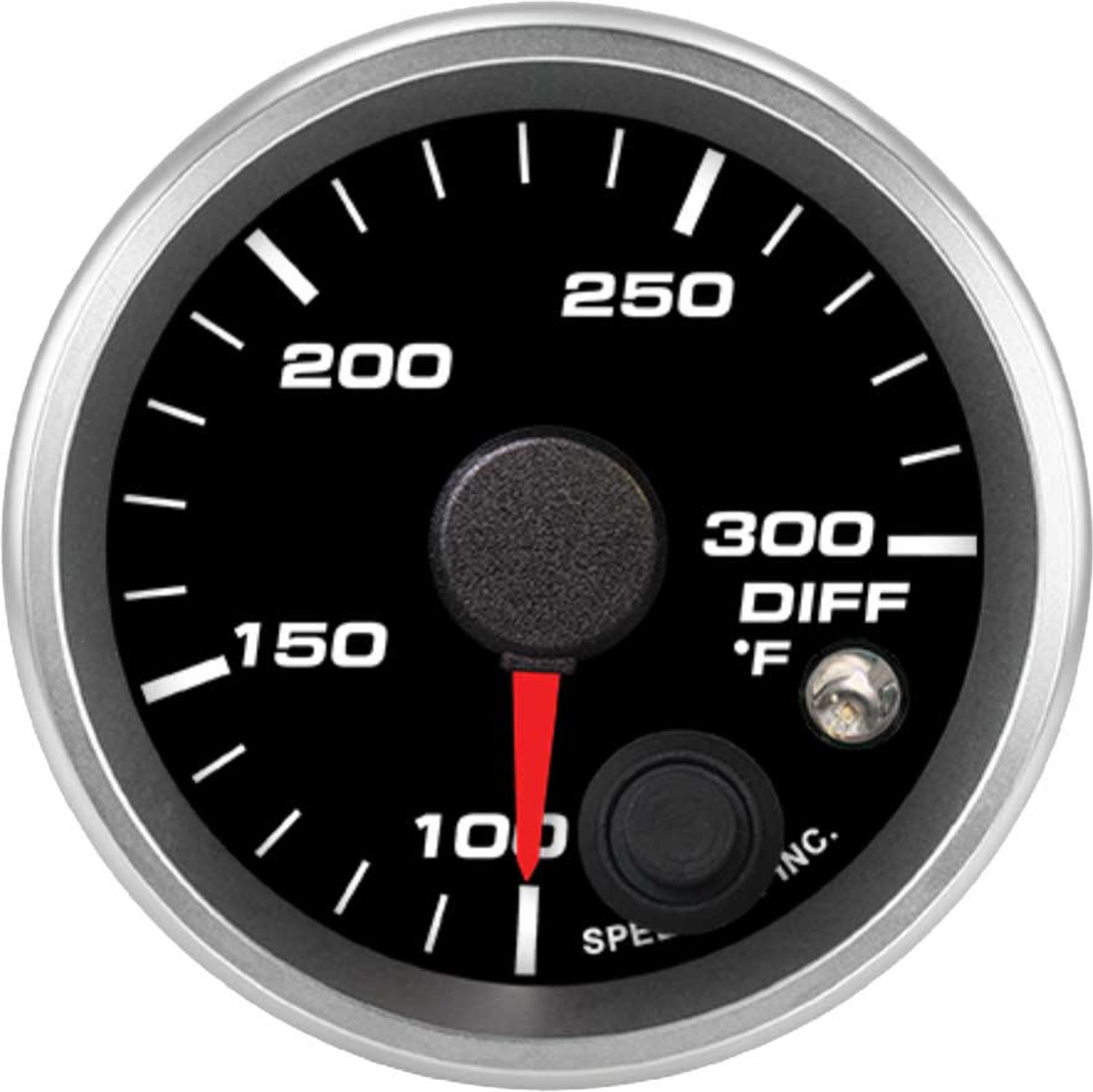

The Speedhut 2-1/16" 100-300F Diff Temp Gauge w/ Warning (R2-DT1-REV) provides precise monitoring of your vehicle’s differential fluid temperature. This essential gauge helps you maintain optimal performance and prevent potential damage caused by overheating, especially under demanding conditions like towing, off-roading, or racing. The integrated warning light offers an immediate visual alert if temperatures exceed a safe level, allowing you to take timely action. Designed for easy installation in a standard 2 1/16" (52mm) gauge opening, this Speedhut gauge delivers reliable readings and peace of mind.

KEY FEATURES AND BENEFITS:

• Accurate Differential Monitoring: Displays temperatures from 100 to 300 degrees Fahrenheit for precise insight into differential performance.
• Warning Light Integration: Includes a settable visual alert to notify you of unsafe temperature levels.
• Performance Temperature Sensor: Uses a 2-wire sender for fast and accurate temperature readings.
• Universal Fit: Designed for 2.062" (52mm) gauge pods and openings for simple installation.
• Overheat Prevention: Real-time monitoring helps avoid damage caused by excessive heat, extending the life of differential components.

SPECIFICATIONS:

• Gauge Type: Temperature Gauge
• Gauge Subtype: Differential Temperature Gauge
• Temp Sender Type: 2-Wire Temp Sender (Performance)
• Range: 100-300 F
• Size: 2 1/16 inch
• Hole Size: 2.062" (52mm)
• Standard or Metric: Standard
• Warning Light: Yes
• Ships With:
  • 3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks
  • Temperature Gauge Wiring Harness (2-Wire Cable)
  • Speedhut Temperature Sensor

HOW TO USE:

• Mount the Gauge: Locate a 2 1/16" (52mm) opening in the dashboard or pod and secure the gauge using the included hardware.
• Install the Temperature Sensor: Thread the temperature sensor into a port on the differential housing. If none exists, install a threaded bung.
• Connect the Sensor Wiring: Attach the 2-wire cable to the corresponding terminals on the gauge.
• Connect Power and Lighting: Use the 3 ft harness to wire the gauge to a 12V power source and enable internal lighting.
• Set the Warning Threshold (Optional): Follow the included instructions to set the temperature limit that triggers the warning light.
• Verify Operation: Start the vehicle and monitor the gauge to confirm accurate temperature readings and warning function.

BENEFITS OF USING THE SPEEDHUT 2-1/16" 100-300F DIFF TEMP GAUGE W/ WARNING (R2-DT1-REV):

• Proactively monitors differential fluid temperatures in real time.
• Helps detect overheating before it causes mechanical failure.
• Improves safety and reliability in high-demand driving scenarios.
• Reduces maintenance costs by extending differential lifespan.
• Easy integration into standard gauge setups with all necessary parts included.

FEATURES:

• Wide Temperature Range: Provides accurate readings between 100 and 300°F for comprehensive monitoring.
• Reliable Sensor Design: Equipped with a high-quality 2-wire performance sensor for dependable operation.
• Standard Gauge Size: Compatible with 2 1/16" openings for universal use.
• 12V System Compatible: Designed for use with standard vehicle electrical systems.
• Complete Installation Kit: Includes wiring harnesses and sensor for easy, plug-and-play setup.
