Description

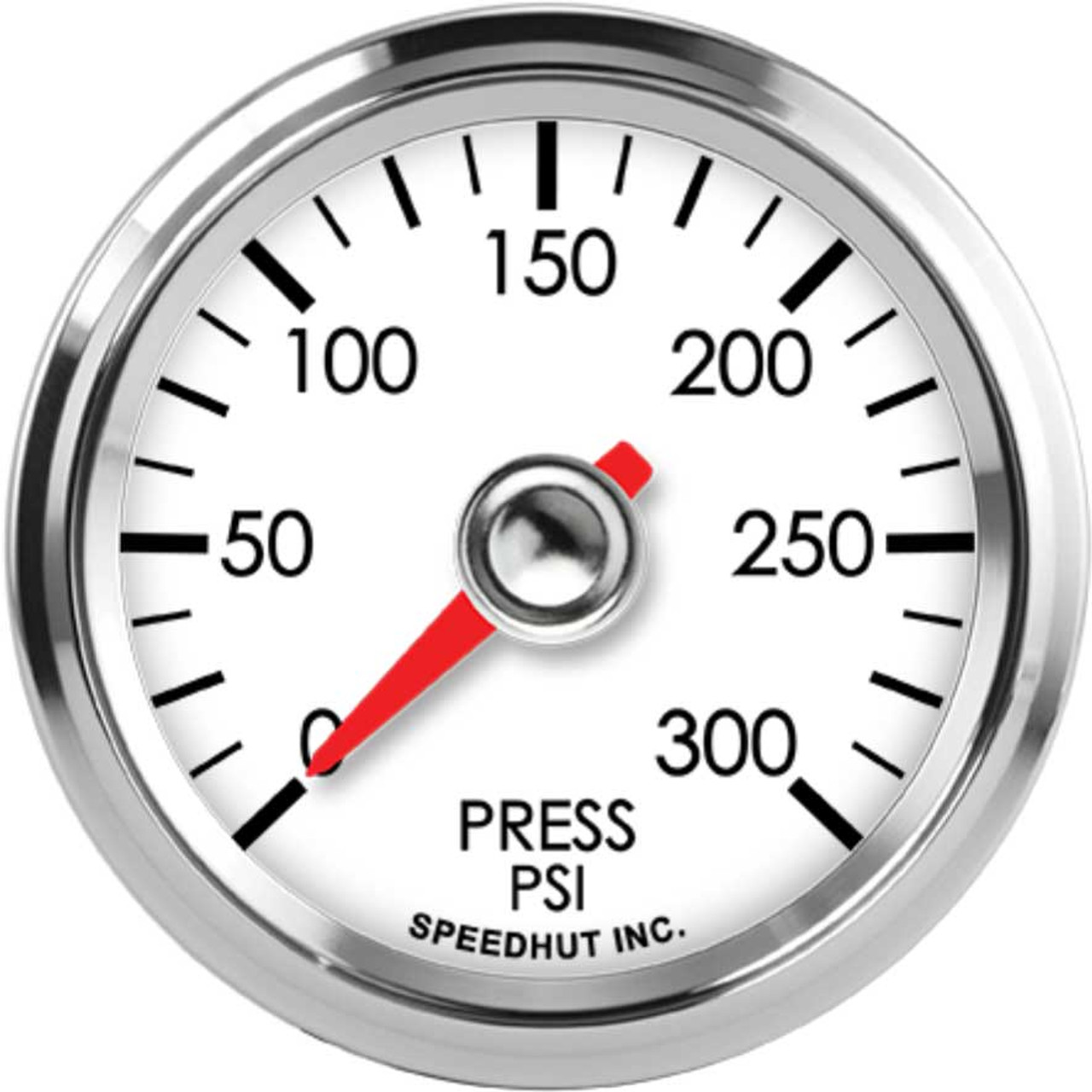

The Speedhut 2-1/16" 0-300 PSI Pressure Gauge (L2-P2-LEG) provides accurate and dependable pressure readings for various applications. Its standard 2 1/16 inch size ensures easy integration into existing gauge setups. This gauge comes equipped with a high-performance 3-wire military-grade transducer, ensuring precise measurements across its 0-300 PSI range. The included wiring harnesses simplify the installation process, allowing for quick and secure connection of both the sensor and the gauge’s LED illumination.

KEY FEATURES AND BENEFITS:

• Provides precise pressure readings: Covers a 0 to 300 PSI range for accurate monitoring.
• Utilizes a high-quality transducer: Equipped with a 3-wire military-grade sender for reliable performance.
• Standard 2 1/16 inch size: Easily fits into common gauge pods or dashboard mounts.
• Complete installation kit: Includes all necessary wiring harnesses for sensor and lighting connections.
• Secure mounting: Comes with a mounting ring for firm installation.
• LED lighting: Compatible with the supplied power and lighting harness.

SPECIFICATIONS:

• Gauge Type: Pressure Gauge
• Gauge Subtype: Generic Pressure Gauge
• Pressure Sender Type: 3-Wire Military Grade Transducer (Performance)
• Range: 0-300 psi
• Size: 2 1/16 inch
• Hole Size: 2.062 inches (52mm)
• Warning Light: No
• Gauge Mounting Ring: Included
• Ships With:
• Pressure Sensor – 300psi
• Pressure Gauge Wiring Harness (3-Wire Cable)
• 3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks

HOW TO USE:

1. Mount the Gauge: Secure the 2 1/16 inch gauge in the desired location using the included mounting ring. Ensure the mounting surface matches the gauge dimensions.
2. Install the Pressure Sensor: Position the 300 PSI sensor in your chosen monitoring location and ensure proper sealing and threading.
3. Connect the Sensor Wiring: Use the included 3-wire harness to link the sensor to the back of the gauge, matching wire colors or following the wiring diagram if provided.
4. Connect the Power and Lighting: Use the 3 ft harness to connect the gauge to the power and ground. This will also power the LED illumination.
5. Verify Connections: Double-check that all wiring is secure and correctly matched before powering on.
6. Power On: Start the system or vehicle. The gauge should illuminate and display the pressure reading accurately.

BENEFITS OF USING THE SPEEDHUT 2-1/16" 0-300 PSI PRESSURE GAUGE (L2-P2-LEG):

• Enables accurate real-time monitoring of system pressure, essential for performance and safety.
• High-quality transducer ensures consistent and reliable readings across a wide range.
• Standard size and included mounting accessories streamline integration into existing setups.
• Simplified installation thanks to included wiring for both signal and lighting needs.
• Improves system diagnostics and preventative maintenance through better pressure visibility.

FEATURES:

• Precise Measurement: Delivers accurate pressure readings within the 0-300 PSI range.
• High-Performance Sender: Employs a 3-wire military-grade transducer for enhanced accuracy and reliability.
• Standard Integration: Designed with a common 2 1/16 inch diameter for easy fitment in standard gauge pods or openings.
• Complete Wiring Solution: Includes dedicated harnesses for both the pressure sensor signal and the gauge’s power and lighting.
• Secure Mounting: Comes with a mounting ring to ensure the gauge is firmly held in place.
• Illuminated Display Ready: Compatible with LED lighting via the provided power and lighting harness for clear visibility.
