Description

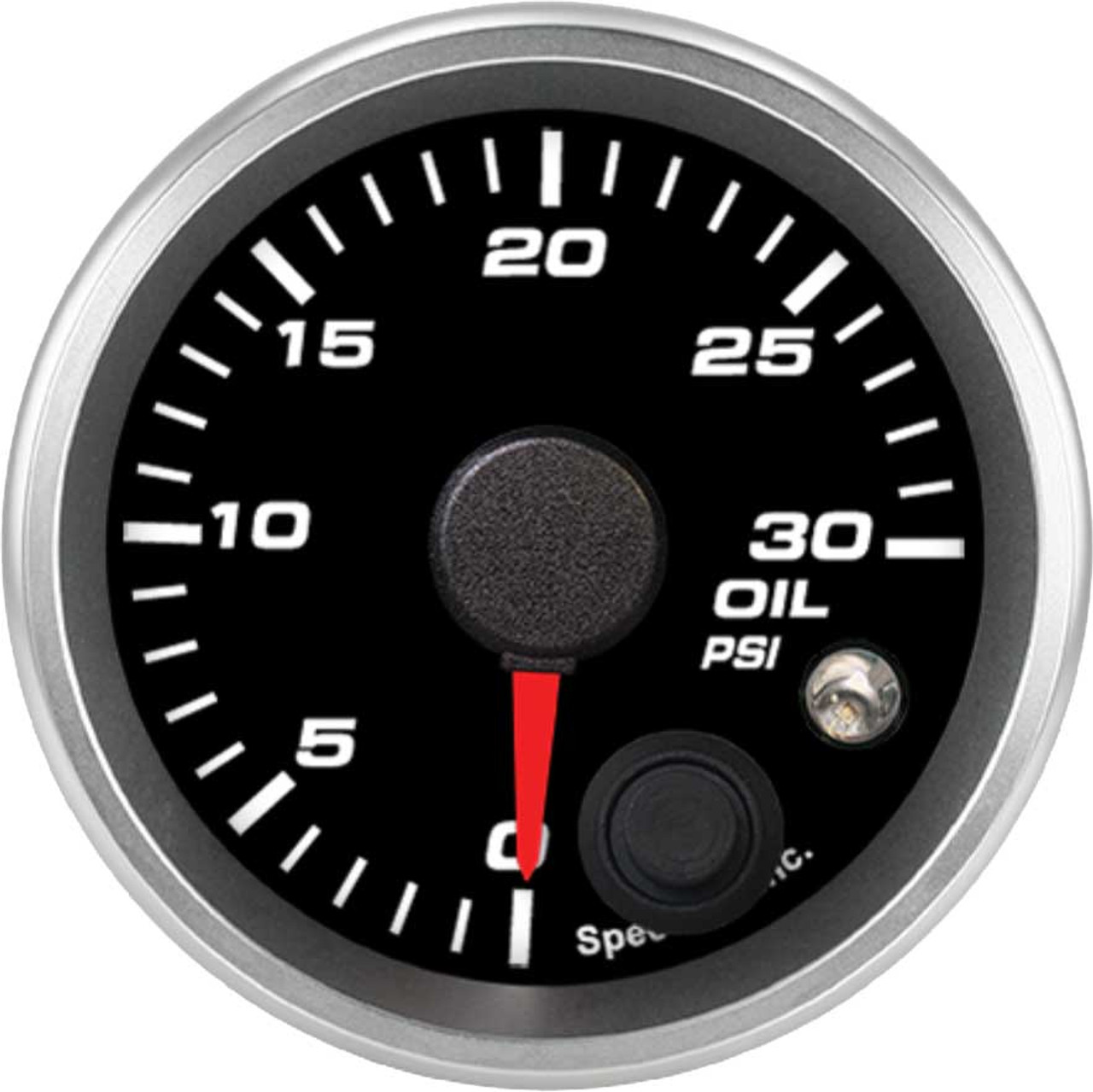

The Speedhut 2-1/16" 0-30 PSI Oil Pressure Gauge w/ Warning (R2-OP1-REV) provides accurate and reliable monitoring of your engine’s vital oil pressure. This metric-sized (52mm) gauge features a built-in warning light to alert you to potentially damaging low-pressure situations, ensuring the longevity and performance of your engine. Included with the gauge is a high-performance, 3-wire military-grade pressure transducer designed for accurate readings, along with all the necessary wiring harnesses for a straightforward installation.

KEY FEATURES AND BENEFITS:

• Accurate Monitoring: Precisely displays oil pressure readings from 0 to 30 PSI.
• Early Warning System: Integrated warning light alerts the driver to critical low oil pressure, preventing potential engine damage.
• High-Performance Sender: Comes with a robust 3-wire military-grade pressure transducer for reliable and accurate data transmission.
• Complete Wiring Included: Ships with both the pressure gauge wiring harness (3-wire cable) and a separate power and lighting harness, simplifying the installation process.
• Standard Metric Size: The 2-1/16 inch (52mm) size ensures compatibility with standard gauge pods and mounting solutions.

SPECIFICATIONS:

• Gauge Type: Pressure Gauge
• Gauge Subtype: Oil Pressure Gauge
• Range: 0-30 PSI
• Size: 2 1/16 inch (52mm)
• Hole Size: 2.062 inches (52mm)
• Pressure Sender Type: 3-Wire Military Grade Transducer (Performance)
• Warning Light: Yes
• Included:
• Pressure Gauge Wiring Harness (3-Wire Cable)
• 3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks
• Pressure Sensor – 30 PSI

HOW TO USE:

1. Mount the Gauge: Install the 2-1/16" (52mm) gauge into a suitable mounting location in your vehicle. Ensure the mounting hole size is 2.062 inches (52mm).
2. Install the Pressure Sender: Locate an appropriate port on your engine’s oil system and install the included 3-wire pressure sensor. Typically, this is a 1/8" NPT thread, but ensure compatibility with your engine.
3. Connect the Wiring Harness (Sensor): Connect the 3-wire cable from the pressure gauge to the corresponding terminals on the 3-wire pressure sender. Refer to the wiring diagram provided for correct connections.
4. Connect the Power and Lighting Harness: Connect the 3 ft power and lighting harness to the gauge. Typically, this will involve connecting to a 12V power source, ground, and an optional illumination circuit (e.g., headlight switch) for nighttime visibility.
5. Verify Connections: Double-check all wiring connections to ensure they are secure and correct.
6. Test the Gauge: Start your vehicle and observe the oil pressure reading on the gauge. Ensure the readings are within the expected range for your engine.
7. Set the Warning Light (if applicable): Some models allow you to set a threshold for the warning light. Consult the gauge’s instructions for how to set the desired low-pressure warning point.

BENEFITS OF USING THE SPEEDHUT 2-1/16" 0-30 PSI OIL PRESSURE GAUGE W/ WARNING (R2-OP1-REV):

• Proactively Monitor Engine Health: By constantly displaying oil pressure, you can identify potential issues before they lead to significant engine damage.
• Receive Immediate Alerts: The integrated warning light provides an instant visual cue if your oil pressure drops to a critical level, giving you time to react and prevent costly repairs.
• Ensure Optimal Lubrication: Knowing your oil pressure helps you confirm that your engine is receiving adequate lubrication for optimal performance and longevity.
• Easy Installation: The inclusion of all necessary wiring harnesses and a detailed sender simplifies the installation process.
• Accurate and Reliable Readings: The 3-wire military-grade pressure transducer ensures precise and dependable oil pressure measurements.

FEATURES:

• Displays oil pressure readings clearly from 0 to 30 PSI.
• Equipped with a distinct warning light that illuminates when pressure falls below a critical point.
• Utilizes a high-quality 3-wire military-grade transducer for enhanced accuracy and durability.
• Designed with a standard 2-1/16 inch (52mm) metric size for versatile mounting options.
• Includes a dedicated 3-wire wiring harness specifically for the pressure sensor connection.
• Comes with a separate 3 ft power and lighting harness for easy electrical hookup.
• The required 30 PSI pressure sensor is included with the gauge.
