Description

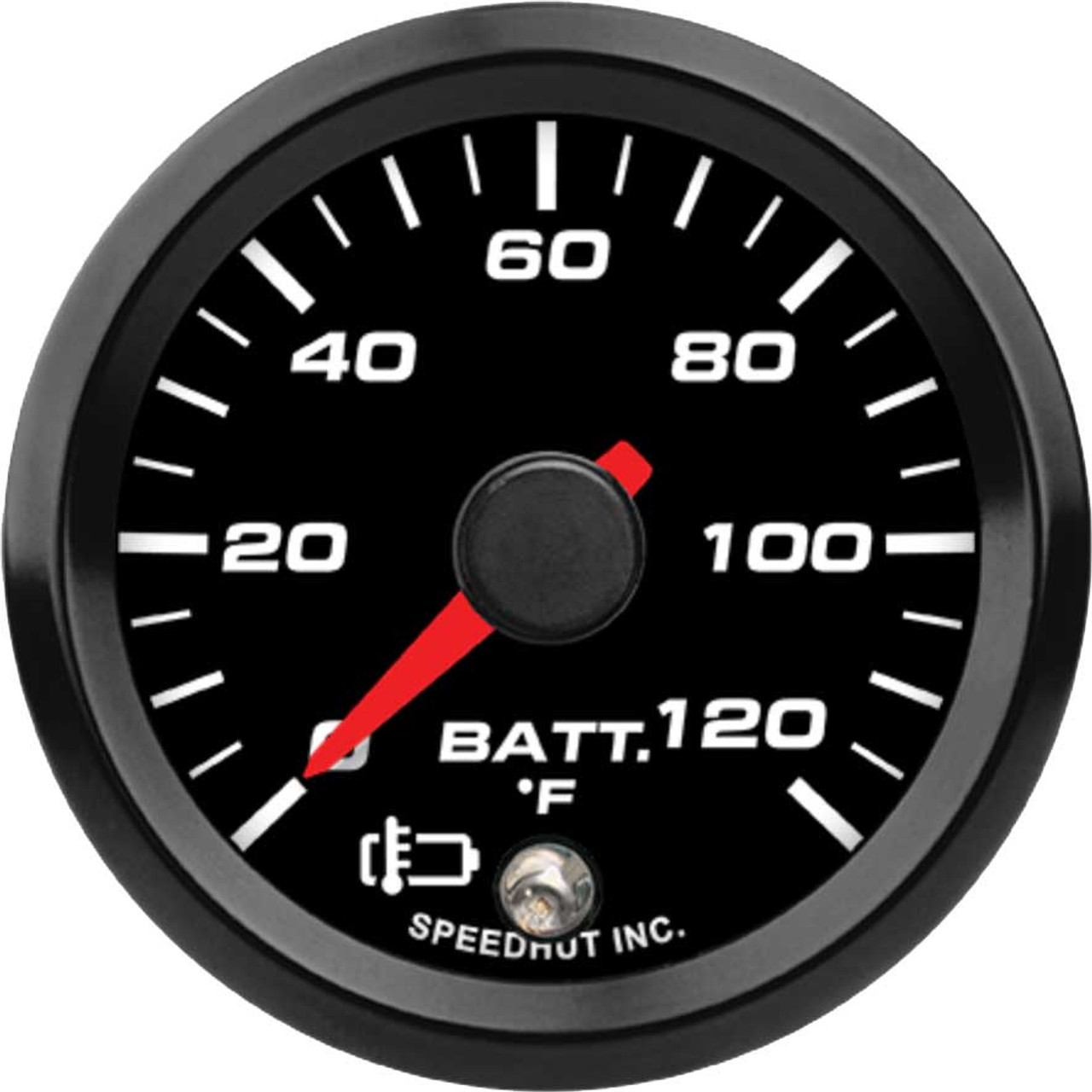

The Speedhut 2-1/16" 0-120F EV Battery Temp Gauge w/ Warning (FOR2-T5-EV) is a crucial instrument engineered for precise monitoring of your electric vehicle’s battery system temperature. This gauge provides real-time thermal data, enabling you to maintain optimal operating conditions for enhanced battery performance and extended lifespan. Designed for seamless integration with your EV’s CAN-bus network (operating at a 500K baud rate), it delivers accurate temperature readings directly from your vehicle’s communication system. The gauge features a clear 0-120F measurement range and a built-in warning light that activates when the temperature exceeds 100F, providing an immediate alert to potential overheating. Its standard 2-1/16" size ensures easy installation in various gauge setups.

KEY FEATURES AND BENEFITS:

• Real-time Temperature Monitoring: Provides continuous and accurate readings of your EV battery’s temperature, allowing you to observe its thermal behavior.
• CAN-Bus Integration: Connects directly to your vehicle’s CAN-bus system (500K baud rate) for reliable and direct data acquisition.
• Over-Temperature Warning: Features an integrated warning light that illuminates when the battery temperature rises above 100F, alerting you to potential issues.
• Standard Size: The 2-1/16" (54mm) diameter ensures compatibility with common gauge pods and mounting solutions.
• Essential for Battery Health: Monitoring and maintaining optimal battery temperature contributes to improved performance and prolonged battery life.
• Easy Installation: Comes with necessary harnesses for power, lighting, and CAN-bus connection.

SPECIFICATIONS:

• Gauge Type: EV Battery Temp
• Signal Type: CAN-Bus (500K baud rate)
• Range: 0-120F
• Size: 2 1/16 inch
• Hole Size: 2.10" (54mm)
• Included:
• 3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks
• EV CAN Jumper Harness
• EV CAN Harness

HOW TO USE:

1. Preparation: Identify a suitable mounting location for the 2-1/16" gauge. Ensure you have the necessary tools for installation.
2. Power and Lighting Connection: Connect the 3 ft Power & Lighting Harness to a suitable 12V power source and ground in your vehicle. This harness will also power the gauge’s illumination.
3. CAN-Bus Connection: Locate the CAN-bus network in your electric vehicle. Using the provided EV CAN Jumper Harness and EV CAN Harness, connect the Speedhut gauge to the CAN-bus. Ensure proper connection to the correct CAN high and CAN low wires.
4. Mounting the Gauge: Insert the gauge into the 2.10" (54mm) mounting hole and secure it using the appropriate hardware (usually included with the gauge).
5. Verification: Once all connections are made, turn on your vehicle. The gauge should power up and display the EV battery temperature. Observe if the warning light illuminates when the temperature exceeds 100F.

BENEFITS OF USING THE SPEEDHUT 2-1/16" 0-120F EV BATTERY TEMP GAUGE W/ WARNING (FOR2-T5-EV):

• Enhanced Awareness: Provides a clear, real-time view of your EV battery’s temperature, keeping you informed about its operating conditions.
• Proactive Protection: The integrated warning system alerts you to potential overheating, allowing you to take necessary actions to prevent damage or performance degradation.
• Optimized Performance: By monitoring and maintaining optimal battery temperatures, you can contribute to maximizing your EV’s range and efficiency.
• Increased Battery Lifespan: Consistent monitoring and avoidance of extreme temperatures can help prolong the overall lifespan of your expensive EV battery.
• Seamless Integration: The CAN-bus connectivity ensures accurate data and a clean installation without the need for additional sensors in many cases.

FEATURES:

• Compact and Clear Display: The 2-1/16" format offers a balance of visibility and ease of mounting in various locations.
• Integrated Visual Warning: A dedicated light signals when the battery temperature surpasses the 100F threshold.
• Durable Construction: Built with quality materials to withstand the automotive environment.
• Illuminated Display: Ensures clear readability in all lighting conditions via the power and lighting harness.
