Description

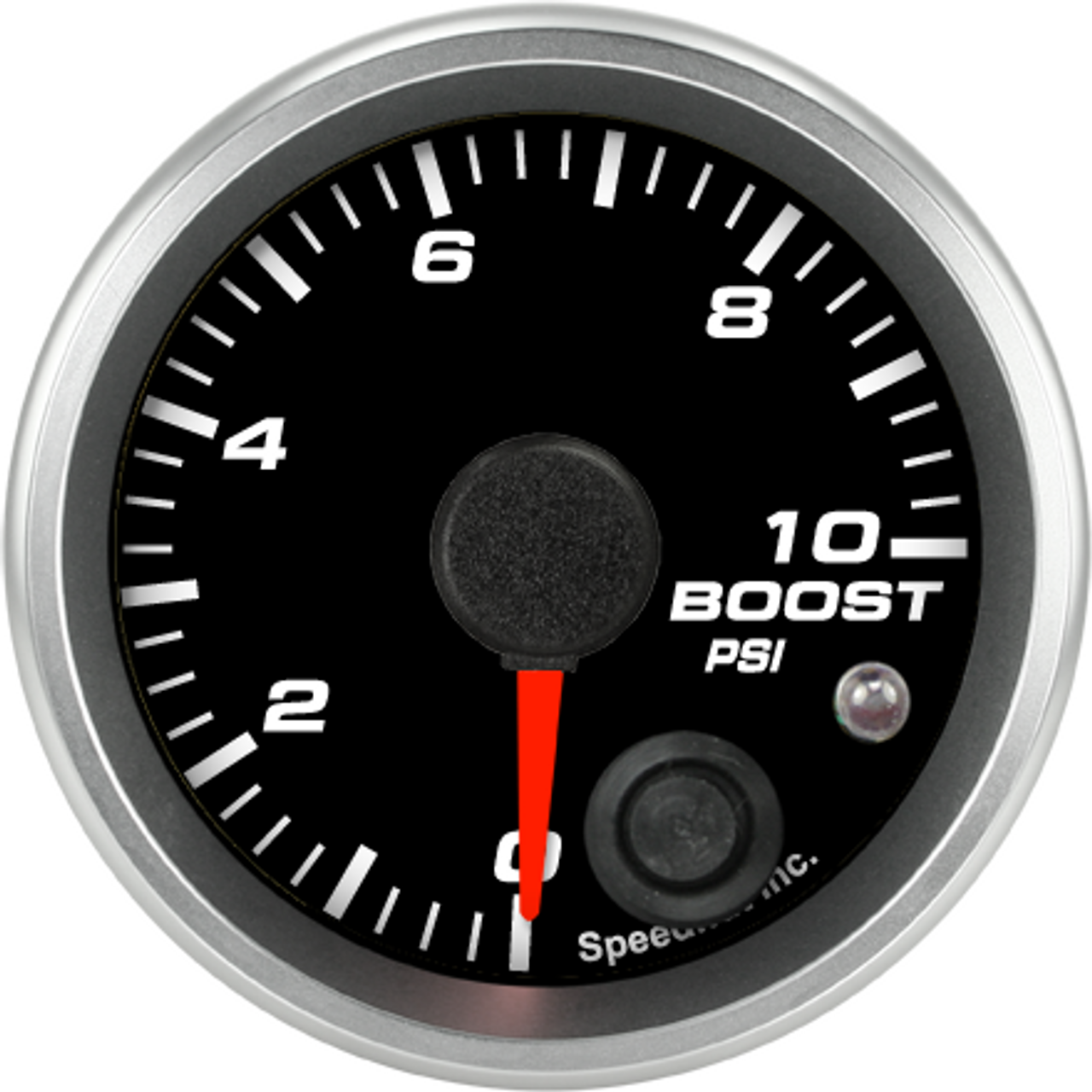

The Speedhut 2-1/16" 0-10 PSI Boost Gauge w/ Warning (R2-B1-REV) is a vital instrument for monitoring the performance of turbocharged or supercharged engines. This gauge provides real-time readings of both positive pressure (boost) and negative pressure (vacuum) within the intake manifold, allowing drivers to stay informed about their engine’s operational status. Equipped with a programmable warning light, this gauge helps prevent potential engine damage from over-boosting. Its 2-1/16" size ensures compatibility with standard aftermarket gauge pods, making installation straightforward. The included high-performance, 3-wire military-grade pressure transducer guarantees accurate and reliable measurements, providing drivers with the critical data needed to maintain optimal engine health and performance.

KEY FEATURES AND BENEFITS:

• Dual Functionality: Measures both boost (positive pressure) and vacuum (negative pressure), offering a comprehensive view of the engine’s intake system.
• Over-Boost Protection: Integrated warning light alerts the driver when boost pressure exceeds a user-defined threshold, helping to prevent potential engine damage.
• Accurate Readings: Utilizes a 3-wire military-grade pressure transducer, ensuring precise and dependable pressure measurements for informed monitoring.
• Standard Size: The 2-1/16" (52mm) diameter fits seamlessly into most aftermarket gauge pods and mounting solutions.
• Complete Installation Kit: Ships with all necessary components, including the pressure sensor, wiring harnesses for power, lighting, and signal transmission, simplifying the installation process.

SPECIFICATIONS:

• Gauge Type: Boost/Vacuum Gauge
• Range: 0-10 psi
• Size: 2 1/16 inch (52mm)
• Pressure Sender Type: 3-Wire Military Grade Transducer (Performance)
• Warning Light: Yes
• Included: Pressure Sensor (30 psi), 3 ft Power & Lighting Harness, Pressure Gauge Wiring Harness (3-Wire Cable)

HOW TO USE:

1. Mount the Gauge: Securely install the 2-1/16" gauge in your desired location using a compatible gauge pod or mounting solution. Ensure the mounting hole is 2.062 inches (52mm).
2. Install the Pressure Sensor: Mount the provided 30 psi pressure sensor in a suitable location on the engine’s intake manifold where boost/vacuum pressure can be accurately measured.
3. Connect the Wiring Harnesses:
   • Connect the 3-wire cable from the pressure sensor to the corresponding terminals on the back of the gauge.
   • Connect the 3 ft power and lighting harness to a suitable power source in your vehicle (typically ignition-switched power and ground) and to the gauge to power it and the LED illumination.
4. Connect the Vacuum/Boost Line: Run a vacuum/boost line from the intake manifold to the pressure sensor. Ensure all connections are secure and leak-free.
5. Set the Warning Threshold (if applicable): Follow the gauge’s instructions to set the desired boost pressure level at which the warning light will activate.
6. Monitor Readings: Once installed and powered, the gauge will display real-time boost and vacuum readings. Pay attention to these readings during vehicle operation to ensure optimal performance and identify any potential issues.
7. Heed Warnings: If the warning light illuminates, it indicates that the boost pressure has exceeded the set threshold. Take appropriate action to reduce boost and prevent potential engine damage.

BENEFITS OF USING THE SPEEDHUT 2-1/16" 0-10 PSI BOOST GAUGE W/ WARNING (R2-B1-REV):

• Provides real-time monitoring of boost and vacuum pressure, giving immediate feedback on engine performance.
• Helps prevent engine damage with a programmable warning light that alerts for over-boost conditions.
• Delivers precise pressure data through a durable military-grade transducer, ideal for tuning and troubleshooting.
• Offers an easy-to-install solution that fits standard 2-1/16" gauge pods.
• Improves driving safety and performance by ensuring forced induction systems operate within safe limits.

FEATURES:

• Displays both positive (boost) and negative (vacuum) pressure.
• Equipped with a user-programmable visual warning for over-boost conditions.
• Utilizes a highly reliable and accurate 3-wire pressure sensor designed for performance applications.
• Compact 2-1/16" (52mm) size for versatile mounting options.
• Designed for standard unit readings (psi).
• Illuminated for clear visibility during both day and night driving.
• Comes with a pressure sensor capable of reading up to 30 psi for enhanced accuracy within the 0-10 psi range.
• Includes a dedicated 3-wire cable for seamless connection between the sensor and the gauge.
• Features a separate power and lighting harness for easy electrical integration.
