Description
6″ BASIC SYSTEM W/ DIRT LOGIC SHOCKS – K7006DL
2006-09 TOYOTA FJ 2WD/4WD

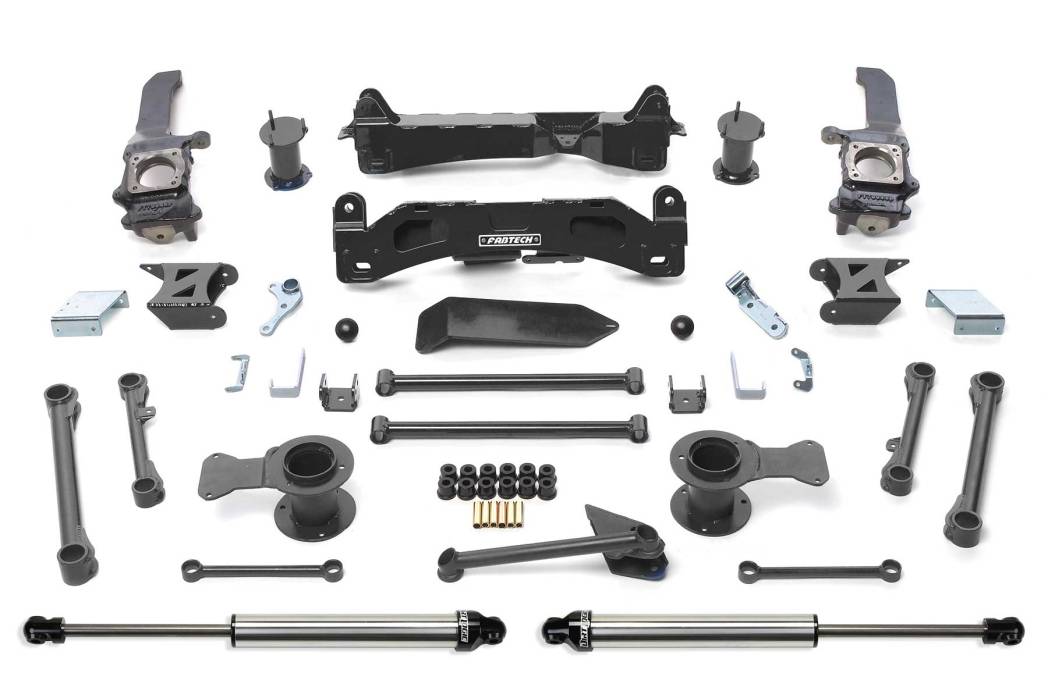

Fabtech’s FJ system features extended length steering knuckles attaching to one piece lower control arm crossmembers for a full 6 inches of lift to clear 35" tires. Front lower crossmembers feature adjustable alignment cams along with an integrated 1/4" thick steel differential skid plate. The Basic system retains the front strut assembly for a smooth highway ride with ease of installation. The Basic rear suspension systems include tubular upper and lower link arms, utilizing the stock rear coil springs for a supple highway ride with excellent offroad articulation. Installation does not require relocation of the Rack and Pinion or disassembly of the front strut assemblies. The stock front and rear driveshafts are retained due to Fabtech’s precise suspension geometry.
FEATURES
- Heavy Duty 1/4" Thick, High Arched Crossmember
- Ductile Iron Steering Knuckles
- Heavy Duty 1/4" Thick Steel Skid Plate
- Front Shock Spacer
- Impact Struts
- Sway Bar links
- Rear Upper & Lower Link Arms
- Rear Coil Spring Spacers
PART NUMBERS
| OTY | PART # | DESCRIPTION |
|---|---|---|
| 1 | FTS26016BK | COMPONENT BOX 1 |
| 1 | FTS26017BK | COMPONENT BOX 2 |
| 1 | FTS26010BK | COILOVER SPACER KIT |
| 1 | FTS26018BK | REAR BOX KIT |
| 2 | FTS810542 | REAR DIRT LOGIC 2.25 NON RESI |
FOOTNOTES
68. Kit does not fit models with factory electronic controlled shocks.
