Description

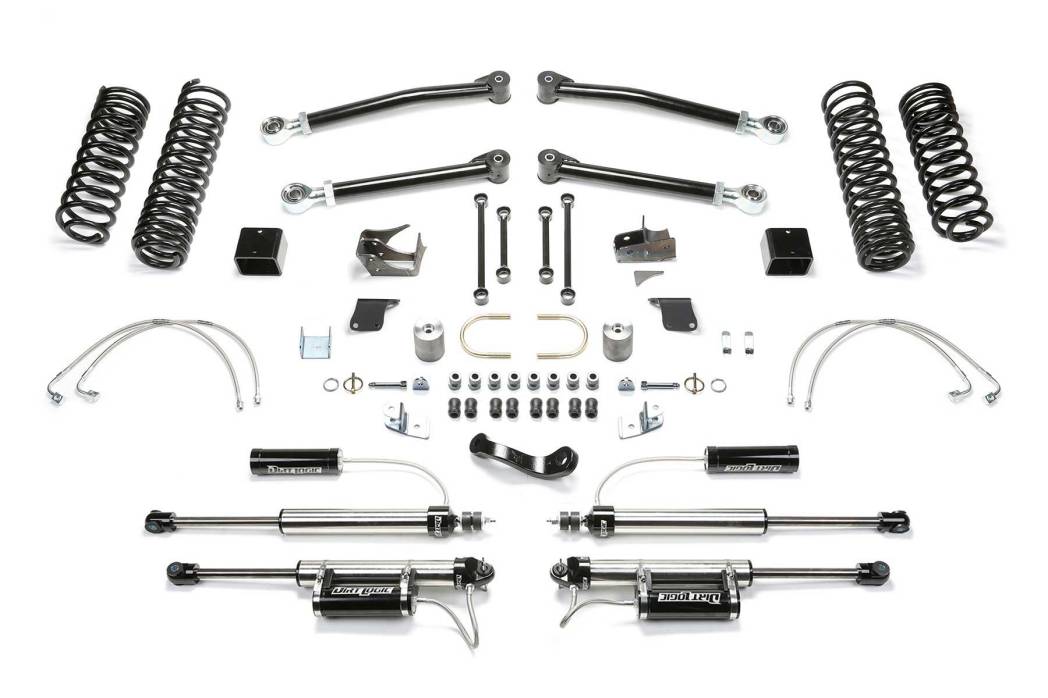

5″ TRAIL LONG TRAVEL SYSTEM W/ DIRT LOGIC 2.25 RESI SHOCKS – K4069DL
2007-18 JEEP JK 4WD [2-DOOR]
This Short Arm system replaces all four lower link arms due to their vulnerability to offroad obstacles during offroad use.
The heavy duty Link Arms have factory parallel joint angles to reduce bushing wear. Constructed of .250″ thick wall tubing they are guaranteed not to bend. Fabtech’s 5 Ton Joints® are included and come with a lifetime warranty against wearing out. The weld on 1/4″ thick steel Track Bar brackets properly maintain the roll center of the vehicle with the increased ride height.
System includes Fabtech’s Standard coil springs for balanced on and offroad suspension performance.
Great system for rocks, trail and overland expedition use.
FEATURES
- Front & Rear Lower Short Arm Links
- Front & Rear Long Travel Coil Springs
- Front Lower Long Travel Shock brackets
- Front & Rear Sway Bar LInks
- Front & Rear Track Bar Brackets
- Pitman Arm
- Front & Rear Brake Lines
- E-brake Bracket
- Front Bump Stop Extensions
- Rear Bump Stop Brackets
- Optional Upper Links available.
PART NUMBERS
| OTY | PART # | DESCRIPTION |
|---|---|---|
| 1 | FTS24143 | FRONT & REAR LONG TRAVEL COILS |
| 1 | FTS24128 | FRONT & REAR SHORT ARM LOWER LINKS |
| 1 | FTS24131 | LONG TRAVEL BOX KIT |
| 2 | FTS800222 | FRONT DIRT LOGIC 2.25 W/RESI |
| 2 | FTS801102 | REAR DIRT LOGIC 2.25 W/RESI |
FOOTNOTES
50. Installation requires welding.
249. For heavy offroad use, front driveshaft is required. Order FTS94057.
250. For heavy offroad use, rear driveshaft is required. See a quality driveline supplier to order.
