Description

The FiTech Ultra Ram 650 HP EFI w/In-Tank Module and Regulator (36231) is designed to modernize small block Chevy engines by replacing traditional carburetors with a self-tuning electronic fuel injection system. This kit provides improved engine performance, better fuel economy, and easier tuning for a wide range of applications, from stock rebuilds to high-performance builds.

KEY FEATURES AND BENEFITS:

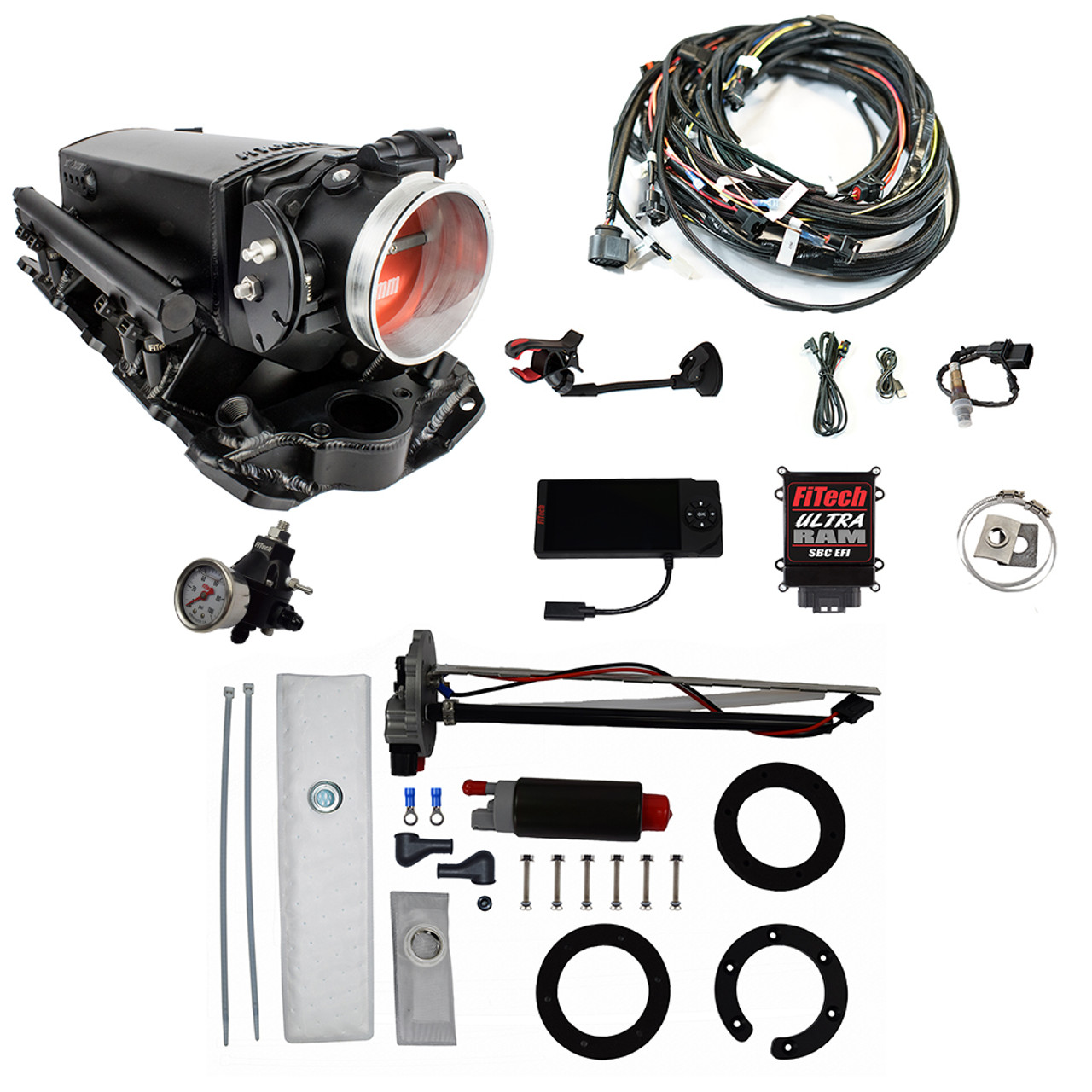

• This kit features a complete EFI conversion system, including an Ultra Ram intake manifold, a 92mm throttle body, 36 lbs/hr fuel injectors, and an ECU.
• The self-learning technology allows the system to automatically adjust fuel delivery, optimizing performance.
• The included in-tank 340 LPH fuel pump and adjustable fuel pressure regulator ensure consistent fuel delivery.
• Compatibility with various fuel types, including alcohol, gasoline, methanol, and flex fuel, adds versatility.

SPECIFICATIONS:

• Maximum Horsepower: 650 HP
• Injection Style: Multi-port
• Timing Control Compatible: Yes
• Power Adder Compatible: Forced induction
• ECU Included: Yes
• Fuel Pump Included: Yes (In-tank, 340 LPH)
• Metering Style: Speed density (Map-N)
• Intake Material: Aluminum (Black Anodized)
• Throttle Body Mounting Flange: GM LS2 4-bolt
• Venturi Diameter: 92 mm
• Airflow Rate: 1250 cfm
• Injector Size: 36 lbs/hr
• Fuel Pressure Regulator: Adjustable 30-70 psi
• Fuel Type: Alcohol, Gasoline, Methanol, Flex Fuel
• Compatibility: Small Block Chevy Engines

HOW TO USE:

• Remove the existing carburetor and intake manifold.
• Install the FiTech Ultra Ram intake manifold onto the engine.
• Mount the 92mm throttle body and connect the included sensors (MAP, IAT, TPS).
• Install the 36 lbs/hr fuel injectors into the fuel rails.
• Install the in-tank fuel pump and connect the fuel lines.
• Connect the wiring harness to the ECU and engine components.
• Install the oxygen sensor into the exhaust system.
• Connect the fuel pressure regulator and adjust to the desired pressure.
• Program the ECU with the initial engine parameters.
• Start the engine and allow the self-learning system to adjust fuel delivery.

BENEFITS OF USING THE FITECH ULTRA RAM 650 HP EFI W/IN-TANK MODULE AND REGULATOR (36231):

• Improved engine performance and throttle response.
• Enhanced fuel efficiency.
• Simplified engine tuning with self-learning technology.
• Consistent fuel delivery across varying engine conditions.
• Modernized engine operation for classic vehicles.
• Increased engine reliability.
• Ability to use multiple fuel types.

FEATURES:

• Black anodized aluminum intake manifold.
• 92mm throttle body with 1250 cfm airflow.
• 36 lbs/hr high-flow fuel injectors.
• Complete wiring harness and sensor package.
• Adjustable fuel pressure regulator for precise control.
• In-tank 340 LPH fuel pump for reliable fuel delivery.
• Self-learning ECU for automatic fuel adjustments.
• Compatible with forced induction power adders.
• Multi-fuel compatibility.
