Description

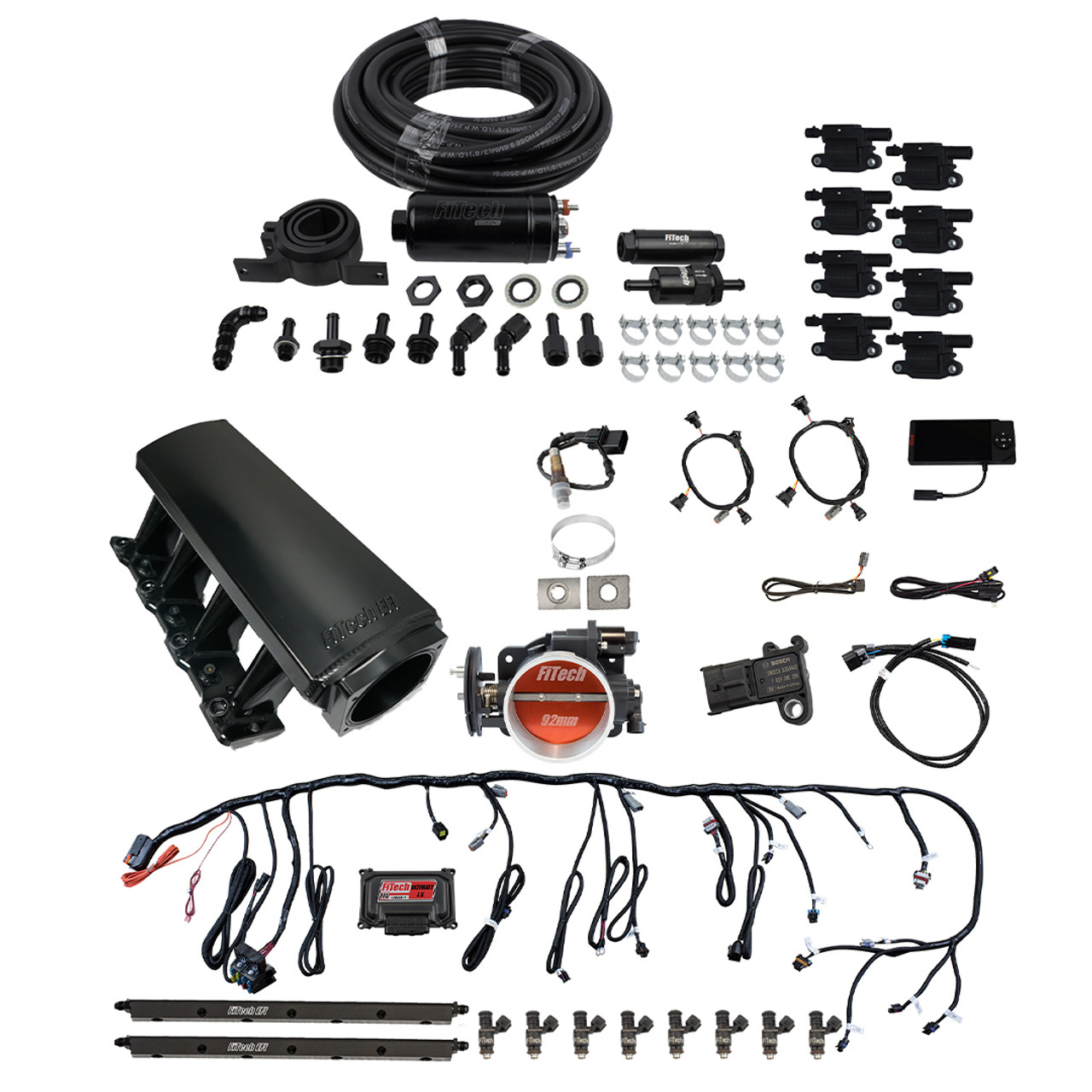

The FiTech LS1/LS2/LS6 500HP w/Inline Fuel Pump & LED Coil Pack (79106) provides a complete solution for converting your LS engine to electronic fuel injection. This kit is designed for Cathedral Port LS1/LS2/LS6 heads and offers a user-friendly upgrade with self-tuning capabilities and a powerful 500 horsepower rating.

KEY FEATURES AND BENEFITS:

• Multi-Port Fuel Injection: Delivers optimal fuel efficiency and performance.
• Self-Tuning ECU: Features a 4.5-inch touchscreen for easy setup and adjustments.
• 92mm Throttle Body: Ensures optimal airflow for better engine response.
• High-Volume Fuel Rails: Designed to support 36 lbs/hr injectors for consistent fuel delivery.
• Complete Wiring Harness: Simplifies installation and ensures all components connect seamlessly.
• Inline Fuel Pump Kit: Included to maintain consistent fuel pressure and delivery.
• Timing Control Compatibility: Allows for precise engine management with user-tunable settings.

SPECIFICATIONS:

• Fuel Injection Style: Multi-port
• Maximum Horsepower: 500 HP
• Throttle Body: 92mm, cast aluminum
• Injectors: 36 lbs/hr
• ECU: Included, self-tuning
• Intake Manifold: Fabricated aluminum, black anodized
• Fuel Pump: Inline pump kit included
• Wiring: Complete harness included
• Sensors: O2, MAP, IAT, TPS, IAC included
• Compatibility: 24X and 58X crank/cam signals, car/truck coils
• Fuel Types: Alcohol, Gasoline, Methanol, Flex

HOW TO USE:

• Remove Existing Components: Detach the existing carburetor and intake manifold.
• Install Intake Manifold: Mount the FiTech aluminum intake manifold onto the engine.
• Attach Throttle Body: Secure the 92mm throttle body to the intake manifold.
• Install Fuel Rails and Injectors: Mount the fuel rails and insert the 36 lbs/hr injectors.
• Connect Wiring Harness: Plug in the wiring harness to the ECU and engine sensors.
• Mount Sensors: Install the O2, MAP, IAT, TPS, and IAC sensors.
• Install Fuel Pump: Mount the inline fuel pump and connect the fuel lines.
• Connect Coil Packs: Attach the included LED coil packs.
• Connect Touchscreen Controller: Plug in the 4.5-inch touchscreen controller.
• Initial Setup: Follow the on-screen instructions for initial setup and self-tuning.

BENEFITS OF USING THE FITECH LS1/LS2/LS6 500HP W/INLINE FUEL PUMP & LED COIL PACK (79106):

• Improved engine performance and horsepower.
• Enhanced fuel efficiency through precise fuel delivery.
• Simplified tuning with self-tuning capabilities.
• Modernized engine control with electronic fuel injection.
• Reliable operation with high-quality components.
• Wide fuel type compatibility for versatile applications.

FEATURES:

• Durable Construction: Black anodized aluminum components for corrosion resistance.
• High-Flow Throttle Body: Cable-operated for maximum airflow.
• Accurate Monitoring: Bosch wideband-controlled oxygen sensor included.
• Stainless Steel Bung: For oxygen sensor installation.
• Flexible Connections: AN fittings and fuel crossover included.
• Programmable Touchscreen Controller: Hand-held with data log features.
• Metering Options: Capable of both Speed Density (Map-N) or Speed Throttle (Alpha-N) metering.
• Complete Kit: Includes all necessary sensors and hardware for installation.
