Description

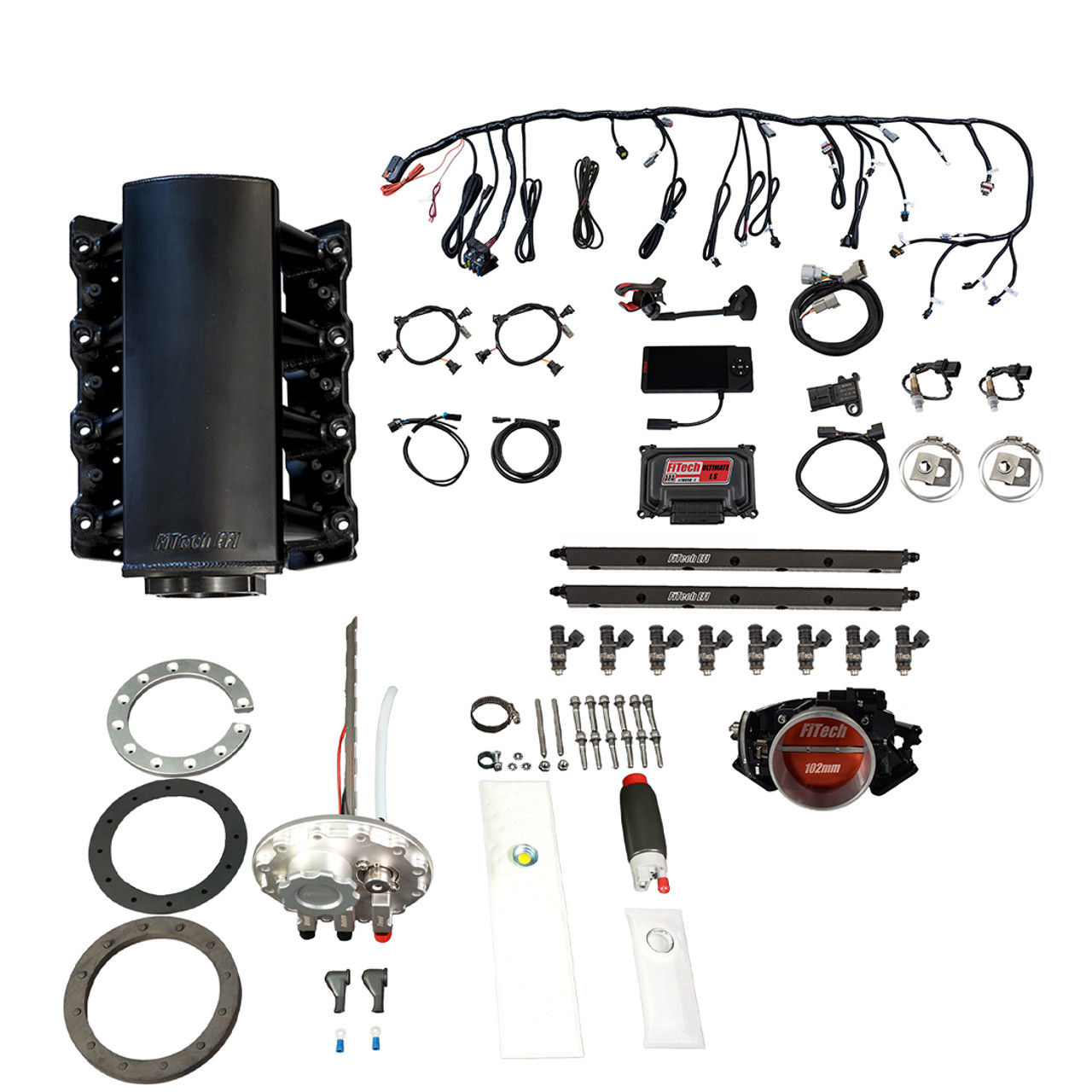

The FiTech LS 750HP EFI Short Intake w/ Trans Control & Master Kit (76304) is engineered to streamline LS engine swaps. This comprehensive kit provides all the necessary components for a high-performance fuel injection system, rated for up to 750 horsepower. It features a short cathedral intake manifold, multi-port fuel injection, and an integrated transmission controller for compatible GM transmissions. The kit includes an in-tank fuel pump module, ECU, 102mm throttle body, and 55 lb/hr injectors, ensuring a complete and efficient installation.

KEY FEATURES AND BENEFITS:

• Simplified LS Engine Swaps: A complete fuel injection solution that reduces the complexity of LS engine installations.
• High-Performance Capability: Rated for up to 750 horsepower, suitable for performance-oriented builds.
• Integrated Transmission Control: Allows for adjustments to shift points and firmness on compatible GM transmissions.
• Self-Tuning Functionality: The system adapts to engine conditions, maintaining optimal air/fuel ratios.
• Comprehensive Kit: Includes all necessary components, such as injectors, sensors, wiring harness, and a 4.5-inch display.
• Power Adder Compatibility: Designed to work with boosted and nitrous oxide applications.

SPECIFICATIONS:

• Maximum Horsepower: 750 HP
• Injection Style: Multi-port
• Timing Control: Yes
• Power Adder Compatibility: Boost/Nitrous oxide
• ECU Included: Yes
• Fuel Pump: In-tank, returnless
• Transmission Controller: Yes
• Metering Style: Speed density (MAP-N)
• Intake Material: Aluminum
• Throttle Body: 102mm, GM LS2 4-bolt
• Injector Size: 55 lbs/hr

HOW TO USE:

• Install the intake manifold and throttle body onto the LS engine.
• Mount the in-tank fuel pump module in the fuel tank.
• Connect the injectors and sensors to the wiring harness.
• Install the ECU and connect the 4.5-inch display.
• Connect the transmission controller to the compatible GM transmission.
• Install the oxygen sensor in the exhaust system.
• Connect the MAP, IAT, and TPS sensors.
• Connect the fuel pressure regulator.
• Configure the ECU using the 4.5-inch display.
• Start the engine and allow the self-tuning feature to optimize fuel and timing.

BENEFITS OF USING THE FITEC LS 750HP EFI SHORT INTAKE W/ TRANS CONTROL & MASTER KIT (76304):

• Reduces Complexity: Simplifies LS engine swaps with a complete EFI system.
• Precise Fuel Delivery: Provides accurate fuel delivery and timing control.
• Enhanced Performance: Improves engine performance and responsiveness.
• Adaptability: Offers flexibility for various engine configurations.
• Simplified Fuel System Installation: In-tank pump makes setup easier.
• Transmission Adjustments: Allows user control over transmission performance.
• Complete EFI Kit: All necessary components included for a straightforward installation.

FEATURES:

• Fabricated 3mm Thick Aluminum Intake Manifold: Designed for durability and performance.
• Cast, Cable Activated Billet Aluminum 102mm Throttle Body: Optimized for airflow.
• Handheld Controller: Features a color touchscreen for easy setup and adjustments.
• LS ECU: Provides sequential fuel and spark control.
• 55 lb/hr Injectors: High-volume fuel delivery for performance needs.
• 3-Bar MAP Sensor: Suitable for boosted applications.
• Two Programmable Electric Fan Outputs: For efficient cooling management.
• WBO2 Sensor Included: For precise air-fuel ratio readings.
• Custom Wiring Harness: Ensures direct plug-in installation.
• In-Tank Fuel Pump Module: Includes an internal regulator for consistent fuel pressure.
