Description

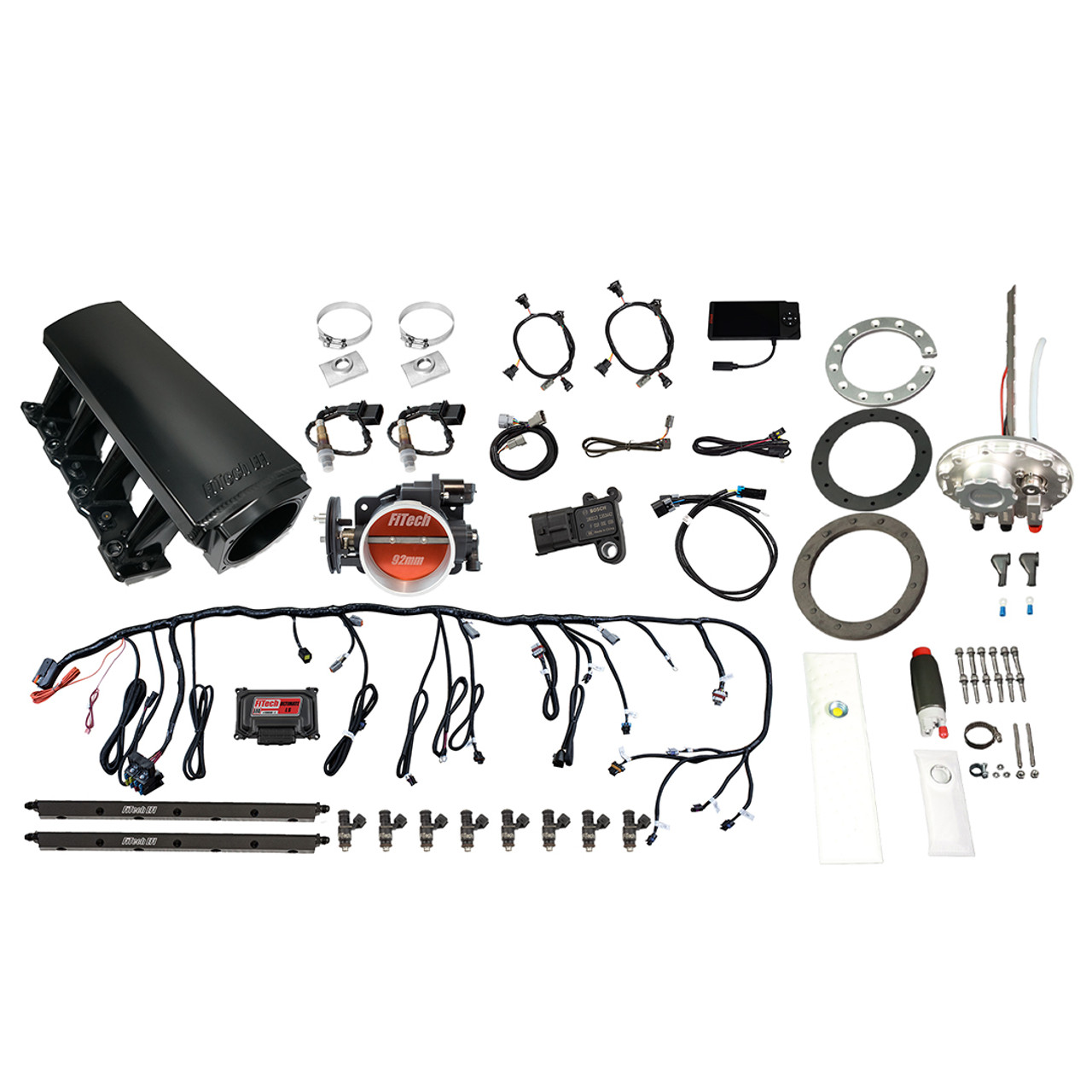

The FiTech LS 500 HP EFI Long Intake w/ Trans Control & Master Kit (76307) is a comprehensive solution for LS engine upgrades. Designed to simplify LS swaps, this kit delivers enhanced performance and drivability. It supports up to 500 horsepower and features a long runner intake manifold for improved low-end torque. The system includes a 92mm throttle body, in-tank fuel pump module, and an ECU with self-tuning capabilities. The 4.5-inch touchscreen controller allows for easy adjustments and monitoring. Transmission control is included for compatible GM transmissions, providing a complete fuel injection solution with fuel rails, injectors, and all necessary sensors.

KEY FEATURES AND BENEFITS:

• Simplified LS Engine Swaps: A complete EFI solution that reduces installation complexity.
• Improved Low-End Torque: Long runner intake manifold enhances engine performance.
• Self-Tuning Capability: ECU automatically adjusts for optimal fuel delivery.
• User-Tunable: Allows for precise adjustments to fuel and spark settings.
• Transmission Control: Facilitates enhanced drivability for compatible GM transmissions.
• Easy-to-Use Display: 4.5-inch touchscreen for straightforward monitoring and adjustments.

SPECIFICATIONS:

• Maximum Horsepower: 500 HP
• Injection Style: Multi-port
• Throttle Body: 92mm, 1250 cfm
• Injectors: 36 lbs/hr
• Fuel Pump: In-tank module, returnless
• ECU: Included, self-tuning
• Transmission Control: Yes (for compatible GM transmissions)
• Display: 4.5-inch touchscreen
• Intake Material: Aluminum
• MAP Sensor: 3 bar
• Fuel Type: Alcohol, Gasoline, Methanol, Flex

HOW TO USE:

• Preparation: Ensure your LS engine is installed and ready for EFI conversion. Drain the fuel tank and prepare for in-tank fuel pump installation.
• Fuel System Installation: Install the in-tank fuel pump module and connect fuel lines, ensuring proper sealing.
• Intake Manifold Installation: Mount the long runner intake manifold and 92mm throttle body onto the engine.
• Sensor Installation: Install all included sensors (O2, MAP, IAT, TPS, IAC) according to the provided instructions.
• Wiring Harness Connection: Connect the wiring harness to the ECU and all sensors, ensuring secure connections.
• ECU Setup: Mount the ECU and connect the 4.5-inch touchscreen controller.
• Initial Calibration: Follow the on-screen prompts on the touchscreen controller for initial setup and self-tuning.
• Fine-Tuning (Optional): Use the touchscreen controller to make adjustments to fuel and spark settings as needed.
• Transmission Control Setup (If Applicable): Configure transmission settings through the touchscreen interface.
• Testing: Start the engine and monitor performance. Make adjustments as needed.

BENEFITS OF USING THE FITEC LS 500 HP EFI LONG INTAKE W/ TRANS CONTROL & MASTER KIT (76307):

• Improved Engine Performance: Enhances low-end torque and overall performance.
• Comprehensive Kit: Includes all necessary components for straightforward installation.
• Intuitive Display: Easy-to-navigate touchscreen for real-time monitoring and adjustments.

FEATURES:

• 3mm Thick TIG Welded Aluminum Intake: Durable construction for long-lasting performance.
• Billet Aluminum 92mm Throttle Body: Cable activated for precise control.
• Sequential Fuel and Spark Control: Provides individual cylinder trim for optimization.
• Compatible with 24x and 58x Cam Sensors: Ensures accurate engine timing.
• Knock Sensor Control: Connects to factory sensors for safety.
• Two Programmable Electric Fan Outputs: For effective cooling management.
• High Volume Billet Fuel Rails: Ensures adequate fuel delivery.
• Custom Wiring Harness: Designed for direct plug-in installation.
