Description

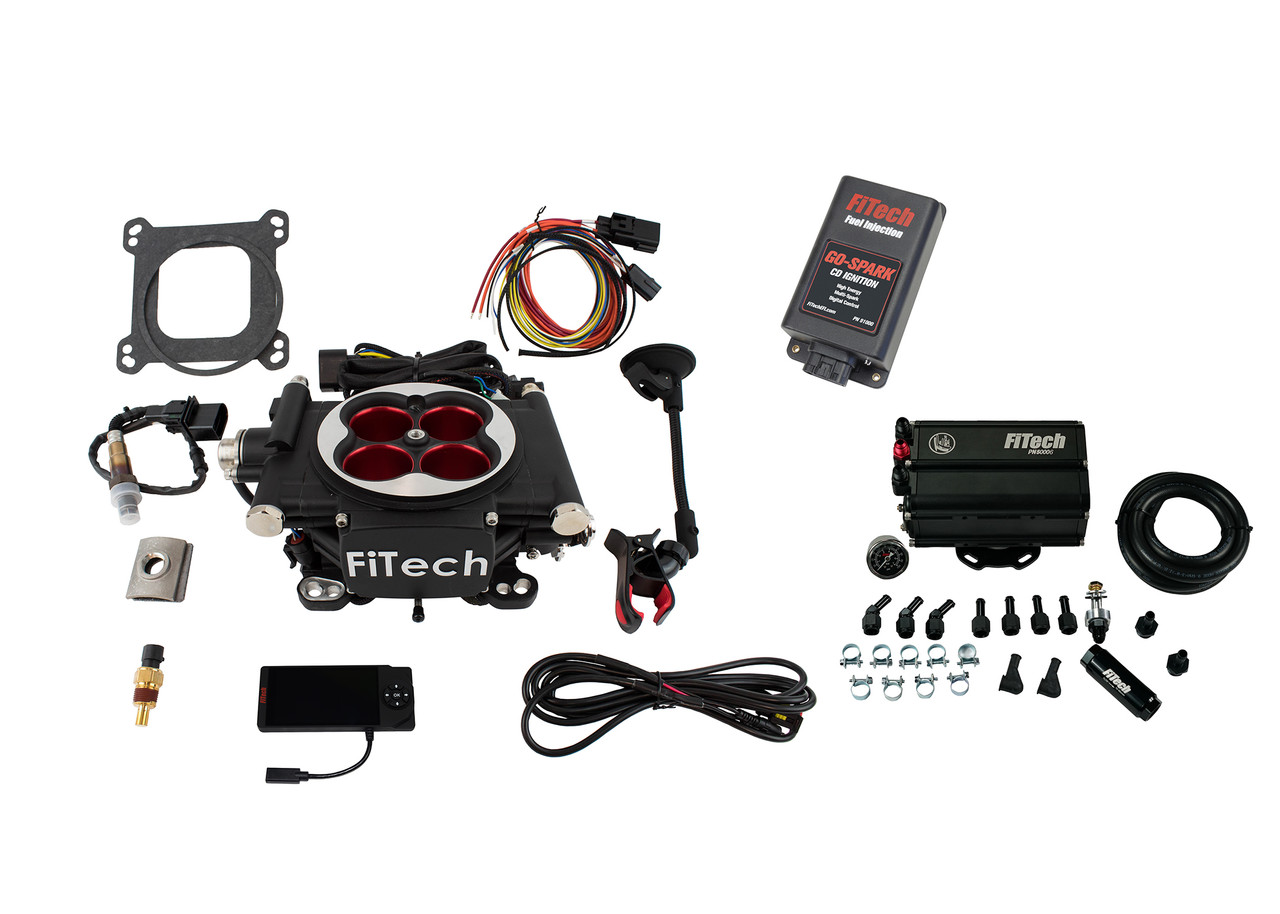

The FiTech EFI 4 600 HP Power Adder Matte Black w/ Force Fuel & CDI (93554) is designed for high-performance engines using power adders. This system provides a direct replacement for 4-barrel carburetors, offering improved fuel delivery and control. Rated for up to 600 horsepower, it supports turbochargers, superchargers, and nitrous oxide systems. The self-tuning feature simplifies installation and setup, while the included Force Fuel system ensures consistent fuel pressure. The Go Spark CDI box enhances ignition control, providing a comprehensive upgrade for demanding applications.

KEY FEATURES AND BENEFITS:

• Self-Tuning Capability: Simplifies installation and tuning for optimal performance.
• Power Adder Compatibility: Designed for engines with turbochargers, superchargers, and nitrous oxide.
• High Horsepower Rating: Supports engines producing up to 600 horsepower.
• Force Fuel System: Ensures consistent fuel pressure for reliable performance.
• Go Spark CDI Box: Provides enhanced ignition control for improved combustion.
• Direct 4-Barrel Replacement: Easily replaces existing 4-barrel carburetors.
• Boost and Nitrous Timing Control: Allows for precise timing adjustments under boost or nitrous conditions.

SPECIFICATIONS:

• Maximum Horsepower: 600 HP
• Injection Style: Throttle body
• Timing Control: Yes
• Power Adder Compatibility: Yes (Boost/Nitrous oxide)
• ECU Included: Yes
• Fuel Pump Included: Yes (External)
• Metering Style: Speed density (MAP-N)
• Throttle Body Mounting Flange: 4-barrel square bore
• Venturi Quantity: 4
• Venturi Diameter: 43.00mm
• Airflow Rate: 850 cfm
• Injector Size: 80 lbs/hr
• Fuel Pump Flow Rating: 340 lph
• MAP Sensor Rating: 2.5 BAR
• Fuel Type: Gasoline, Methanol, Alcohol, Flex
• Compatibility: Fits Chevrolet, Pontiac, Ford, Chrysler, Dodge, Plymouth, and other engines using a 4-barrel intake manifold.

HOW TO USE:

• Remove Existing Carburetor: Detach the current 4-barrel carburetor from the intake manifold.
• Install FiTech Throttle Body: Mount the FiTech throttle body onto the intake manifold using the provided gasket.
• Connect Sensors: Attach the O2 sensor, CTS sensor, MAP sensor, IAT sensor, and TPS sensor to their respective locations.
• Install Force Fuel System: Mount the Force Fuel surge tank and connect the fuel lines to the fuel pump and throttle body.
• Connect Wiring Harness: Connect the wiring harness to the ECU and all necessary sensors and components.
• Install Go Spark CDI Box: Install the CDI box and connect it to the ignition system.
• Connect Handheld Controller: Plug in the handheld controller to the ECU for initial setup and tuning.
• Initial Setup: Use the handheld controller to input engine parameters and initiate the self-tuning process.
• Fine-Tune (Optional): Use the Pro-tuning laptop software for advanced tuning adjustments.

BENEFITS OF USING THE FITECH EFI 4 600 HP POWER ADDER MATTE BLACK W/ FORCE FUEL & CDI (93554):

• Improved Fuel Efficiency: Precise fuel delivery optimizes combustion for better mileage.
• Enhanced Performance: Increases horsepower and torque output significantly.
• Simplified Tuning: Self-tuning feature reduces setup time and complexity.
• Consistent Fuel Delivery: The Force Fuel system ensures stable fuel pressure under all conditions.
• Enhanced Ignition Control: The Go Spark CDI box improves spark timing and strength for better performance.
• Support for High Boost Applications: Designed to handle increased demands from power adders.
• Ability to Control Timing and Fuel with Nitrous: Facilitates effective use of nitrous oxide systems.

FEATURES:

• Annular Swirl Discharge: Provides effective fuel distribution for improved performance.
• Built-in Pressure Regulator: Ensures optimal fuel pressure for the system.
• Dual Fan Control Outputs: For managing engine cooling effectively.
• Matte Black Finish: Stylish and durable coating on the throttle body.
• Handheld Controller Interface: For easy setup and monitoring of engine parameters.
• Pro Tuning Software: Allows for advanced tuning options and adjustments.
• 80 lbs/hr Injectors: Ensures adequate fuel delivery for high-performance applications.
• Includes All Required Sensors: For complete installation and functionality.
