Description

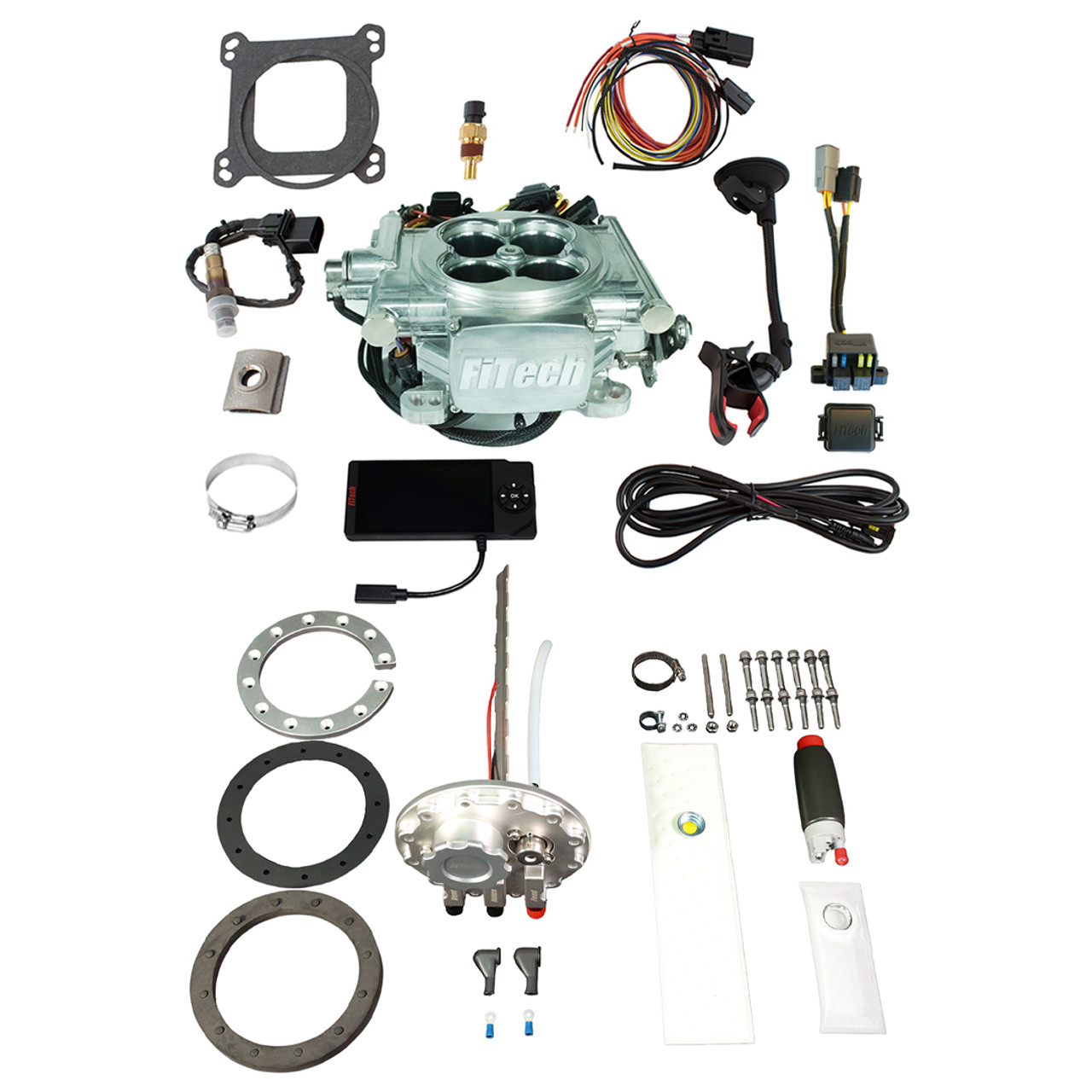

The FiTech EFI 4 600 HP Power Adder Aluminum w/In-Tank Module (36306) offers a comprehensive upgrade for your engine’s fuel management. This kit combines an electronic fuel injection (EFI) system with an in-tank fuel pump module, providing a complete solution for improved performance and reliability. Designed for engines up to 600 horsepower, this system simplifies the transition from carburetors to EFI, offering self-tuning capabilities and user-friendly adjustments.

KEY FEATURES AND BENEFITS:

• Complete Conversion Kit: Includes everything needed for a full EFI conversion.
• Engine Compatibility: Supports 4, 6, and 8-cylinder engines with up to 600 HP, compatible with power adders like turbos and nitrous.
• Self-Tuning ECU: Automatically adjusts fuel and timing for optimal performance.
• Handheld Controller: Allows for on-the-fly adjustments and data logging.
• In-Tank Fuel Pump: Ensures consistent fuel delivery for reliable operation.
• Replaceable Sensors: Utilizes easily replaceable GM-type sensors and Bosch wideband oxygen sensors.

SPECIFICATIONS:

• Maximum Horsepower: 600 HP
• Injection Style: Throttle body
• Timing Control: Yes
• Power Adder Compatible: Yes (Boost/Nitrous oxide)
• ECU Included: Yes
• Fuel Pump: In-tank
• Metering: Speed density (Map-N)
• Throttle Body: 4-barrel square bore, 850 cfm, cast aluminum
• Injectors: 80 lbs./hr.
• Fuel Pump: 340 LPH, 58-psi regulator

HOW TO USE:

1. Install the in-tank fuel pump module into your fuel tank or fuel cell.
2. Mount the FiTech throttle body onto your 4-barrel intake manifold.
3. Connect the wiring harness to the appropriate sensors and power sources.
4. Install the oxygen sensor into the exhaust system.
5. Connect the handheld controller and follow the on-screen instructions for initial setup.
6. Start the engine and allow the system to self-learn and adjust fuel and timing parameters.
7. Use the handheld controller to monitor and fine-tune settings as needed.

BENEFITS OF USING THE FITECH EFI 4 600 HP POWER ADDER ALUMINUM W/ IN-TANK MODULE (36306):

• Improved Performance: Increases horsepower and torque for enhanced engine performance.
• Enhanced Fuel Efficiency: Provides precise fuel delivery for better fuel efficiency.
• Simplified Tuning: Self-learning capabilities simplify the tuning process.
• Consistent Fuel Delivery: Ensures reliable fuel pressure and delivery from the in-tank pump.
• Easy Monitoring: Facilitates easy monitoring and adjustment through the handheld controller.
• Reduced Fuel Issues: Minimizes the risk of fuel-related problems.

FEATURES:

• Internal MAP Sensor: For accurate readings and adjustments.
• Fan Control: Adjustable fan control switches for effective cooling management.
• A/C Idle Speed Input: Ensures stable idle when air conditioning is in use.
• Secure Connections: Uses -06 AN fuel inlet fittings for reliable connections.
• Diagnostic Readouts: OBD II fault code readouts for easy diagnostics.
• Atomization Technology: Wet flow swirl spray for improved fuel atomization.
• Fuel Type Versatility: Compatible with Alcohol, Gasoline, Methanol, and Flex fuels.
• Fuel Pump Module: Features a 2” fuel fill built into the fuel pump module.
