Description

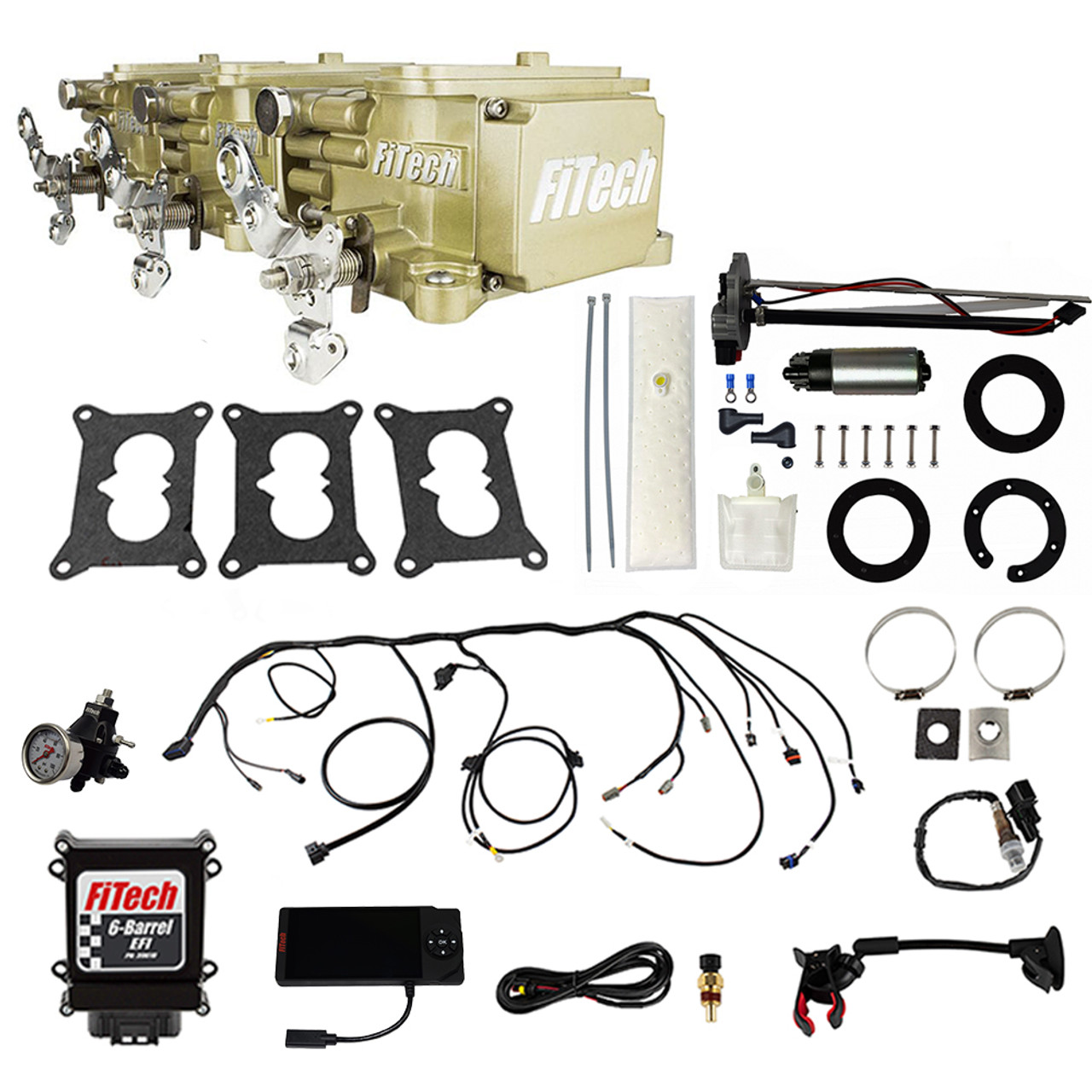

The FiTech EFI 3×2 Tri Power 600 HP Gold w/ In-Tank & Regulator (36132) is a comprehensive electronic fuel injection (EFI) system designed for high-performance engines. This kit provides a complete solution for converting to EFI, offering improved performance and fuel versatility. Featuring a high-flow 1500 CFM throttle body and 80 lbs/hr injectors, it supports up to 600 horsepower. The system is compatible with various fuels, including alcohol, gasoline, methanol, and flex fuel. Utilizing speed density (MAP-N) metering, it ensures accurate fuel delivery. The kit includes all necessary components, such as an ECU, sensors, in-tank fuel pump, and a user-friendly touchscreen display.

KEY FEATURES AND BENEFITS:

• High-Flow Throttle Body: The triple Holley 2-barrel throttle body with 1500 CFM provides substantial airflow for high-performance applications.
• High-Capacity Fueling: 80 lbs/hr injectors and an included in-tank fuel pump support engines up to 600 horsepower.
• Multi-Fuel Compatibility: Versatile fuel support for alcohol, gasoline, methanol, and flex fuel.
• Speed Density Metering: Accurate fuel delivery using MAP-N (speed density) metering.
• Complete Kit: Includes ECU, wiring harness, sensors (MAP, IAT, TPS), and a touchscreen display.
• Self Tuning: The ECU has self-learning capabilities to tune the engine.
• Timing Control Compatible: Able to control engine timing.

SPECIFICATIONS:

• Maximum Horsepower: 600 HP
• Injection Style: Throttle body
• Metering Style: Speed density (MAP-N)
• Throttle Body: Triple Holley 2-barrel, 1500 CFM
• Injector Size: 80 lbs/hr
• Fuel Compatibility: Alcohol, gasoline, methanol, flex fuel
• Fuel Pump: In-tank
• ECU: Included
• Sensors: MAP, IAT, TPS, Oxygen
• Timing Control: Yes
• Power Adder: No
• Transmission Control: No

HOW TO USE:

• Install the Intake Manifold: Mount the provided Ultra Ram intake manifold onto your LS engine.
• Mount the Throttle Body: Attach the triple Holley 2-barrel throttle body to the intake manifold.
• Install Fuel Rails and Injectors: Secure the fuel rails and insert the 80 lbs/hr injectors.
• Install the Fuel Pump: Place the in-tank fuel pump into your fuel tank.
• Connect Wiring Harness: Route and connect the wiring harness to the ECU and sensors.
• Install Sensors: Mount the MAP, IAT, TPS, and oxygen sensors.
• Connect Touchscreen Display: Connect the touchscreen display to the ECU.
• Initial Setup: Power on the system and use the touchscreen to configure basic settings.
• Start and Self-Tune: Start the engine and allow the ECU to self-tune.
• Fine-Tune (Optional): Use the touchscreen to make any necessary fine-tuning adjustments.

BENEFITS OF USING THE FITECH EFI 3×2 TRI POWER 600 HP GOLD W/ IN-TANK & REGULATOR (36132):

• Improved Engine Performance: Experience enhanced horsepower and torque.
• Fuel Efficiency: Precise fuel delivery optimizes fuel consumption.
• Versatile Fuel Options: Run various fuels without major modifications.
• Simplified Installation: Complete kit and self-tuning capabilities streamline the process.
• User-Friendly Interface: The touchscreen display makes adjustments easy.
• Improved engine drivability.

FEATURES:

• Triple Holley 2-barrel throttle body design.
• 80 lbs/hr high-flow fuel injectors.
• In-tank fuel pump and fuel pressure regulator.
• 4.5-inch color touchscreen display.
• Comprehensive sensor suite (MAP, IAT, TPS, Oxygen).
• ECU with self-tuning capabilities.
• Universal compatibility for various applications.
• Supports speed density (MAP-N) fuel metering.
• Gold finish cast aluminum throttle body.
• 1500 CFM airflow rate.
