Description

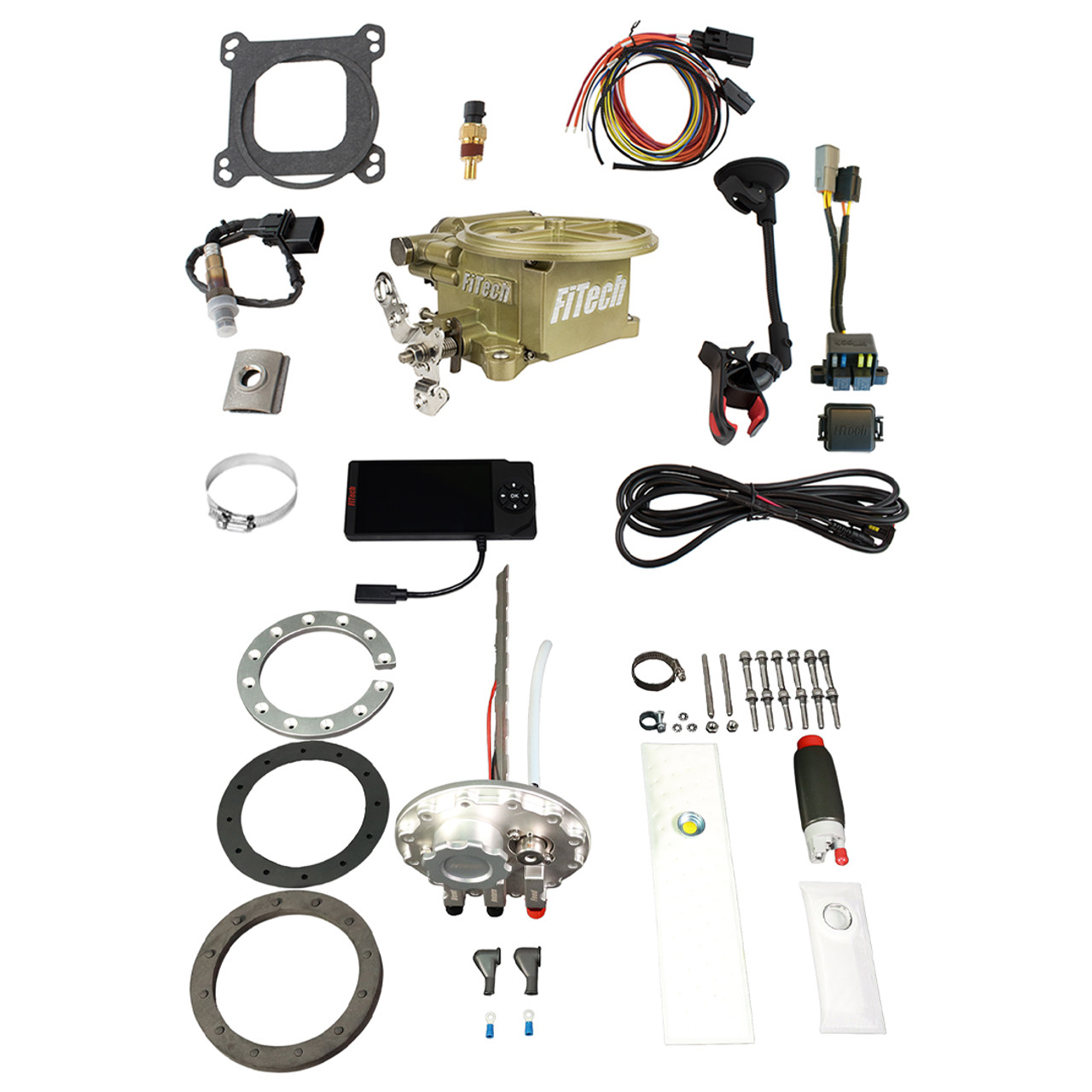

The FiTech EFI 2 Barrel 400 HP Classic Gold w/ In-Tank Module (36300) provides a direct replacement for carburetor setups, offering electronic fuel injection for engines up to 400 horsepower. This throttle body injection system includes all necessary components for a comprehensive upgrade, enhancing engine performance and fuel efficiency.

KEY FEATURES AND BENEFITS:

• High Performance: Features a 500 CFM throttle body with 62 lbs/hr injectors, designed to fit Holley 2-barrel intake manifolds.
• Complete System: Includes an in-tank fuel pump, ECU, wiring harness, and all required sensors (MAP, IAT, TPS, Oxygen).
• Easy Tuning: The handheld calibration module allows for easy tuning and adjustments.
• Fuel Compatibility: Compatible with gasoline, alcohol, and methanol fuels, and supports timing control.

SPECIFICATIONS:

• Maximum Horsepower: 400 HP
• Injection Style: Throttle body
• Timing Control: Yes
• ECU Included: Yes
• Fuel Pump Included: Yes (in-tank)
• Metering Style: Speed density (MAP-N)
• Throttle Body Mounting Flange: Holley 2-barrel
• Airflow Rate: 500 CFM
• Injector Size: 62 lbs/hr
• Fuel Compatibility: Gasoline, Alcohol, Methanol, Flex

HOW TO USE:

1. Preparation: Remove existing carburetor and related components.
2. Installation: Mount the FiTech throttle body onto the intake manifold.
3. Fuel System: Install the in-tank fuel pump and connect fuel lines to the throttle body.
4. Wiring: Connect the wiring harness to the ECU and engine sensors (MAP, IAT, TPS, Oxygen).
5. Sensor Installation: Mount the included sensors in their correct locations.
6. ECU Mounting: Secure the ECU in a suitable location.
7. Initial Setup: Connect the handheld calibration module and follow the on-screen prompts for initial setup.
8. Tuning: Use the handheld module to adjust fuel and timing settings as needed.
9. Testing: Start the engine and verify proper operation and sensor readings.
10. Fine Tuning: Drive the vehicle and make necessary adjustments to optimize performance.

BENEFITS OF USING THE FITECH EFI 2 BARREL 400 HP CLASSIC GOLD W/ IN-TANK MODULE (36300):

• Improved Fuel Efficiency: Offers better fuel efficiency compared to traditional carburetors.
• Enhanced Performance: Delivers improved engine performance and throttle response.
• Easy Adjustments: Facilitates easy tuning and adjustments with the handheld calibration module.
• Consistent Performance: Ensures consistent performance across varying temperatures and altitudes.
• Simplified Installation: Includes all components like the in-tank fuel pump for straightforward installation.
• Reliable Mapping: Utilizes reliable speed density mapping.

FEATURES:

• Gold Finish: Cast aluminum throttle body with a gold finish.
• Venturis: Dual 44mm venturis for optimal airflow.
• Integrated Regulator: Integrated fuel pressure regulator for consistent fuel delivery.
• Simplified Connections: Pre-terminated wiring harness for simplified connections.
• Real-Time Data: Real-time data display on the handheld controller.
• Multiple Fuel Types: Ability to run multiple fuel types seamlessly.
• Direct Replacement: Designed for direct replacement of 2-barrel Holley carburetors.
