Description

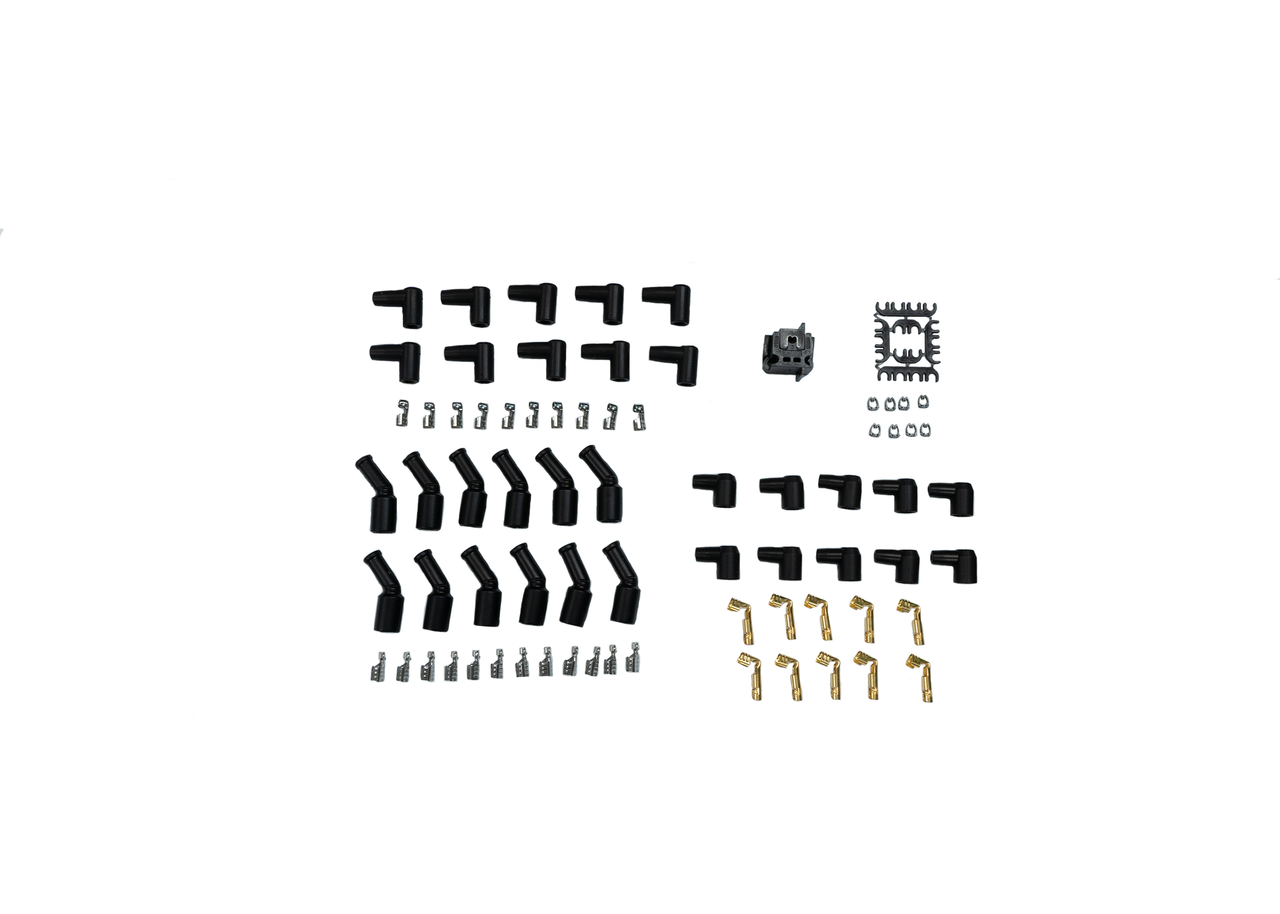

The FiTech 8mm Universal SBC/BBC 45 Deg Spark Plug Wire Kit (90023) is designed to provide reliable and efficient ignition for Small Block Chevy (SBC) and Big Block Chevy (BBC) engines. This kit features 8mm ceramic spark plug boots for high temperature resistance, spiral core wires for RFI suppression, and components for custom fitment. It’s built for those who require consistent performance in demanding engine applications.

KEY FEATURES AND BENEFITS:

• High Temperature Resistance: Ceramic spark plug boots withstand up to 2,000 degrees F, suitable for engines with close-tolerance headers.
• RFI/EMI Suppression: Spiral core wires minimize radio frequency and electromagnetic interference, ensuring clean ignition signals.
• Customizable Fit: Includes unterminated wires, boots, and terminals for precise fitting to various engine configurations.
• Reliable Connections: Stainless steel spark plug terminals provide secure and consistent electrical conductivity.
• Comprehensive Kit: Includes crimping tool, wire separators, and numbered labels for easy installation.

SPECIFICATIONS:

• Wire Diameter: 8mm
• Conductor Type: Spiral core
• Boot Material: Ceramic (spark plug), Silicone (distributor)
• Terminal Material: Stainless steel
• Resistance: 350 Ohms/Ft
• Application: Chevy/GM engines (SBC/BBC)
• Distributor Terminal Type: Male (HEI) and Female (Socket)
• Spark Plug Boot Ends: 45/135 degree
• Compatibility: Small Block Chevy (SBC) and Big Block Chevy (BBC) engines.

HOW TO USE:

• Begin by disconnecting the negative terminal of your vehicle’s battery.
• Carefully remove the old spark plug wires from the spark plugs and distributor.
• For pre-terminated wires, install them directly onto the spark plugs and distributor, ensuring a secure fit.
• For custom fitment, measure the required wire length and cut the unterminated wires to size.
• Using the provided crimping tool, attach the appropriate boots and terminals to the cut wires.
• Apply dielectric grease to the inside of the boots to prevent corrosion and improve conductivity.
• Connect the new spark plug wires to the spark plugs and distributor, following the engine’s firing order.
• Secure the wires using the included wire separators and numbered labels.
• Reconnect the vehicle’s battery and start the engine to verify proper ignition.

BENEFITS OF USING THE FITECH 8MM UNIVERSAL SBC/BBC 45 DEG SPARK PLUG WIRE KIT (90023):

• Improved engine performance through consistent and reliable ignition.
• Reduced risk of ignition failure due to high temperatures or interference.
• Increased longevity of ignition components in demanding engine environments.
• Simplified installation with customizable fitment options and included tools.
• Provides a professional looking install.

FEATURES:

• Double silicone insulation rated for 600+ degrees F.
• Ferro-Spiral core for low resistance and high noise suppression.
• Includes extra 60 inch wires with 135 degree spark plug ends.
• Includes 55 inch unterminated wire.
• Contains boots and terminals for HEI, LS coil, and female style distributors.
• Includes wire cutter/stripper tool.
• Numbered wire cylinder label tag/clip included.
• Dielectric grease packet.
