Description

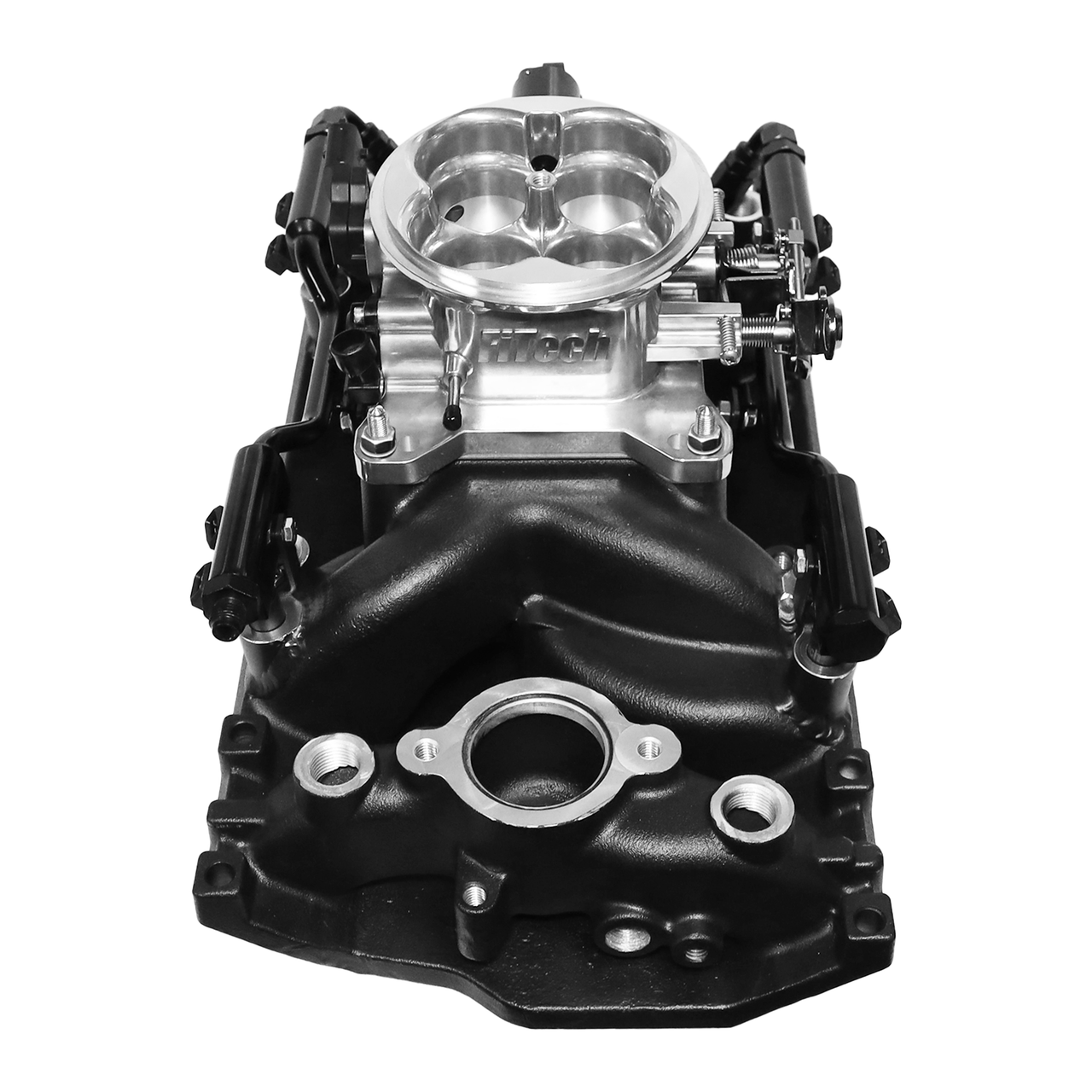

The FiTech 750HP Vortec EFI 4150 Flange Ultra Brilliant TMAP (30-21-610) is a comprehensive solution designed to modernize and significantly improve the performance of small block Chevrolet engines. This multi-port fuel injection system replaces traditional 4-barrel carburetors, offering enhanced fuel delivery, better throttle response, and the capability to support up to 750 horsepower. Engineered for gasoline and E85 fuels, this kit provides a blend of high-performance potential and user-friendly features, making it an excellent choice for enthusiasts looking to upgrade their engine’s fuel management. The system includes an ECU, injectors, fuel rails, and a handheld controller for easy setup and monitoring.

KEY FEATURES AND BENEFITS:

• High Horsepower Capability: Rated to support up to 750 horsepower, making it suitable for a wide range of performance applications.
• Multi-Port Fuel Injection: Delivers fuel directly to each cylinder’s intake port, resulting in more precise fuel metering and improved combustion efficiency compared to throttle body injection or carburetors.
• Compatibility with Vortec Heads: Specifically designed for small block Chevy engines utilizing Vortec cylinder heads, ensuring proper fitment and performance.
• Self-Learning Functionality: The system features self-learning software that adapts to your engine’s characteristics and driving style, simplifying the initial setup process.
• User Tunable: While self-learning, the system also allows for manual adjustments, providing flexibility for fine-tuning performance.
• Comprehensive Kit: Includes essential components such as the ECU, fuel injectors, fuel rails, wiring harness, and sensors, providing a complete solution for the conversion to EFI.
• Handheld Controller: Comes with a 4.5-inch touchscreen display for easy setup, monitoring of engine parameters, and making adjustments to the system.
• Versatile Fuel Compatibility: Capable of running on both gasoline and E85 fuels, offering flexibility in fuel choice.

SPECIFICATIONS:

• Part Number: 30-21-610
• Product Line: Ultra Port EFI SBC Systems
• Engine Type: Chevrolet Small Block with Vortec Heads
• Fuel Type: Gasoline, E85
• Maximum Horsepower with Gas: 750 HP
• Fuel Injection Style: Multi-port
• Fuel Injection System Type: Single 4-Barrel Throttle Body (4150 Flange)
• Timing Control Compatible: Yes
• ECM Included: Yes
• Self Tuning: Yes
• User Tunable: Yes
• Fuel System Included: No
• Ignition System Included: No
• Power Distribution Included: No
• User Interface Included: 4.5 in. display
• EGR: No
• Transmission Controller Included: No
• Metering Style: Speed density
• Intake Material: Aluminum
• Intake Color: Black
• Engine Block Deck Height: Standard deck
• Multi-Port Fuel Rails Included: Yes
• Throttle Body Included: Yes
• Throttle Body Mounting Flange: 4-barrel square bore
• Venturi Quantity: 4
• Venturi Diameter (mm): 44.00mm
• Throttle Body Material: Cast aluminum
• Throttle Body Color: Polished
• Injectors Included: Yes
• Calibration Module Included: Yes
• Wiring Harness Included: Yes
• Oxygen Sensor Included: Yes
• Fuel Pressure Regulator Included: No
• MAP Sensor Included: Yes
• IAT Sensor Included: Yes
• TPS Sensor Included: Yes
• IAC Motor Included: Yes
• Compatibility: Small Block Chevrolet engines with Vortec cylinder heads.

HOW TO USE:

• Preparation: Disconnect the negative battery terminal. Remove the existing carburetor and intake manifold from your engine. Clean the engine block surface thoroughly.
• Intake Manifold Installation: Install the FiTech intake manifold onto the engine block, ensuring proper gasket placement and torque specifications.
• Throttle Body and Fuel Rail Installation: Mount the FiTech throttle body onto the intake manifold. Install the fuel rails and injectors onto the intake manifold, connecting the fuel lines as per the manual.
• Sensor Installation: Install the included oxygen sensor into the exhaust system, as well as the MAP (Manifold Absolute Pressure) and IAT (Intake Air Temperature) sensors in their designated locations.
• ECU Mounting and Wiring: Mount the ECU in a suitable location away from heat and vibration. Connect the wiring harness to the ECU, sensors, injectors, and other necessary components, following the wiring diagram provided.
• Handheld Controller Connection: Connect the handheld controller to the ECU using the provided cable.
• Initial Setup via Handheld Controller: Turn on the ignition (without starting the engine) and use the handheld controller to input basic engine parameters such as engine size, number of cylinders, and fuel type.
• Fuel System Setup (Separate): Install a suitable high-pressure fuel pump, fuel lines, and fuel pressure regulator (not included in the kit) according to the manufacturer’s instructions. Ensure the fuel system is properly primed and checked for leaks.
• First Start and Self-Learning: Start the engine and allow it to run. The self-learning function will begin to adjust fuel trims based on the oxygen sensor readings. Monitor engine parameters on the handheld controller.
• Fine-Tuning (Optional): After the self-learning process has had time to adapt, you can use the handheld controller to make further adjustments to fuel curves, idle settings, and other parameters if desired.

BENEFITS OF USING THE FITECH 750HP VORTEC EFI 4150 FLANGE ULTRA BRILLIANT TMAP (30-21-610):

• Improved Fuel Efficiency: Precise fuel metering of multi-port injection can lead to better fuel economy compared to a carburetor.
• Enhanced Throttle Response: Electronic fuel injection provides quicker and more precise control over fuel delivery, resulting in improved throttle response and drivability.
• Consistent Performance: EFI systems are less susceptible to changes in altitude and temperature compared to carburetors, providing more consistent performance in varying conditions.
• Increased Horsepower Potential: The system is designed to support up to 750 horsepower, allowing for significant performance gains.
• Modern Technology: Brings modern fuel management technology to older engines, improving overall performance and reliability.
• Easier Starting: EFI systems typically offer easier and more reliable starting, especially in cold weather.
• Cleaner Emissions: More efficient combustion can result in lower emissions compared to carbureted engines (though this system is primarily for non-emissions controlled vehicles).

FEATURES:

• Optimized Fuel Delivery: Multi-port injection ensures precise fuel delivery to each cylinder for maximum efficiency.
• Advanced ECU Control: The standalone ECU provides sophisticated control over fuel and timing (if timing control is implemented).
• Intuitive Handheld Interface: The 4.5-inch touchscreen allows for straightforward setup, monitoring, and adjustments.
• Durable Aluminum Construction: The intake manifold and throttle body are made from cast aluminum for strength and durability.
• Polished Throttle Body Finish: Offers a visually appealing look under the hood.
• Direct Bolt-On Replacement: Designed to replace a standard 4-barrel carburetor using a 4150 flange.
• Comprehensive Sensor Integration: Includes essential sensors for accurate engine management.
