Description

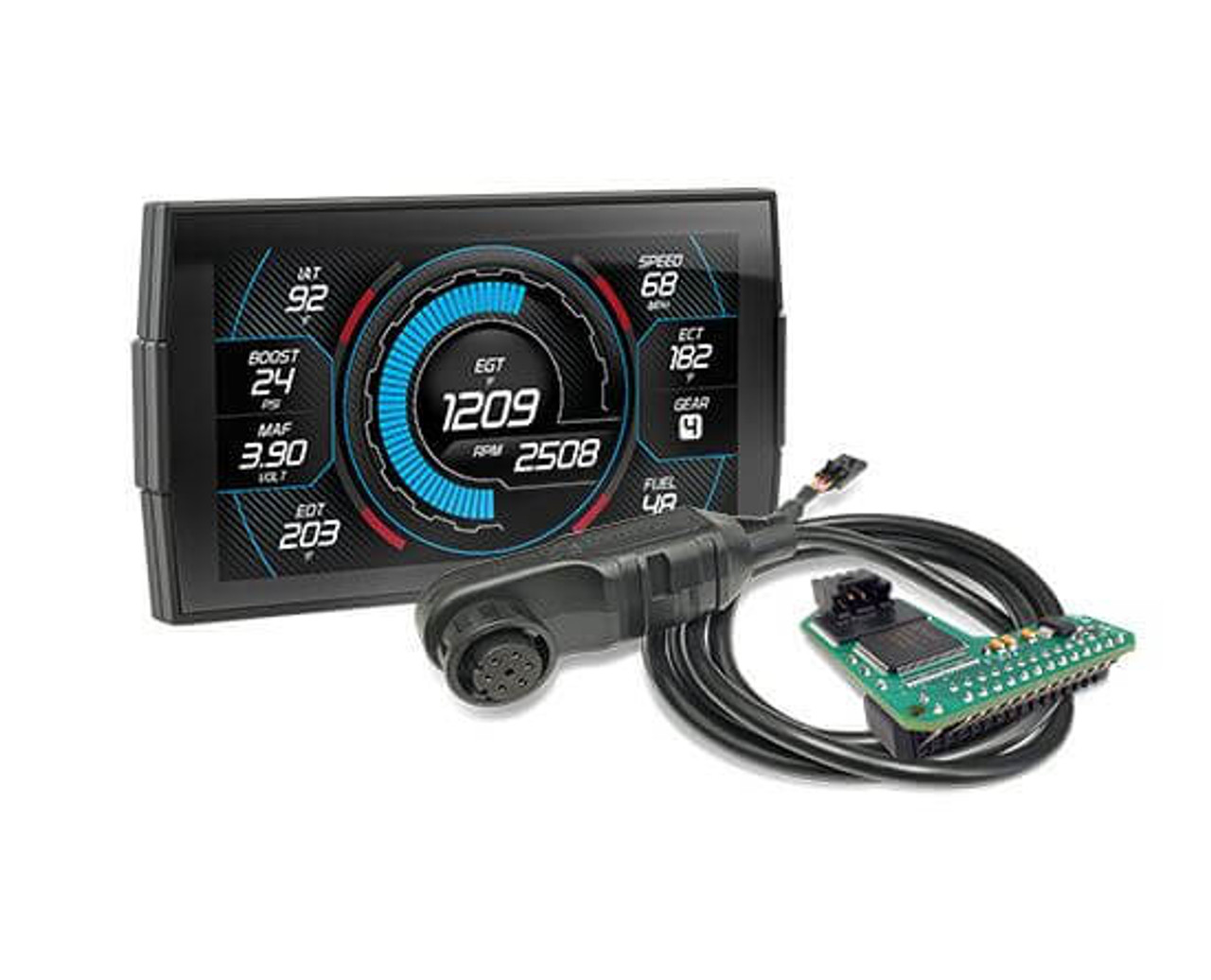

The Edge ’99 Ford 7.3L Manual AWA4 Revolver Kit w/ Insight CTS3 (14104-3) is designed to enhance the performance of 1999 Ford 7.3L Power Stroke diesel engines. This integrated system combines a powerful performance chip with the advanced Insight CTS3 display for comprehensive engine control and monitoring.

KEY FEATURES AND BENEFITS:

• Increased Performance: Achieve up to 140 horsepower and 250 lb-ft of torque gains.
• Adjustable Power Levels: Select from six different power settings to suit your driving needs and conditions.
• Real-time Monitoring: Monitor critical engine parameters such as boost pressure, EGT, fuel pressure, and more.
• Shift-on-the-Fly Adjustments: Easily change power levels while driving using the CTS3 touchscreen.
• Diagnostic Capabilities: Read and clear diagnostic trouble codes (DTCs) for quick troubleshooting.
• User-Friendly Interface: The Insight CTS3 features a large, color touchscreen with an intuitive interface.
• Data Logging: Record and analyze driving data for performance analysis and optimization.

SPECIFICATIONS:

• Engine Compatibility: 1999 Ford 7.3L Power Stroke diesel engines
• Power Gains: Up to 140 horsepower and 250 lb-ft of torque
• Power Levels: Six adjustable power levels
• Display: Insight CTS3 with touchscreen interface
• Emissions Compliance: 50-State Compliant D-541-18

HOW TO USE:

1. Installation: Install the Revolver chip according to the provided instructions.
2. Connect CTS3: Connect the Insight CTS3 to the vehicle’s diagnostic port (OBD-II).
3. Power On: Turn on the vehicle and the CTS3.
4. Adjust Settings: Access the tuning settings menu on the CTS3 touchscreen.
5. Select Power Level: Choose the desired power level from the available options.
6. Monitor Performance: Observe engine parameters on the CTS3 display during driving.
7. Adjust as Needed: Modify power levels as required for different driving conditions.

BENEFITS OF USING EDGE ’99 FORD 7.3L MANUAL AWA4 REVOLVER KIT W/ INSIGHT CTS3 (14104-3):

• Improved Acceleration: Experience quicker acceleration and more responsive throttle response.
• Increased Towing Capacity: Enhance towing power and improve performance when hauling heavy loads.
• Enhanced Drivability: Enjoy a more enjoyable driving experience with increased power and responsiveness.
• Improved Fuel Economy: Depending on driving habits and power level selection, fuel efficiency may be improved.
• Data-Driven Decisions: Utilize performance data and diagnostic information to optimize engine performance and identify potential issues.

FEATURES:

• Large, Color Touchscreen Display: With intuitive interface.
• Customizable Display Layouts and Backgrounds.
• Built-in Performance Meter: For tracking 0-60 mph and 1/4-mile times.
• Reads and Clears Diagnostic Trouble Codes (DTCs).
• Auto-Dimming Screen: For reduced glare at night.
• 50-State Emissions Compliant.
