Description

THIS KIT ALLOWS THE INSTALLER SEVERAL HEIGHT OPTIONS FOR ONE ECONOMIC PRICE. 3.5” SPINDLES ONLY, SPINDLES AND 1” COILOVER SPACER FOR 4.5 INCHES OF LIFT TO CLEAR 33” TIRES OR SPINDLES AND TWO SPACERS FOR 5.5 INCHES OF LIFT TO CLEAR 35” TIRES (ON AN 8″ WIDE WHEEL)

CSS-C1-9 KIT FEATURES
LIFT SPINDLES ARE CONSTRUCTED OF PRECISION LASER CUT 1/4″ STEEL, CNC MACHINED BALL JOINT TAPERS, AND COMPLETELY MIG WELDED.
ENGINEERED, DESIGNED & FABRICATED IN HOUSE BY CST.
2 PAIRS OF SPACERS INCLUDED IN KIT TO PROVIDE THREE LIFT HEIGHT OPTIONS.
STEEL BRAIDED D.O.T. APPROVED BRAKE LINES INCLUDED IN KIT.
O.E.M. HANDLING & RIDE QUALITY.
MINIMAL TRAC-WIDTH CHANGES.
IMPROVED GROUND CLEARANCE.
ALL MADE IN THE U.S.A.!

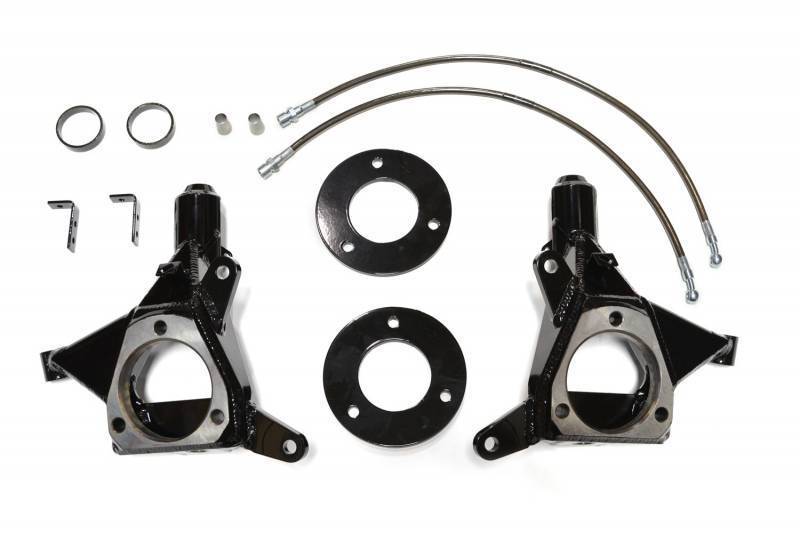

CSS-C1-9 INCLUDES FABRICATED 3.5″ LIFT SPINDLES, 2 SETS OF SPACERS, STEEL BRAIDED BRAKE LINES AND NECCESSARY INSTALL HARDWARE. THE CSS-C1-9 SPINDLE LIFT KIT WILL LIFT THE FRONT END ONLY, 5.5″ AND SIT HIGH IN THE FRONT IF YOU USE ALL PARTS INCLUDED IN THE CSS-C1-9 BOX.

ADDITIONAL OPTIONS
CSB-C14-3 | 3″ FABRICATED LIFT BLOCKS (PICKUP REAR)
CSU-C15-10.5 | 10.5″ U-BOLTS (PICKUP REAR)
CSR-3500 | 2-3″ CST DIRT SERIES 2.5 EXTENDED TRAVEL COIL-OVERS
CSA-5530 | CST DIRT SERIES 2.0 REAR SHOCK (PICKUP REAR ONLY)
CSA-6530 | CST DIRT SERIES 2.0 REAR SHOCK w/ RES. (PICKUP REAR ONLY)
CSS-C2-12 | DIRT-SERIES UCA KIT W/ 1″ UNI-BALLS (CST TAPER)
CSS-C2-15 | DIRT-SERIES UCA KIT W/ 1″ UNI-BALLS (O.E. TAPER)

SUGGESTED WHEEL & TIRE SIZES
2007-2015 1500 2WD
32” x12.5” OR SIMILAR ON 8” WIDE WHEELS (3.5” LIFT)
33” x12.5” OR SIMILAR ON 9” WIDE WHEELS (4.5” LIFT)
315 / 70 / 17 ON 8 OR 9” WIDE WHEELS (5.5” LIFT)
35” X12.5” ON 8-8.5” WIDE WHEELS (TRIMMING REQUIRED & 5.5” LIFT)

ANYTHING LARGER, TALLER OR WIDER IS BEYOND CST RECOMMENDATIONS AND UP TO THE INSTALLER.
MAXIMUM BACKSPACING IS 5”
