Description

CST PERFORMANCE SUSPENSION is proud to announce our 4.5″ Suspension System for the 19-22 GM 1500 2wd/4wd trucks.
*MUST RUN 20″ WHEELS*

This all new CSS-C3-25 kit will provide superior performance on and off road. Sub frames are designed to give you the most ground clearance and protect vital front suspension compents. Laser cut and machined knuckles provide strength and durability.

CST Performance Suspension products are designed and manufactured in the USA to the highest standards for quality, performance, and durability.

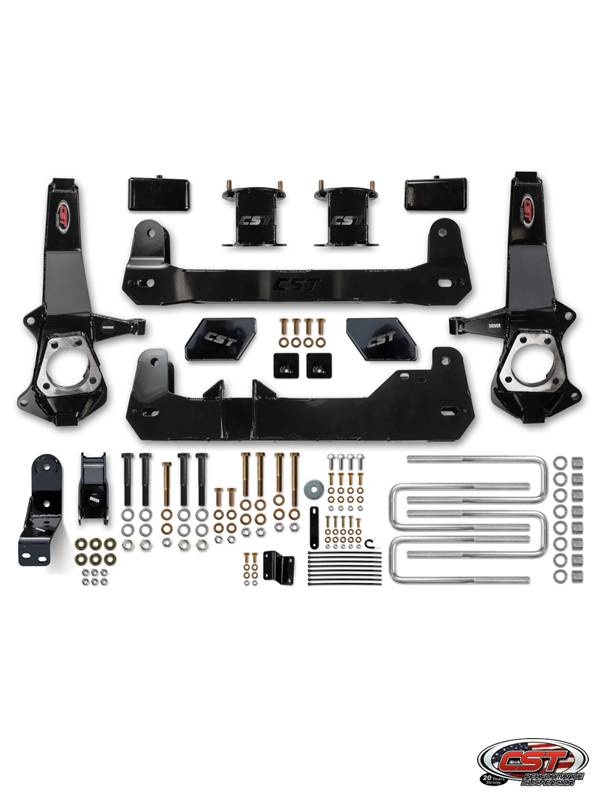

Kit Features:
High Clearance Sub Frames
Fabricated Knuckles
Sway Bar Drops
Front Diff Drops
ABS Drop Brackets
Front Coilover Spacers

Kit Options
CSS-C2-18 Uni Ball Upper Control Arms
CSA-5533 DIRT Series rear 2.0 Emulsion Shocks
CSA-6533 DIRT Series Rear 2.0 Remote Reservoir Shocks
CSA-7506 PRO Series Rear 2.5 Piggyback with Adjuster Shocks

Wheel and Tire Fitment
Fits 35″ tire minor trimming (based on 20×9 w/5″ backspacing)
Fits 33-34 tire with no trimming (based on 20×9 w/5″ backspacing)
5″ max backspacing
Must run 20″ or larger wheel

Fits 35″ tire no trimming (based on 20×9 w/5″ backspacing)
Fits 37″ with minor trimming
5″ max backspacing

Must run 20″ or larger wheel
