Description

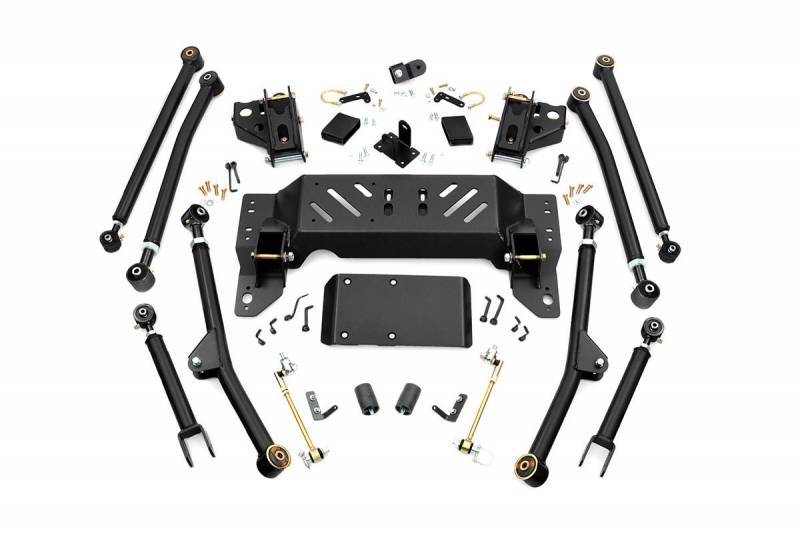

Boasting some impressive features, the ZJ Longarm Kit is a comprehensive package including everything needed for a great suspension lift while maintaining the vehicle’s crucial center of gravity. The kit includes adjustable high-clearance X-Flex upper and lower control arms with Clevite bushings, featuring X-Flex joints. This lift kit features high-clearance components with a front y-link and rear 4-link control arm design. This promotes extreme axle flex while keeping pinion angles optimized.

FEATURES
Aggressive appearance
Increased ground clearance
HD 0.25" thick crossmember
Lower control arms feature high clearance design
Extreme travel long arms keep optimum alignment and give optimum articulation.
X-Flex control arm features:
Clevite brand OEM style rubber bushings.
Flex joints feature a massive 2.5" diameter body and 1.25" thread.
Fully greasable.
Upper joints pivot up to 20 degrees.
Lower joints pivot up to 35 degrees.

NOTES – IMPORTANT
Does NOT fit AWD models.
Transfer case skid plate will NOT fit models equipped with 249 transfer case.
Exhaust will have to be cut and rerouted to make sure it is away from the moving components.
Models equipped with a CV style front driveshaft may result in driveshaft vibration. If this occurs, replacing the driveshaft, axle yoke and / or transfer case yoke will need to be performed to rid the vehicle of driveline vibration.
CV Driveshaft Example

SPECS
SKU 90200U
Est. Install Time 8-9 hours
